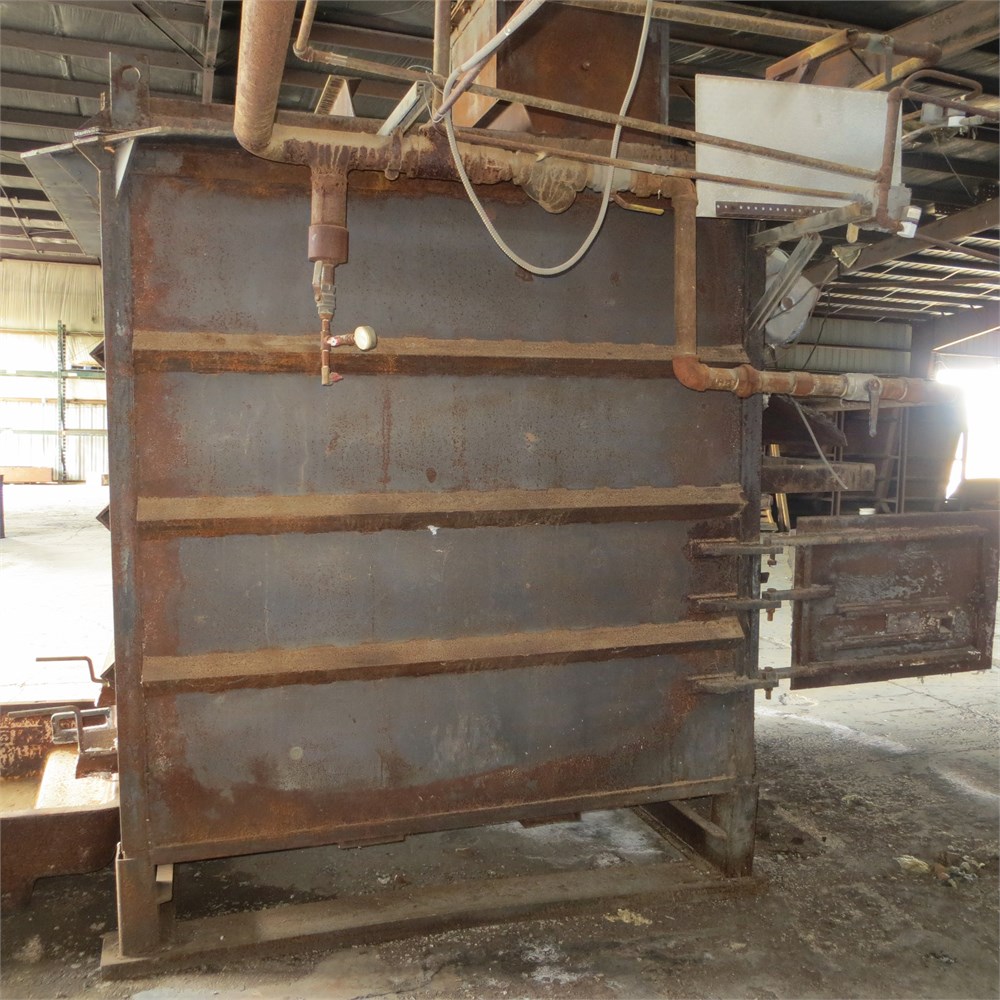

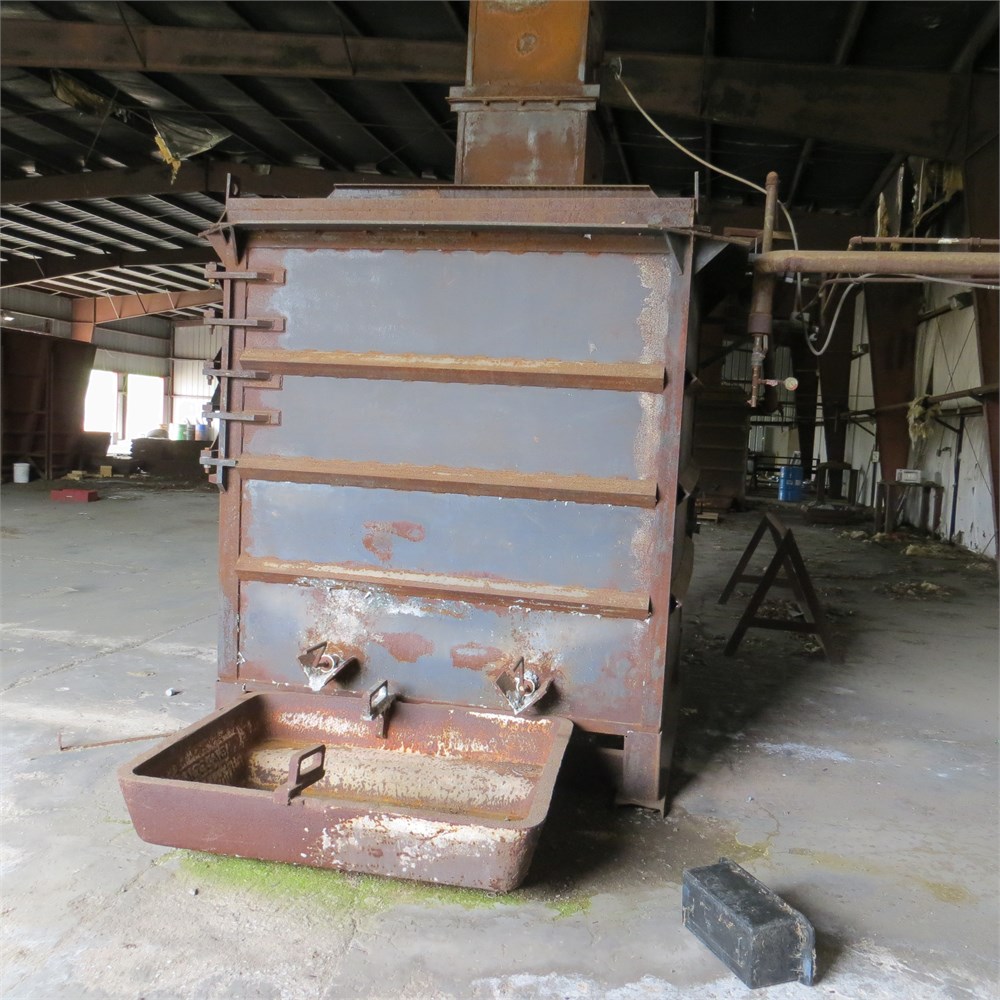

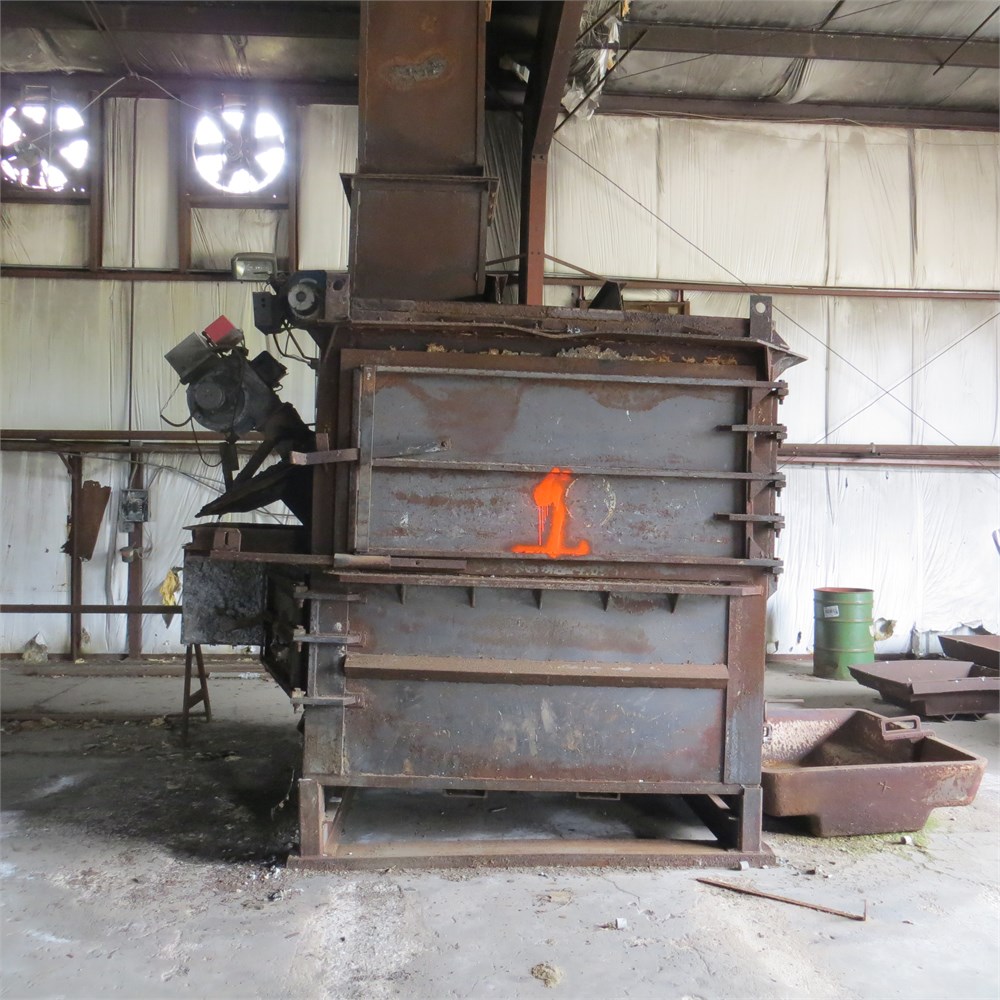

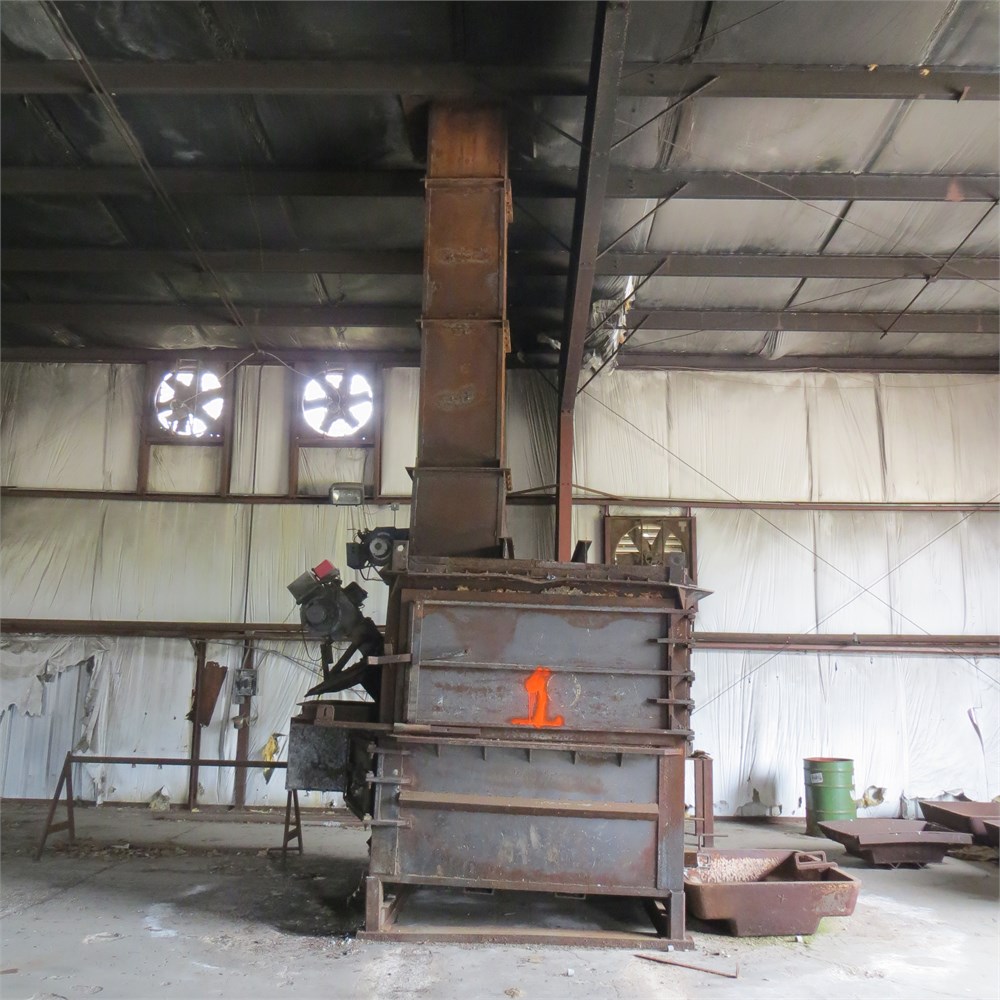

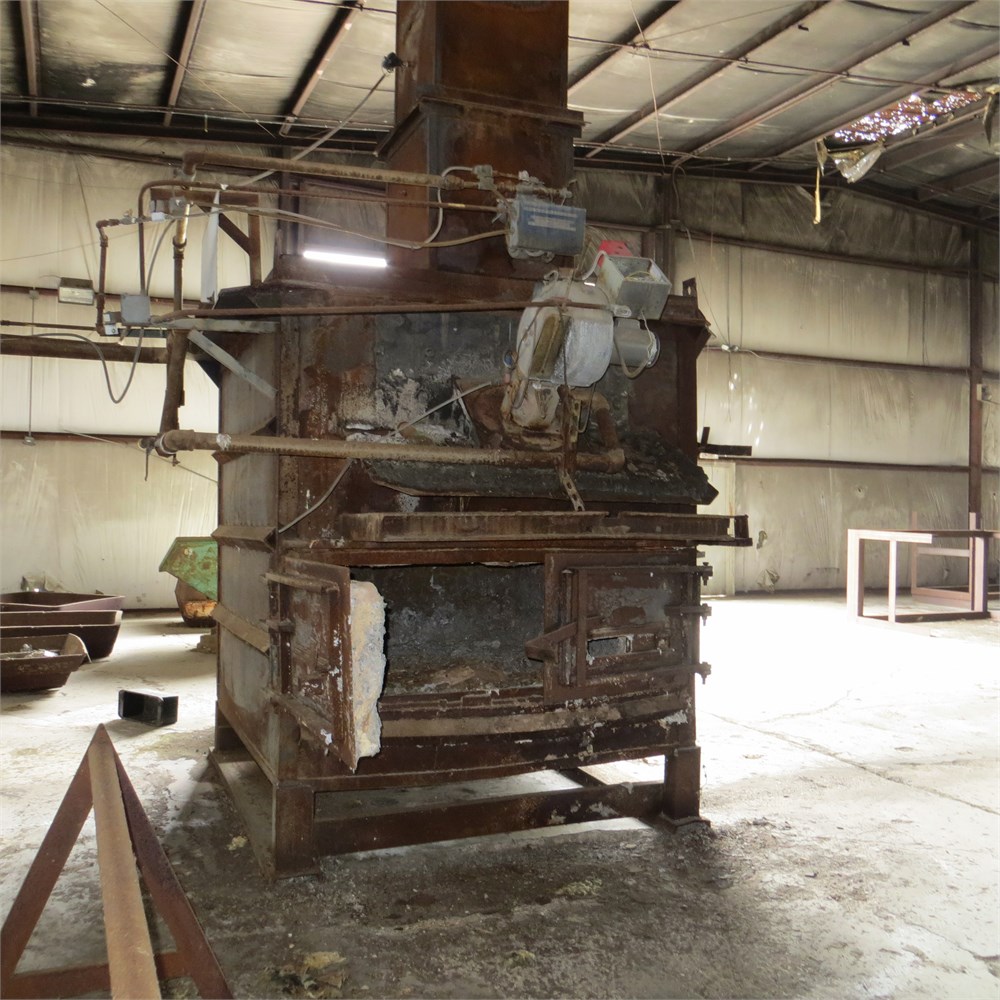

Aluminum King AK8500 Furnace

• Purchased new in 2013
• Bought with a diesel fuel main burner which was converted to methane and then again to natural gas
• Natural gas main burner and afterburner
• Complete furnace

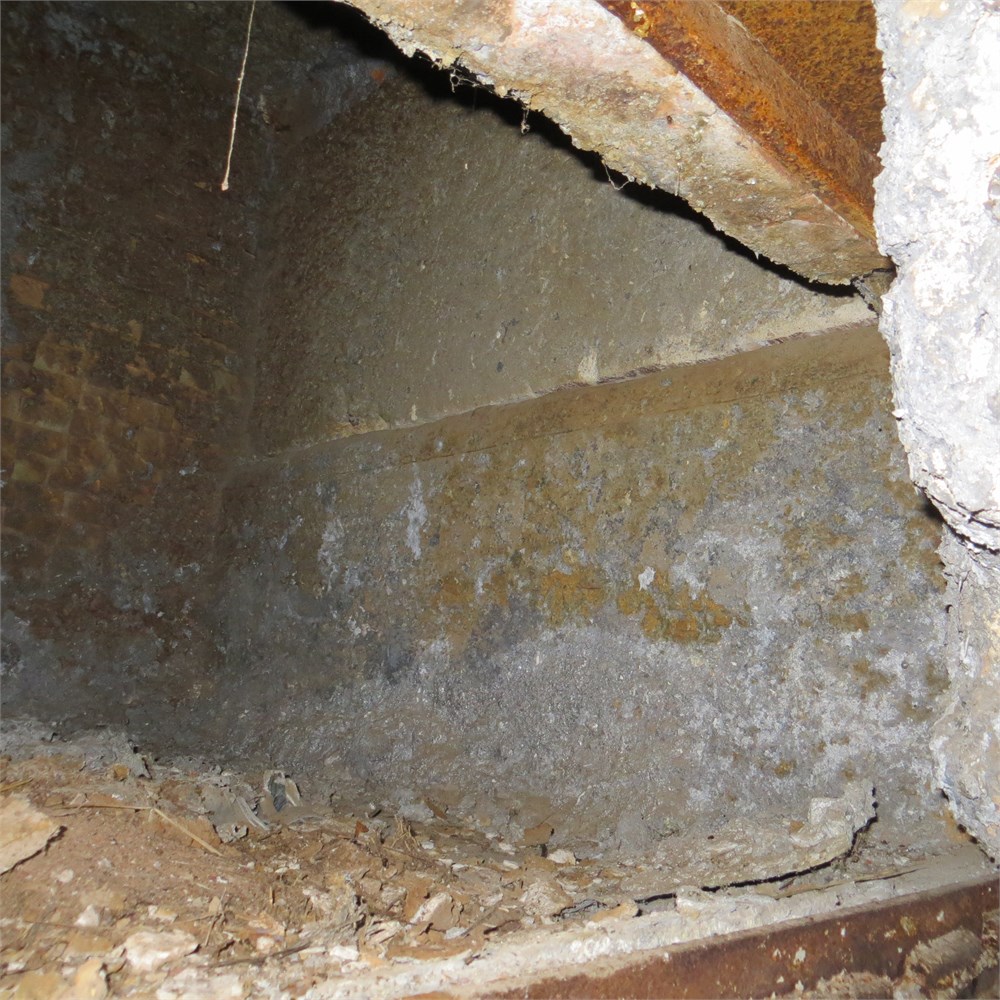

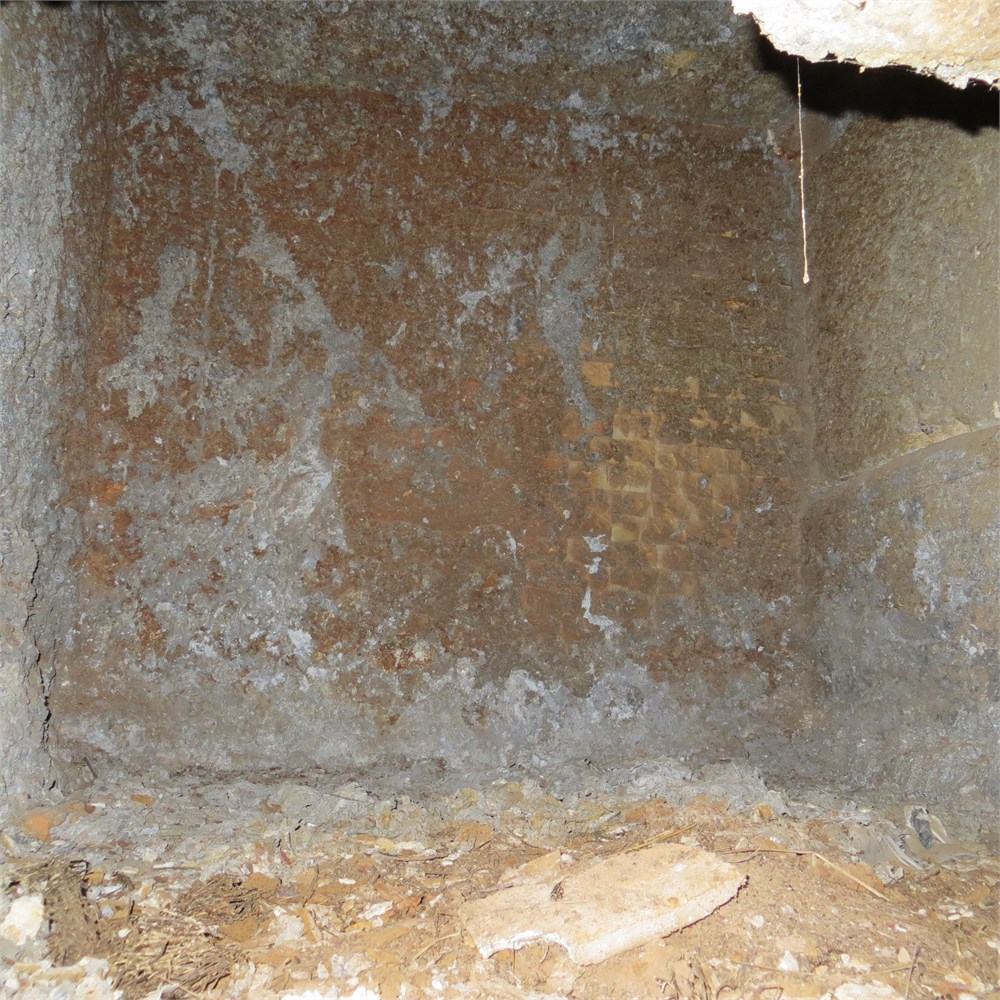

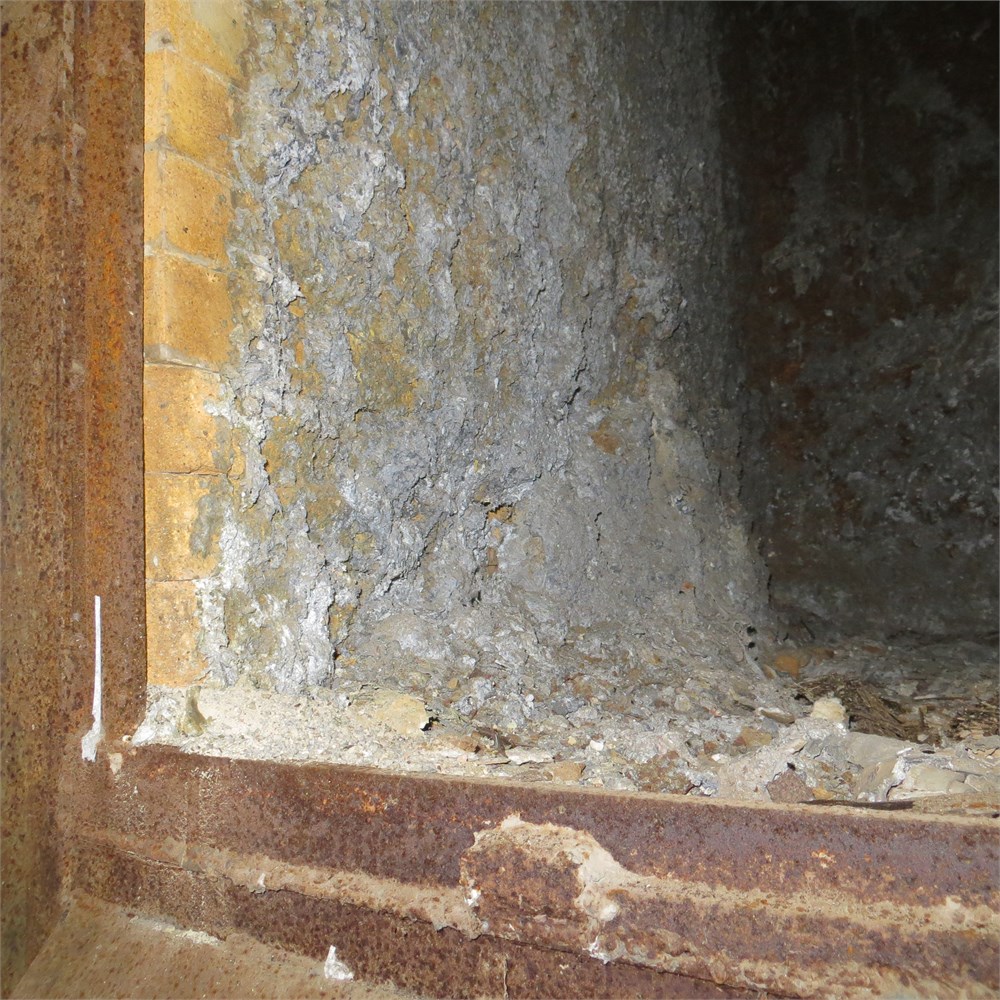

• Refractory at 95%
• This unit was re-lined shortly before decommissioning

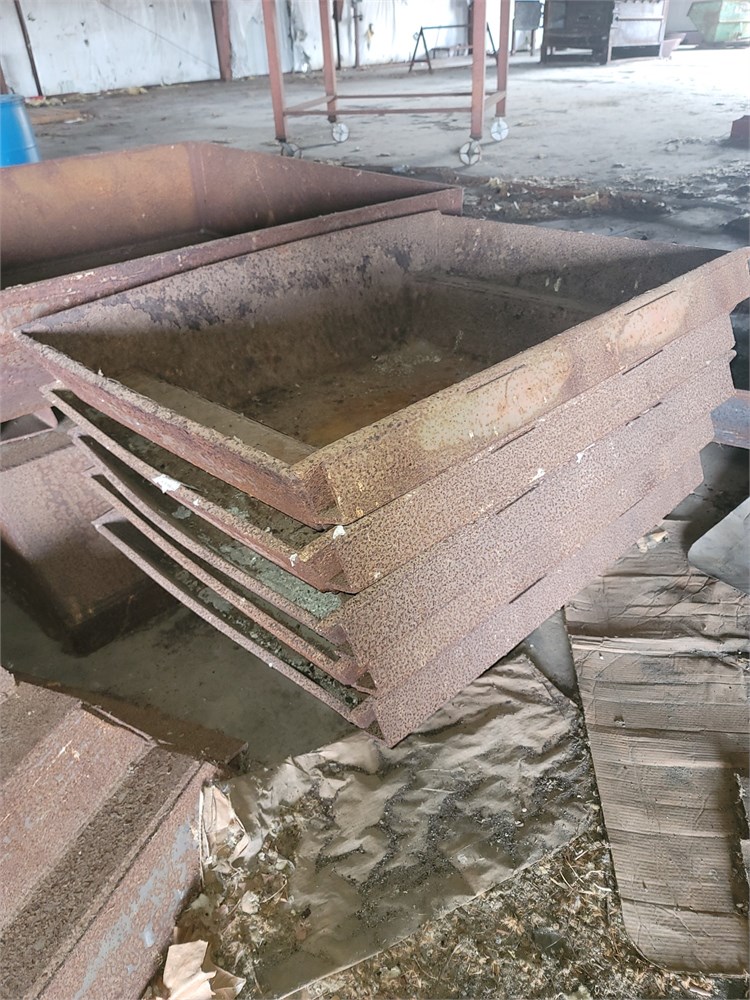

• Includes 6 x 500 lb sow molds and 1 rake
• Includes removal and loading on buyer's truck(s)

From the Manufacturer:

The AK8500 holds approximately 70-80 whole transmissions and can cycle in as little as 20 minutes. It has a holding capacity of 4,500-5,000 lbs and can pout two sows at once.

• Overall Size: 117" H x 79" W x 82" L
• Feed Door Opening: 31" H x 71" W
• Rake Out Door Opening: 20" H x 69" W
• Inside Chamber: 73" High x 69" W x 71" L
• Shipping Weight: Approx. 27,000 lbs
• Construction: 1/4" steel shell with 4-1/2" of fire brick
• Main Burner: 2-2.4 million BTU
• Afterburner: 3/4 to 1 million BTU
• Electrical: 110V hook up
