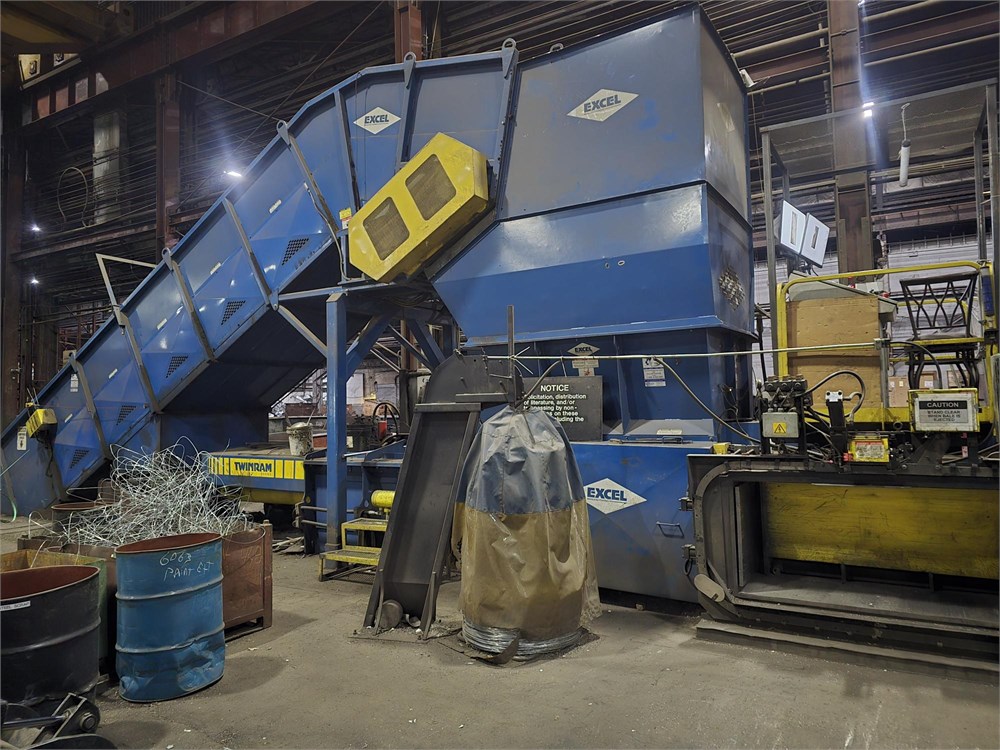

2008 Excel 2R10 Baler

Year: 2008

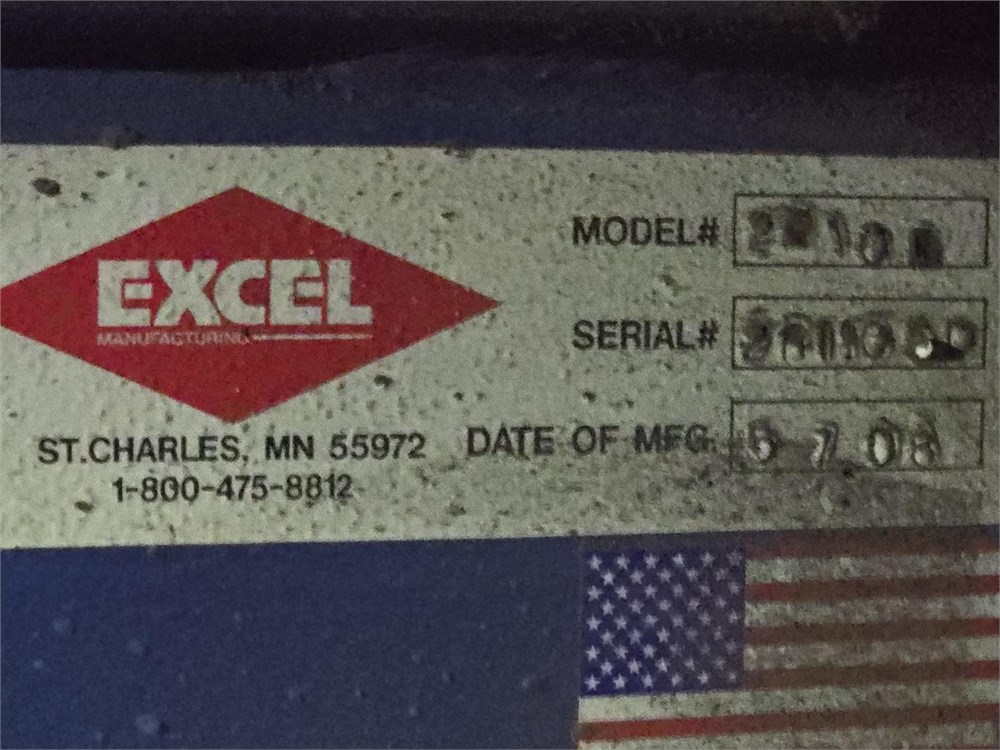

Model: 2R10
SN: 2R1108D

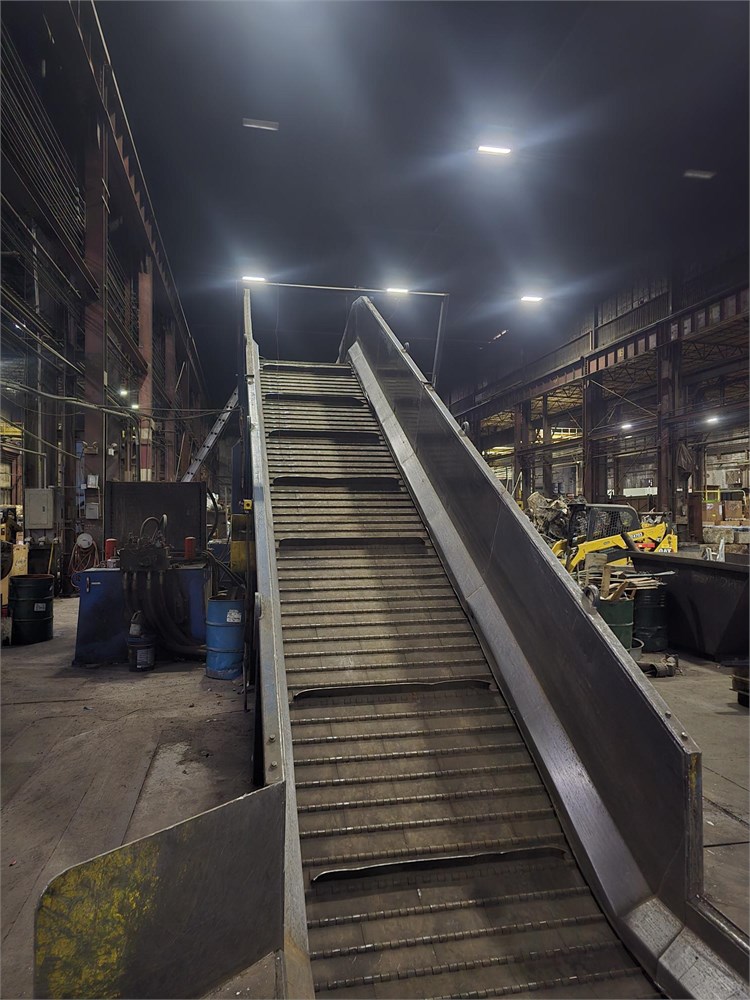

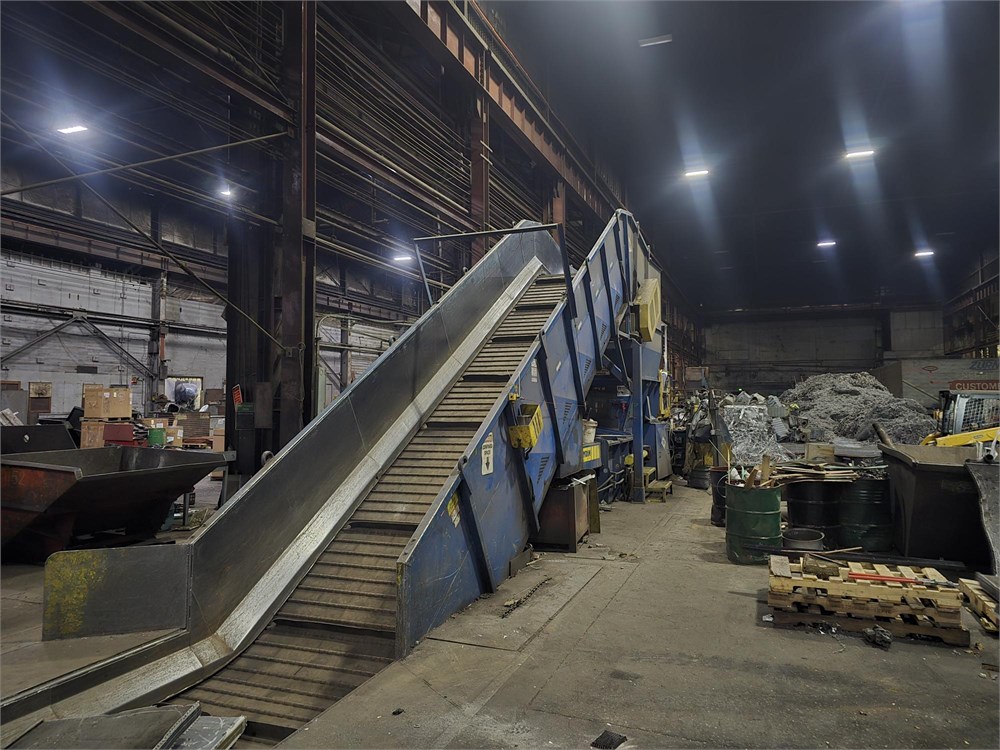

• Pit infeed conveyor in good condition

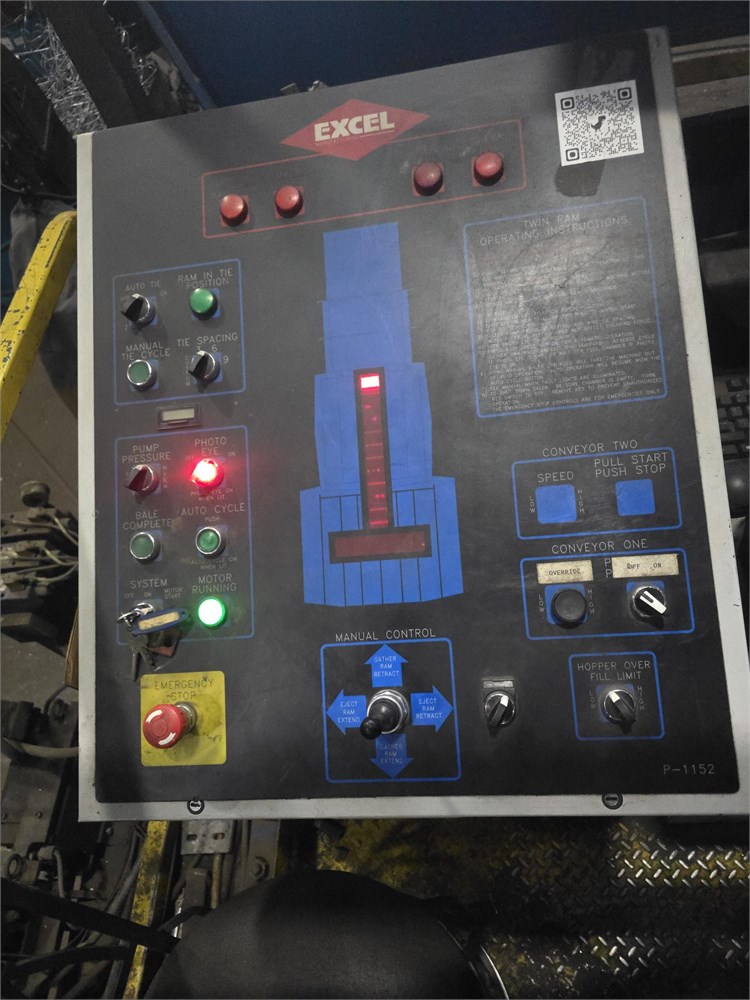

• Electronics and operating screen in good condition
• Machine is in relatively good condition and well maintained

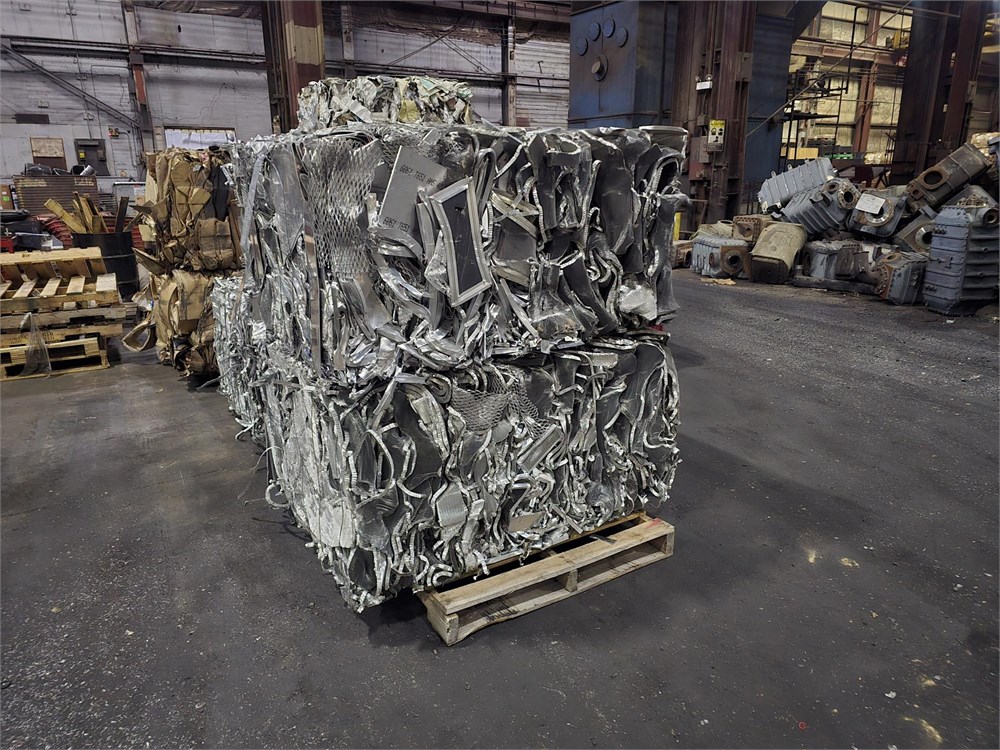

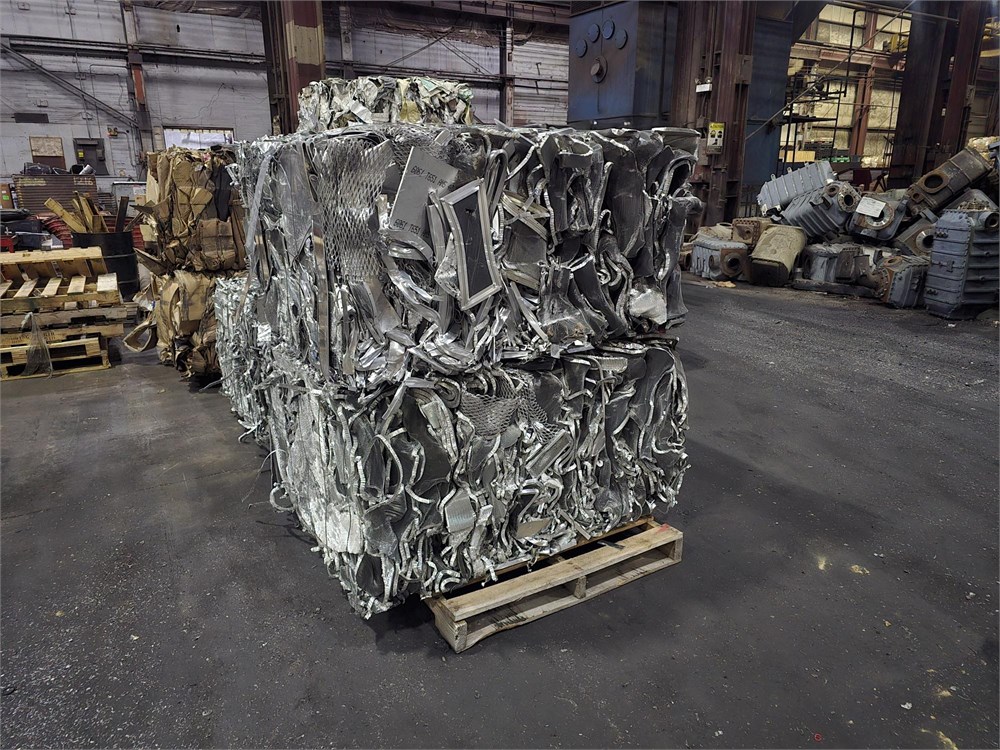

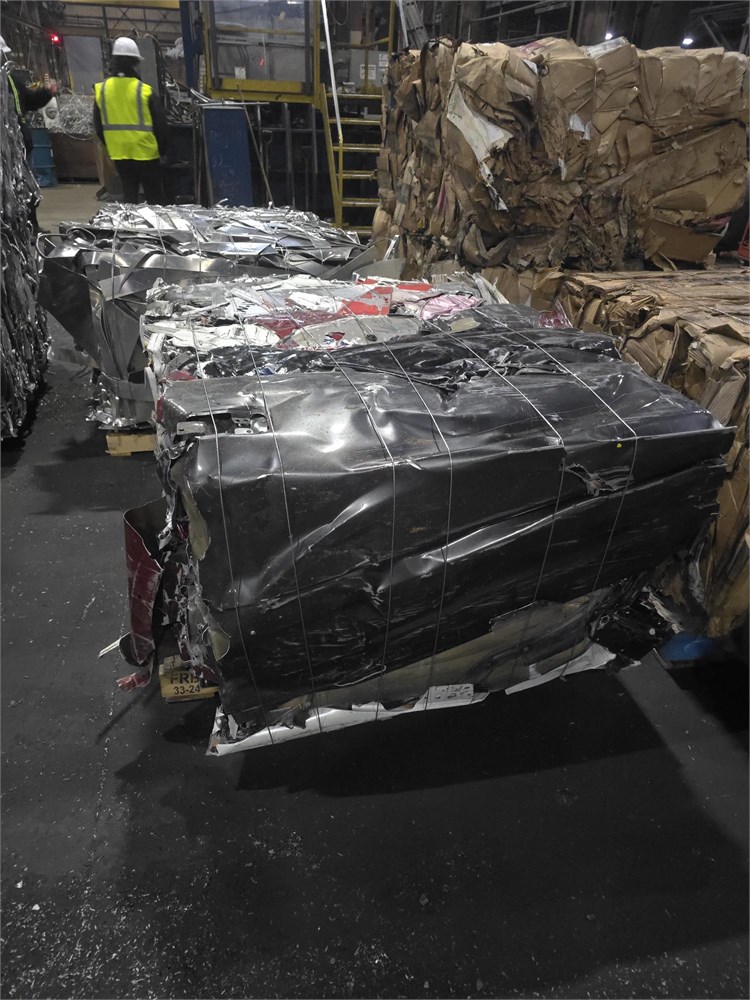

• Photos of the baler in operation are included along with baled product
• This machine is hooked up to power and can be demonstrated as of May 2026

Below information is from the Excel website

Structural

• Overall Length: 33ft 10in (10.09 meters) with stairs
• Width: 13ft 5in (4.11 meters)
• Height: 8ft 8in (2.68 meters)
• Feed Opening: 40in W x 90in L (102cm x 229cm)
• Chamber Floor: 1in thick plate plus 3/8in Hardox 400 liner
• Chamber Side Walls: 3/4in thick plate plus 3/8in Hardox 400 liner
• Baler Shipping Weight: 58,000 lbs. (26,308kg)

Performance Data

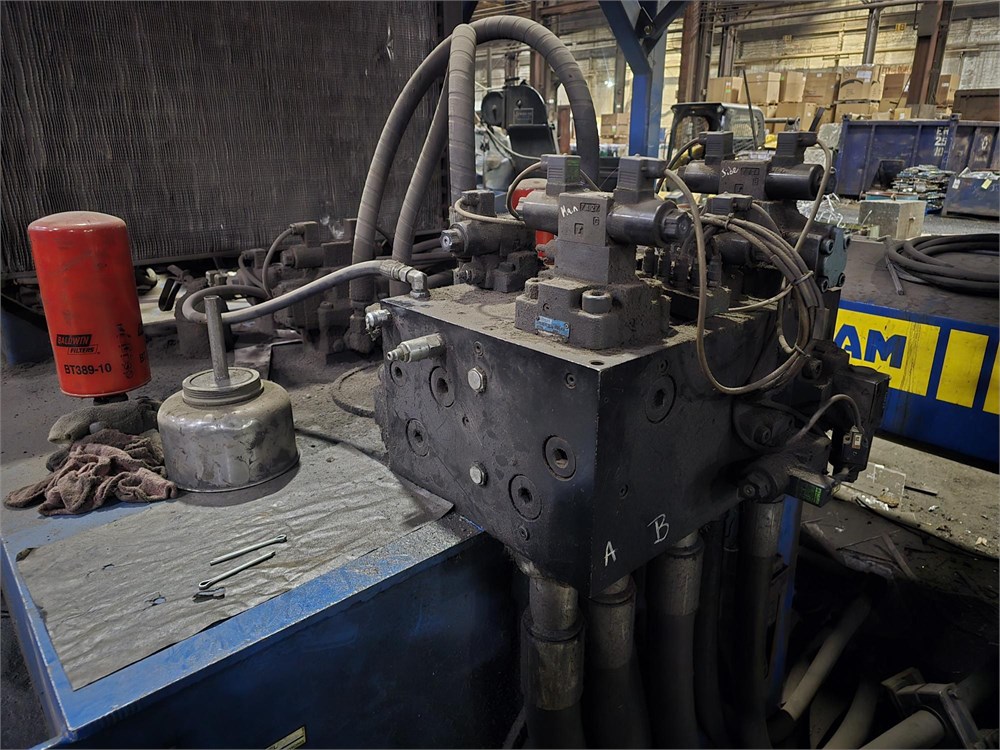

• Main Cylinder: 10in (25.4cm) bore x 130in (330cm) stroke x 7in (18cm) chrome rod
• Eject Cylinder: 9in (22.9cm) bore x 6in (15cm) chrome rod
• Oil Reservoir: 600 gallons
• Independent Pump: 200 GPM (758 liters)

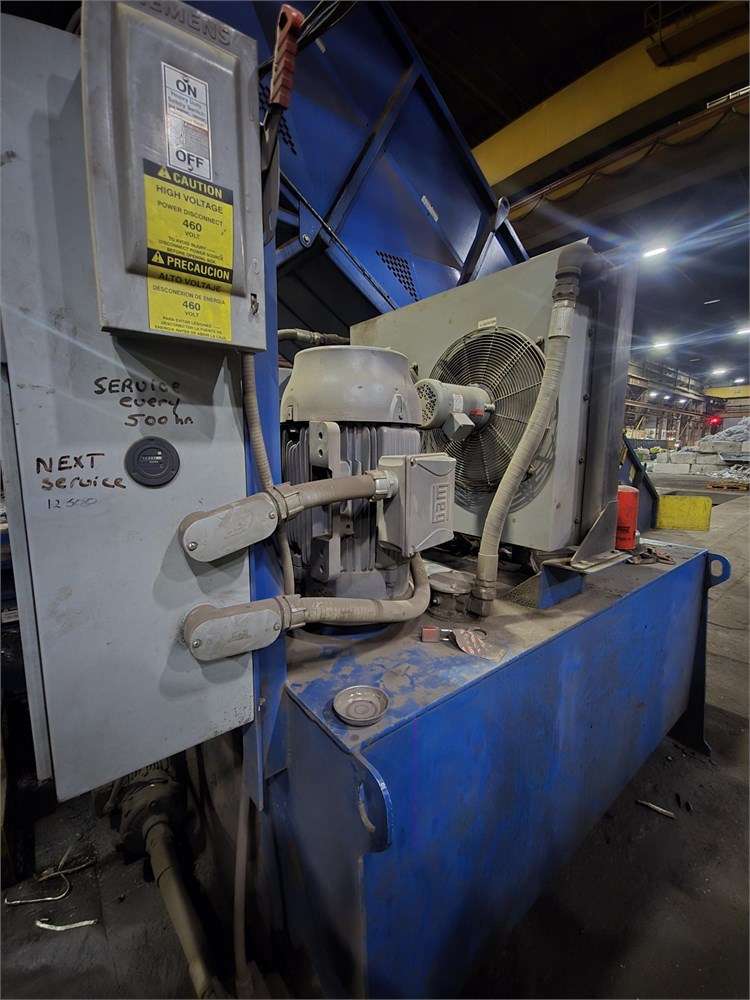

• Motor: (2) 50 HP TEFC 460V, 3 Phase
• Hydraulic System Pressure: 3,000 PSI automatic mode (3,250 maximum)
• Overall Platen Force: 235,619 lbs./255,254 lbs. maximum
• Platen PSI: 200 PSI/216 PSI maximum
• Cycle Time: 16 seconds
• Estimated Bale Size: 60in (152cm) L x 45in (114cm) W x 30in (76cm) H 46.88 cu ft (adjustable)
• Enclosure: NEMA 12 rated
• Controls: CE/UL approved NEMA 12 rated

Bale Weights

• Foam: 1,500 lbs. (680kg) 8-12 TPH
• OCC: 1,250 lbs. (566kg) 3.5-7 TPH
• HDPE: 1,150 lbs. (521kg) 3-6 TPH
• PET: 900 lbs. (408kg) 4-8 TPH
• Aluminum Cans: 1,800 lbs. (816kg) 13-18 TPH
• Tin Cans: 2,400 lbs. (1,087kg) 18-23 TPH
• Magazines: 1,700 lbs. (771kg) 14-19 TPH
• Newspaper: 2,200 lbs. (1,000kg) 17-28 TPH
• MSW: 1,700 lbs. (771kg) 8.4 TPH
• Aluminum Extrusion: 1,200 lbs. (554kg) 2.7 TPH
• Painted Aluminum Siding: 2,000 lbs. (907kg) 4.5 TPH
• Radiators: 1,700 lbs. (771kg) 4.7 TPH
• Insulated Copper Wire: 3,500 lbs. (1,587kg) 10.5 TPH
• Misc. Nonferrous Scrap: 1,500 lbs. (680kg) 5.1 TPH

Buyer is required to remove and load the baler after purchase at their own cost.

Selling as-is where-is.
