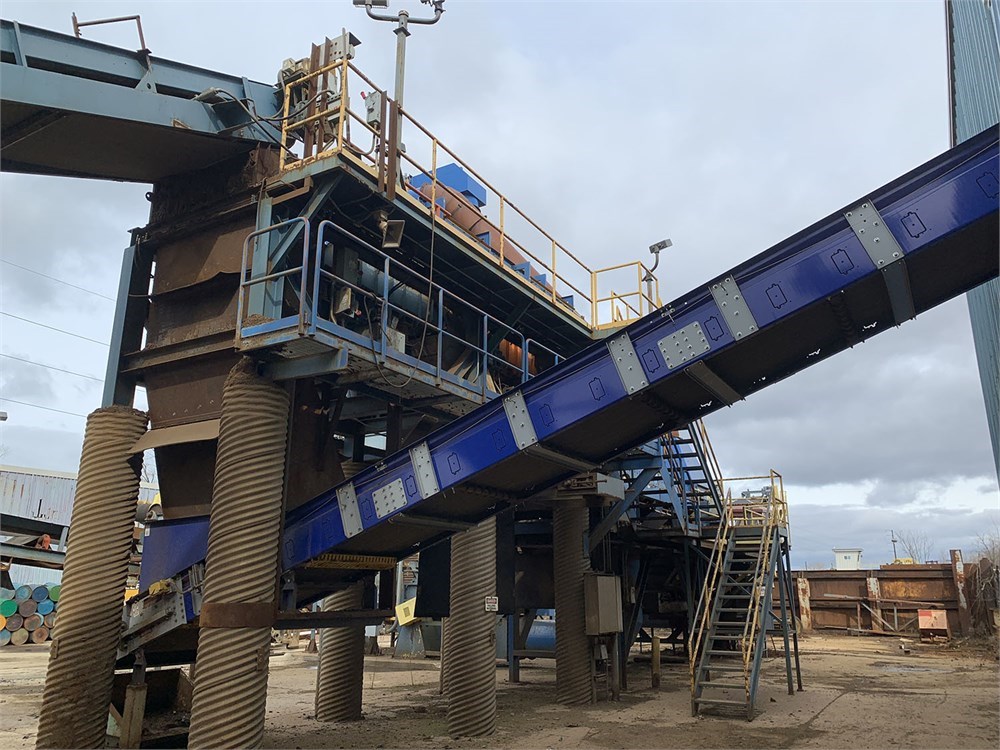

1989 Metso 74 X 104 Hammermill Auto Shredder

SN: 306X558

60-80 TPH capacity

Complete Shredder ferrous assembly includes these major components

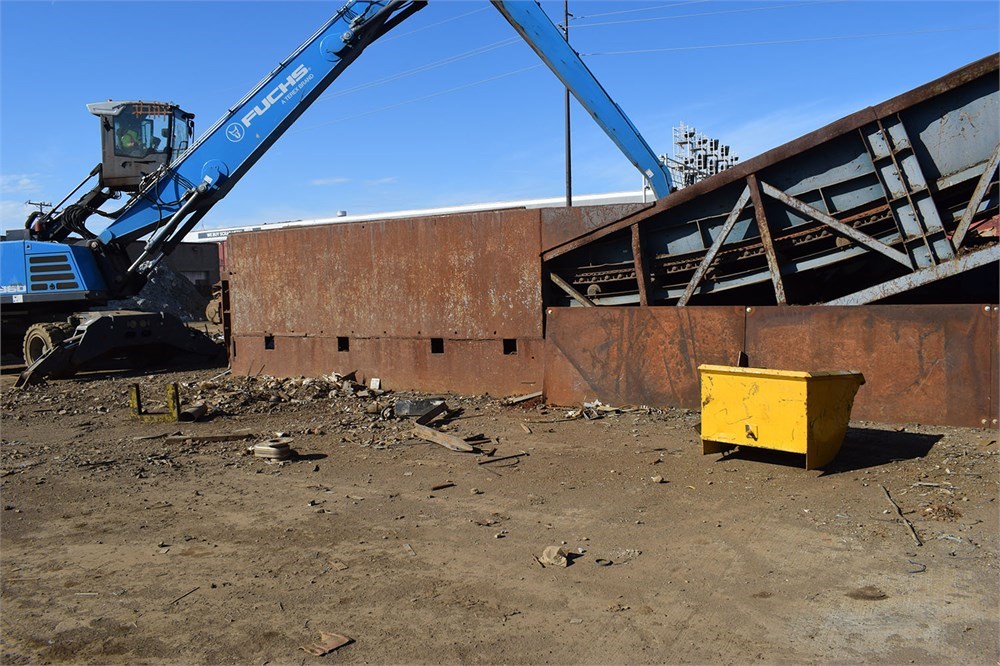

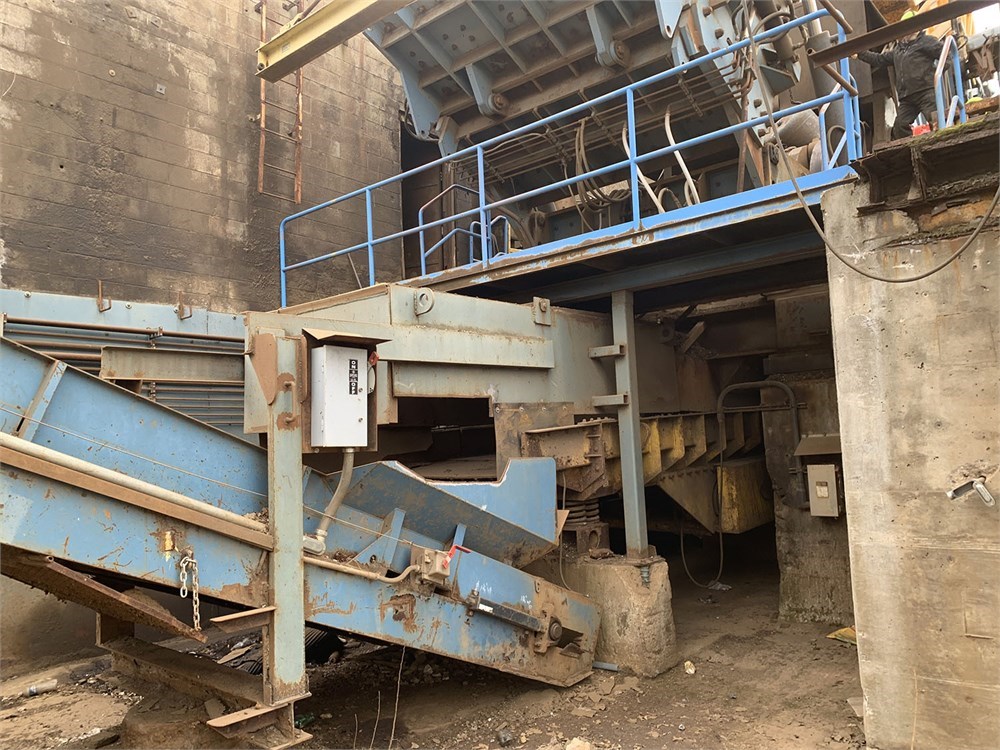

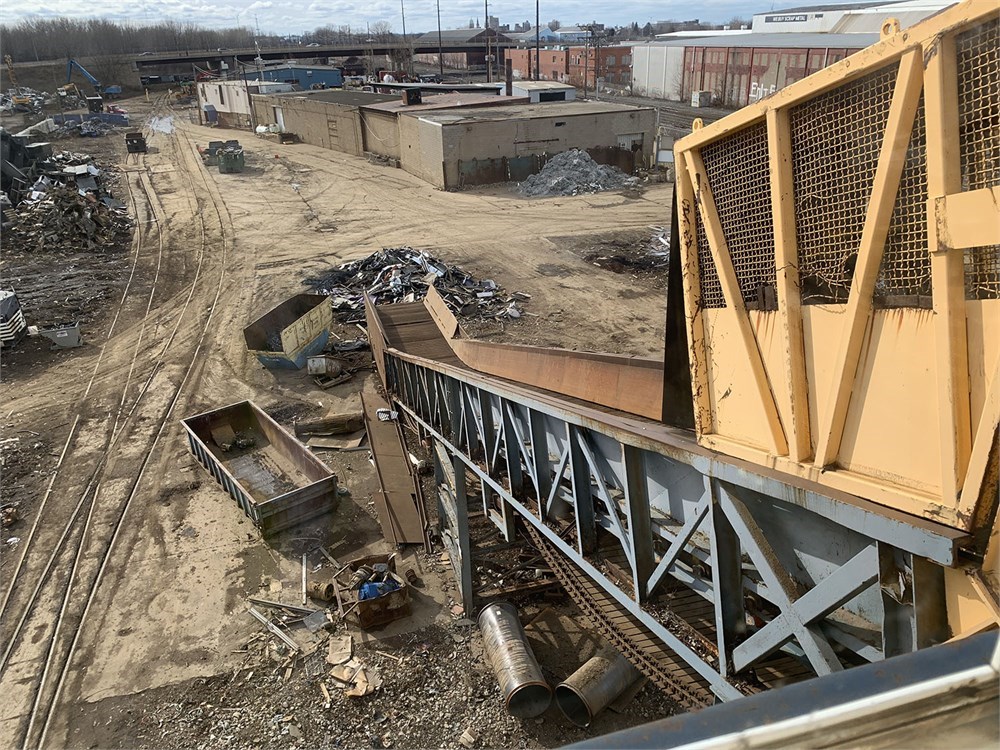

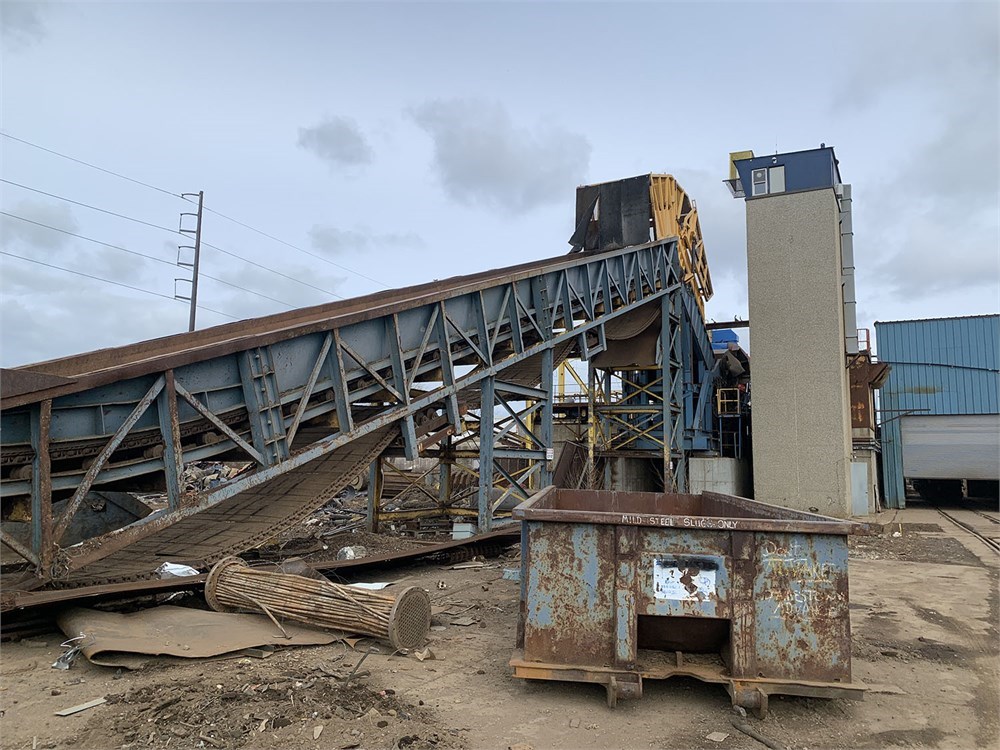

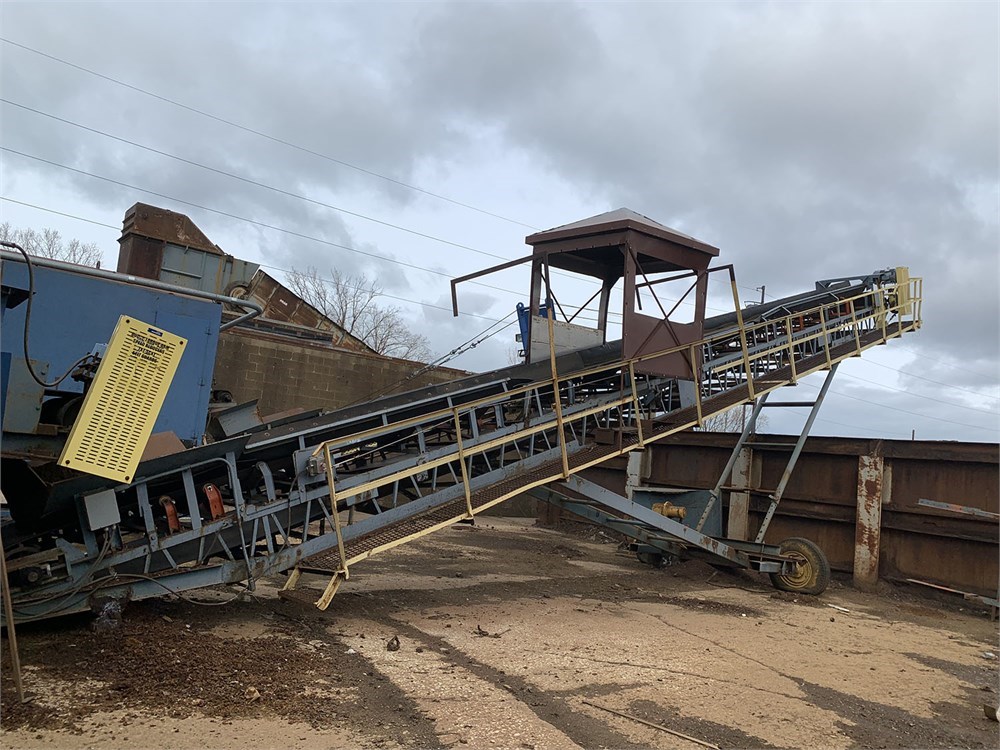

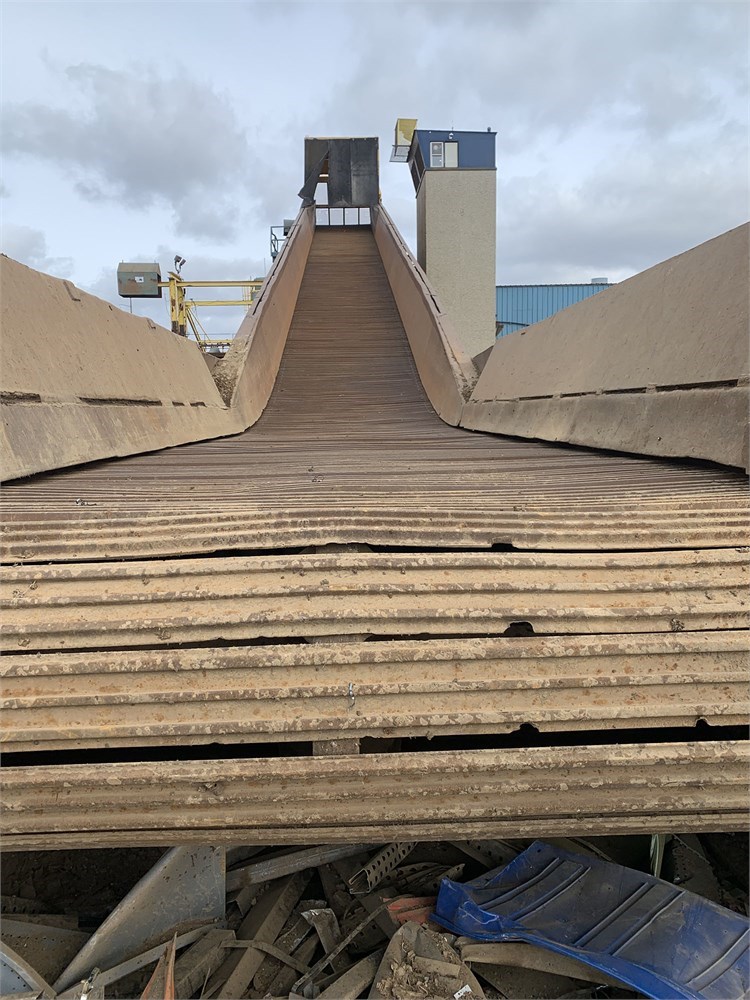

1. Infeed conveyor, Cat track, hydraulic

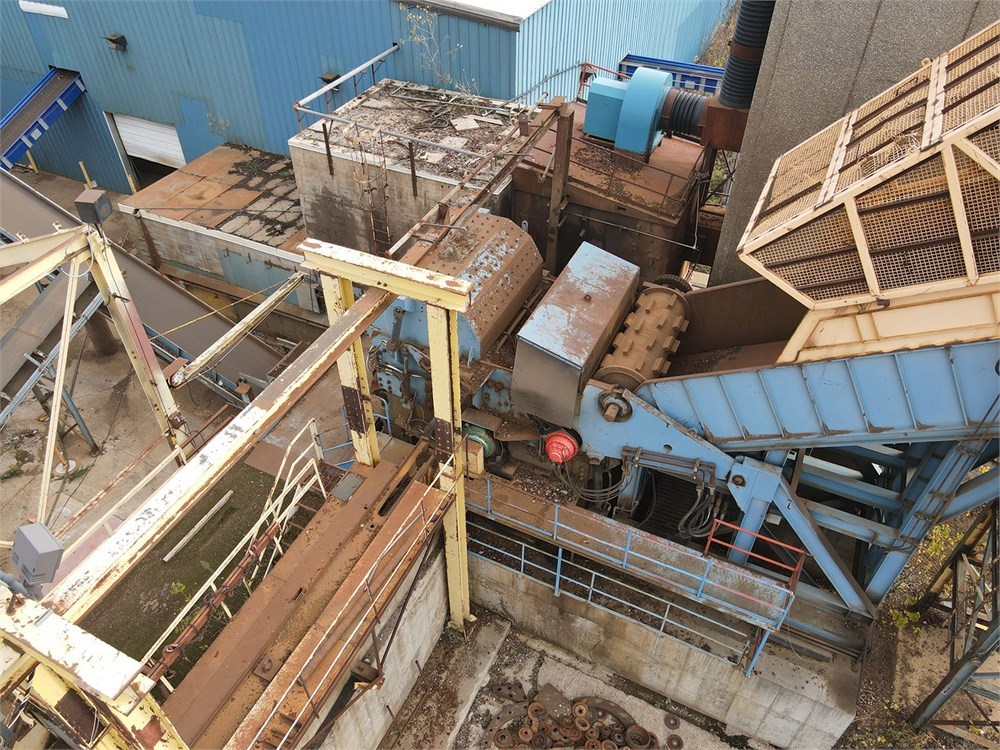

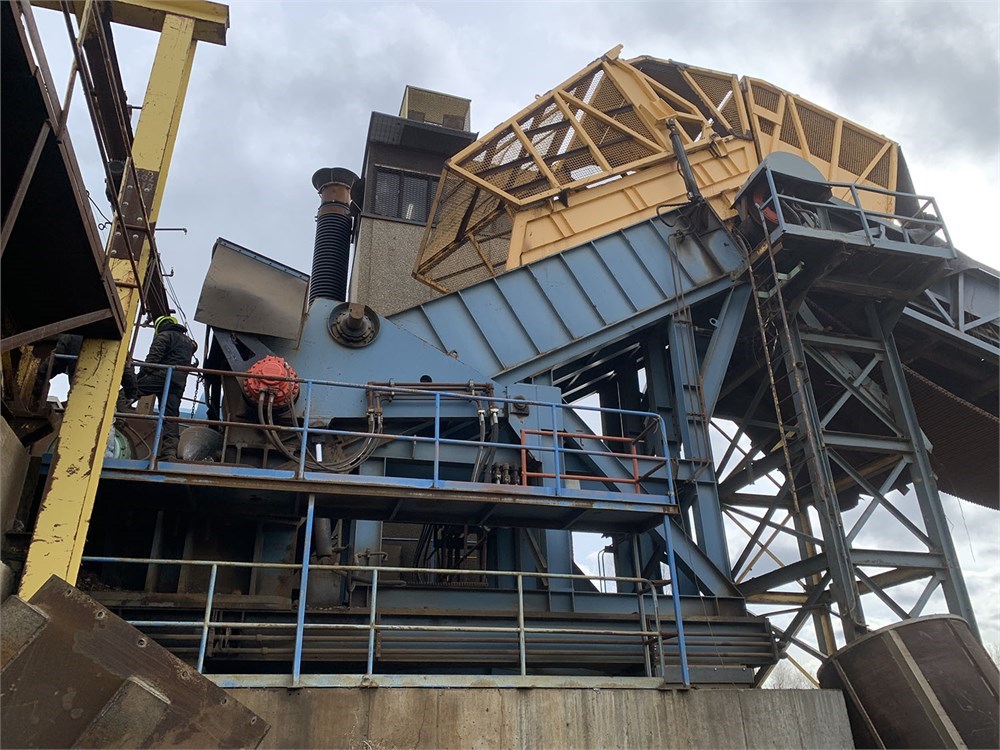

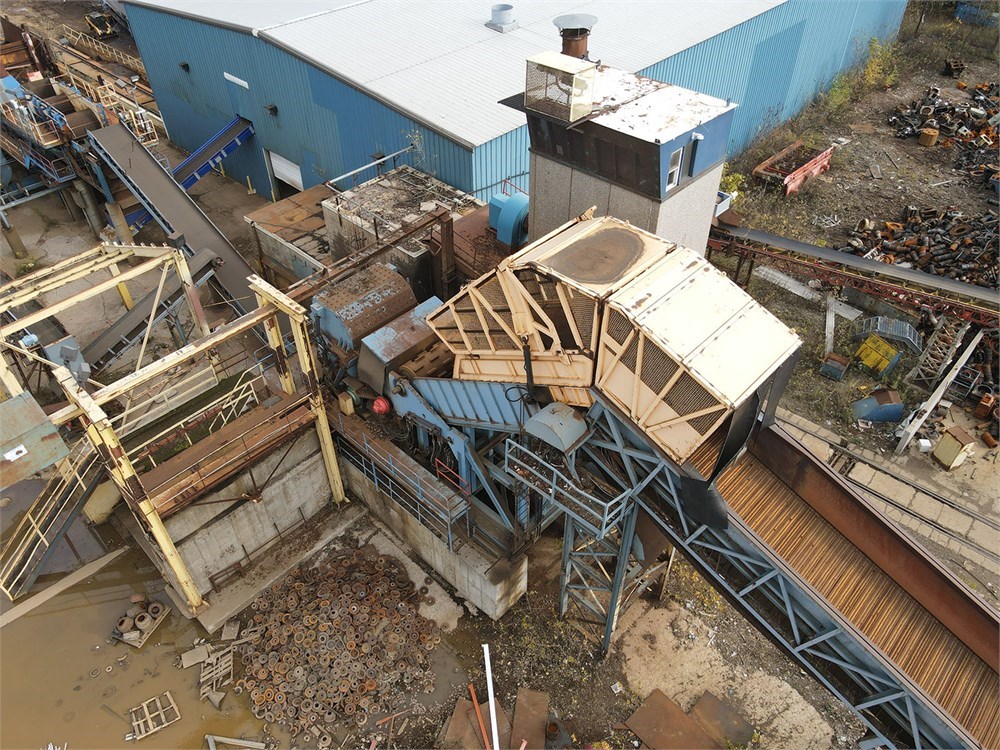

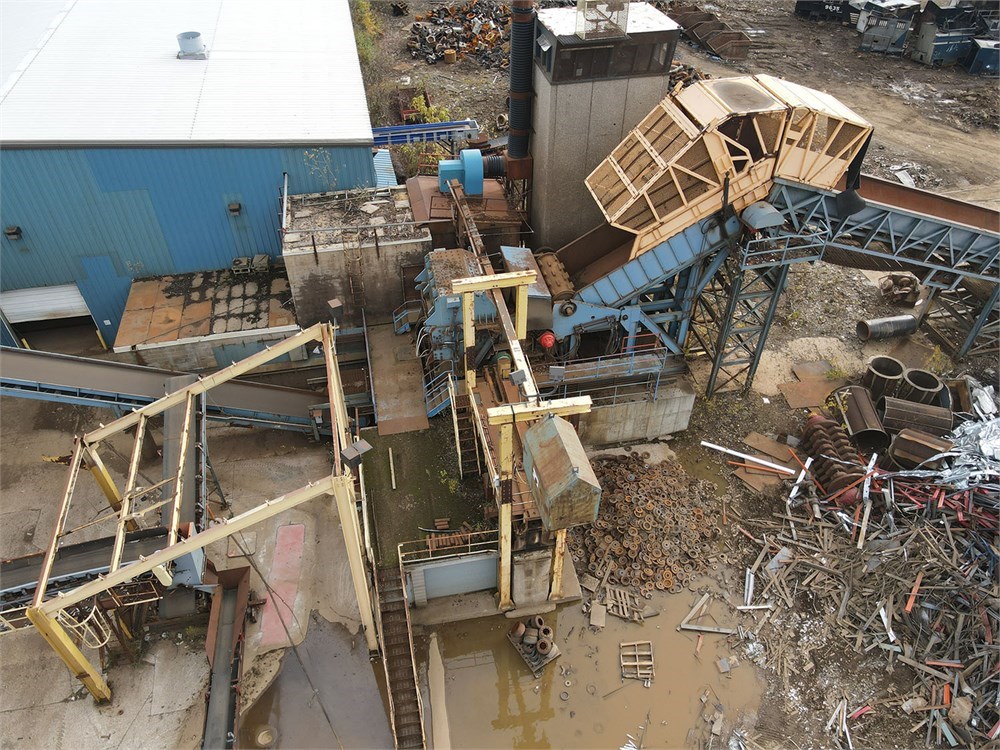

2. 74 X 104 mill

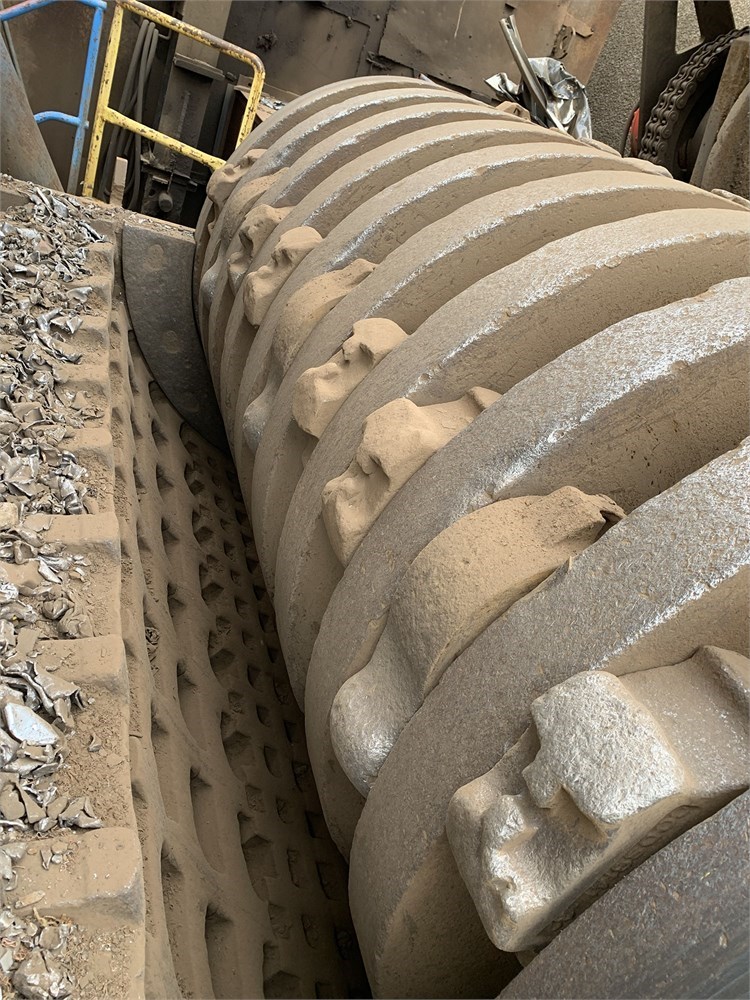

3. Dual feed rolls
4. Bowe disc rotor & bearings with very little use

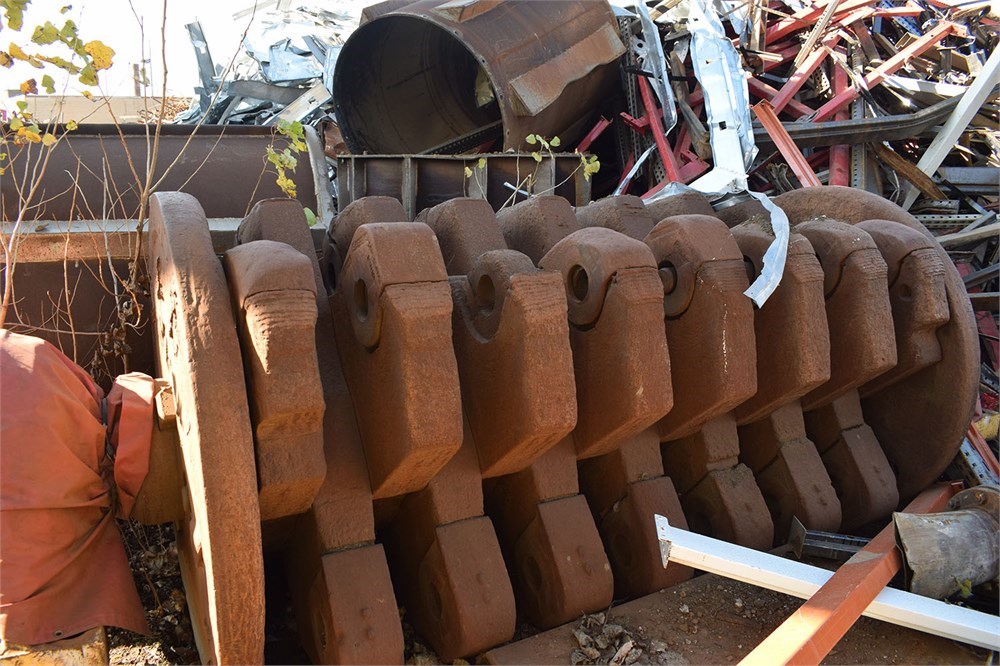

5. Spare spider rotor

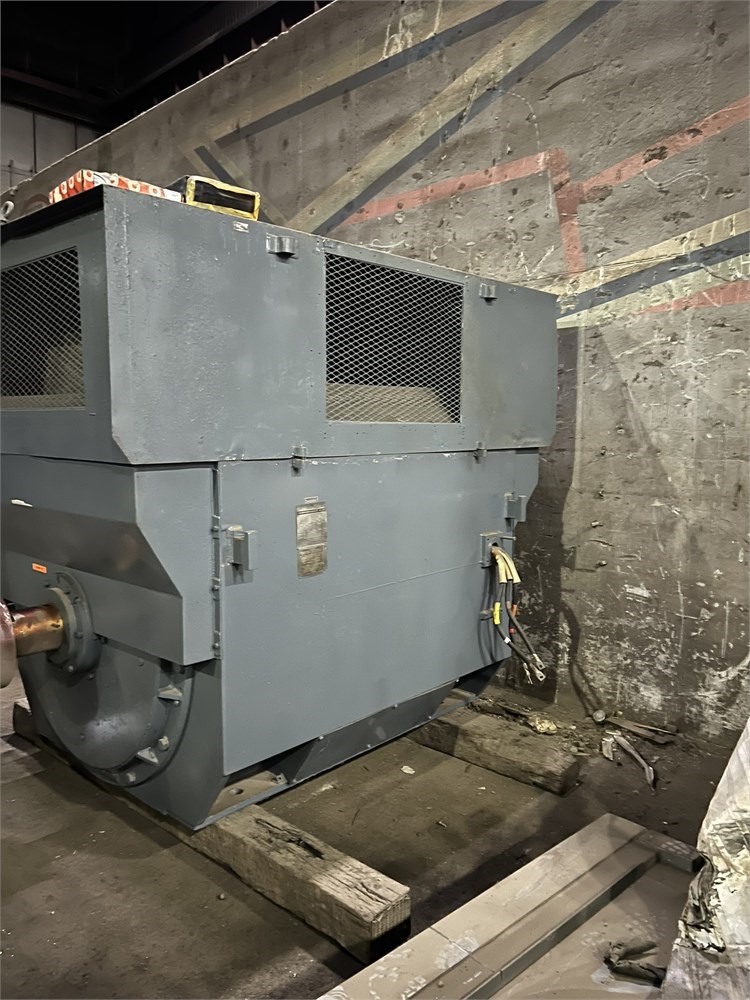

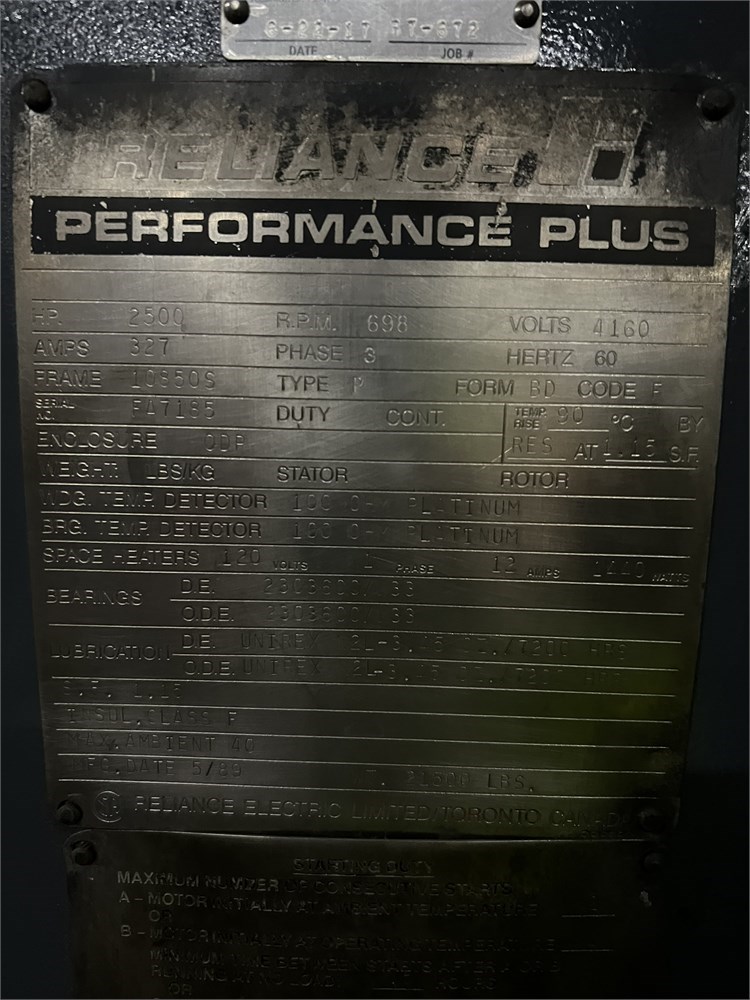

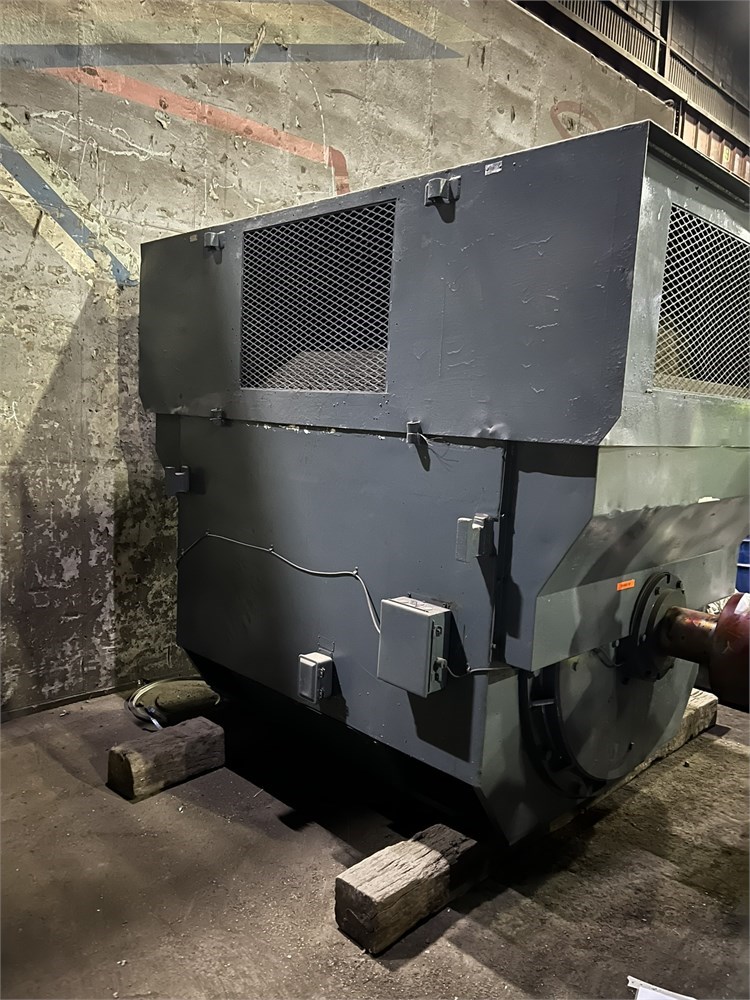

6. 2500 Hp Reliance A/C motor, 698 RPM, 3 Phz, 4160 Volts, 60 Htz 327 Amps
7. Spare 2500 HP motor rebuilt in 2017, never in service, stored inside.

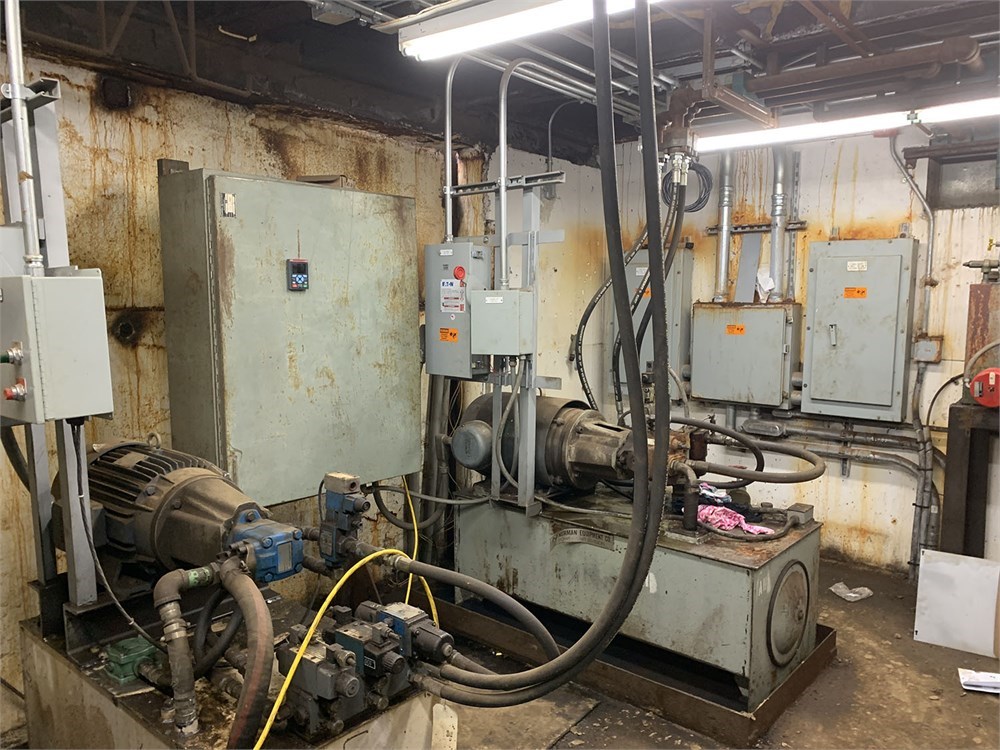

8. Hydraulic power units for infeed, pin puller and mill cylinders

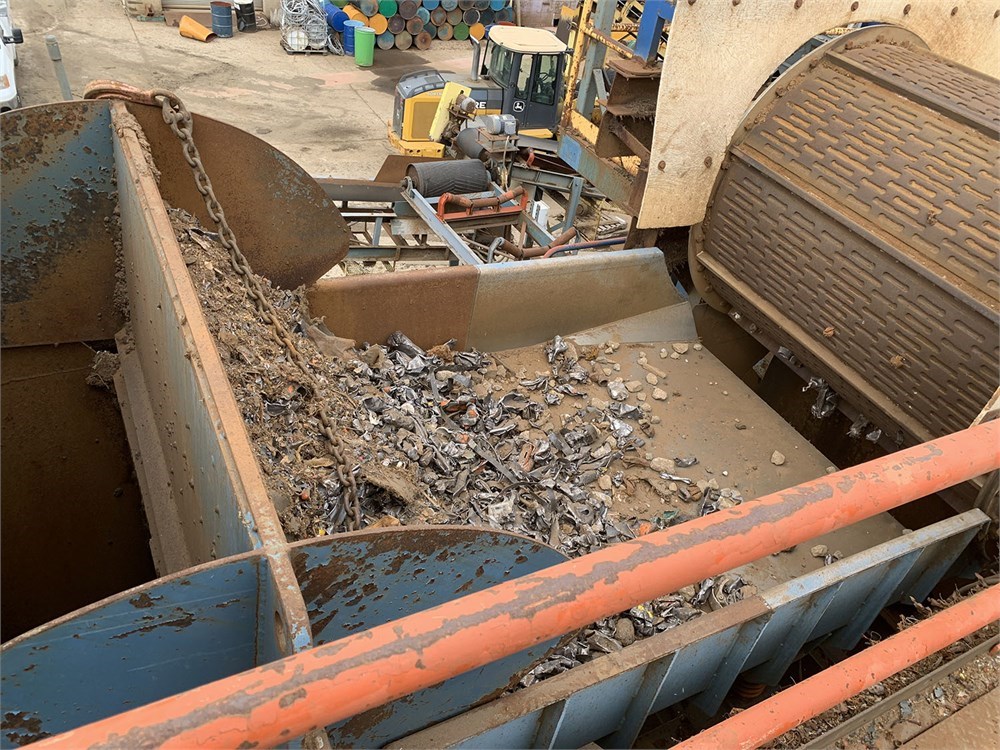

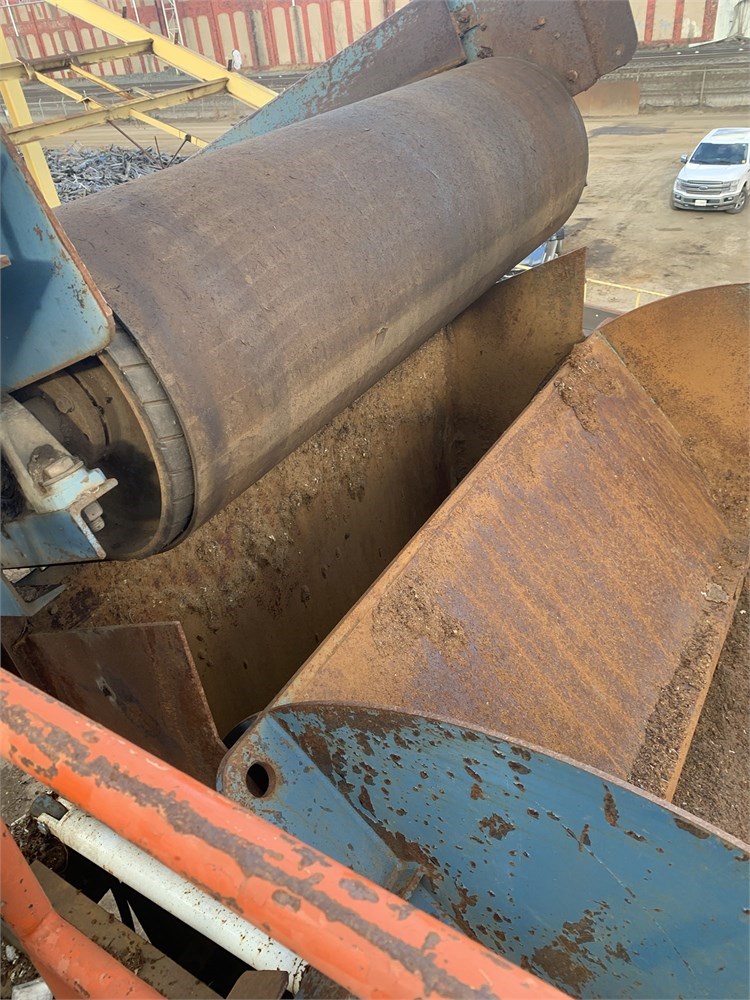

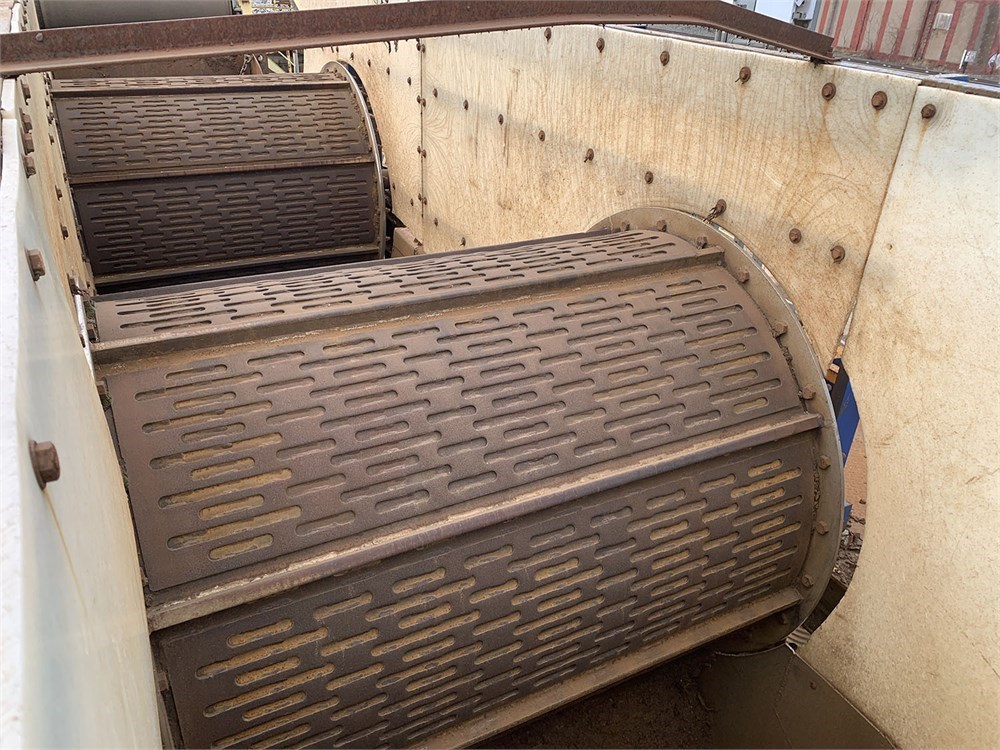

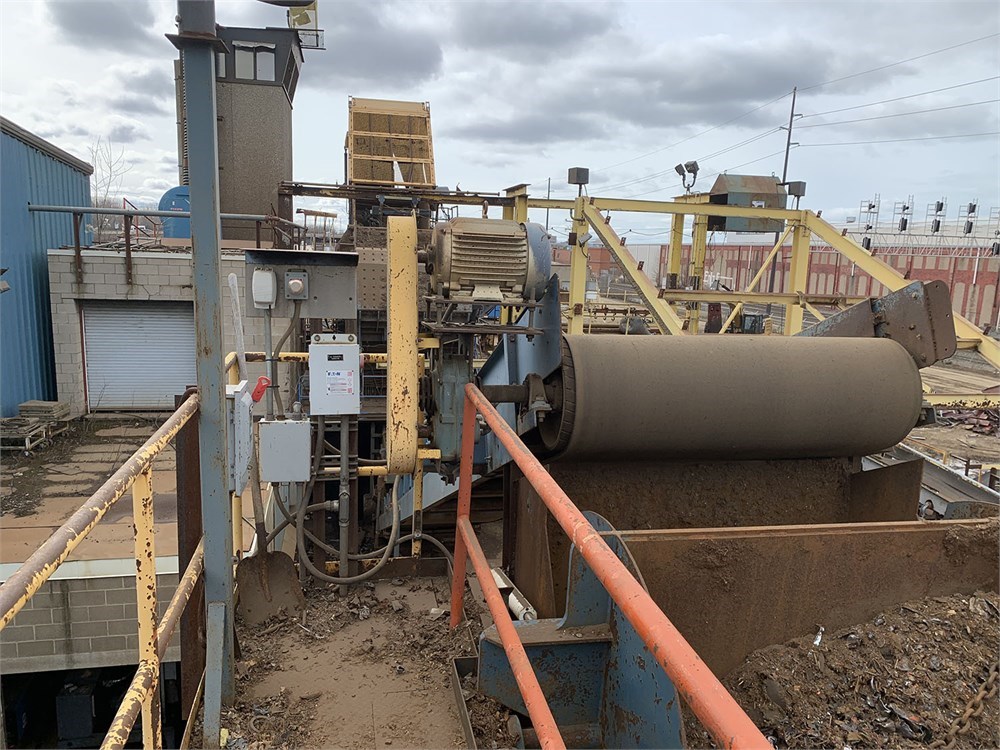

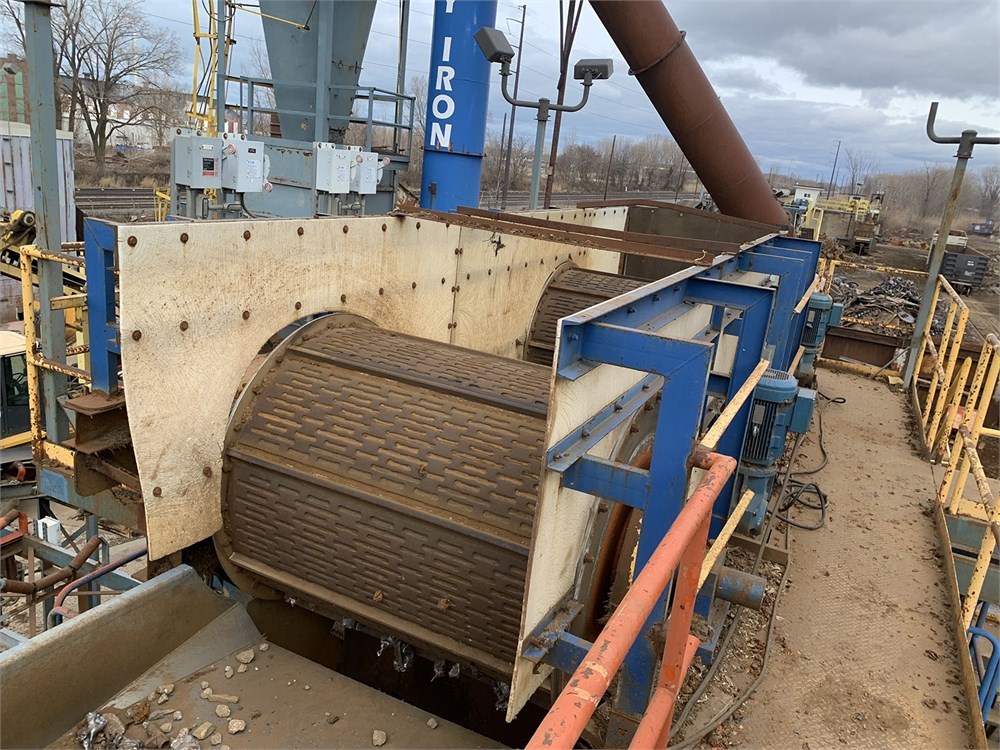

9. ( 2 ) Eriez 48” X 80’ drum magnets

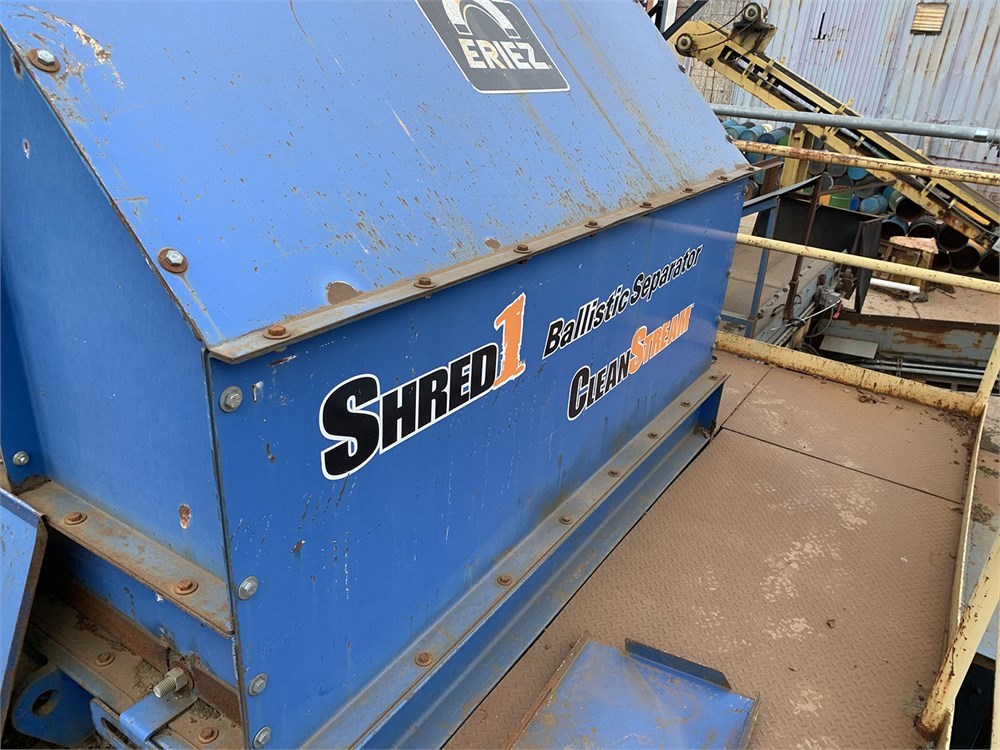

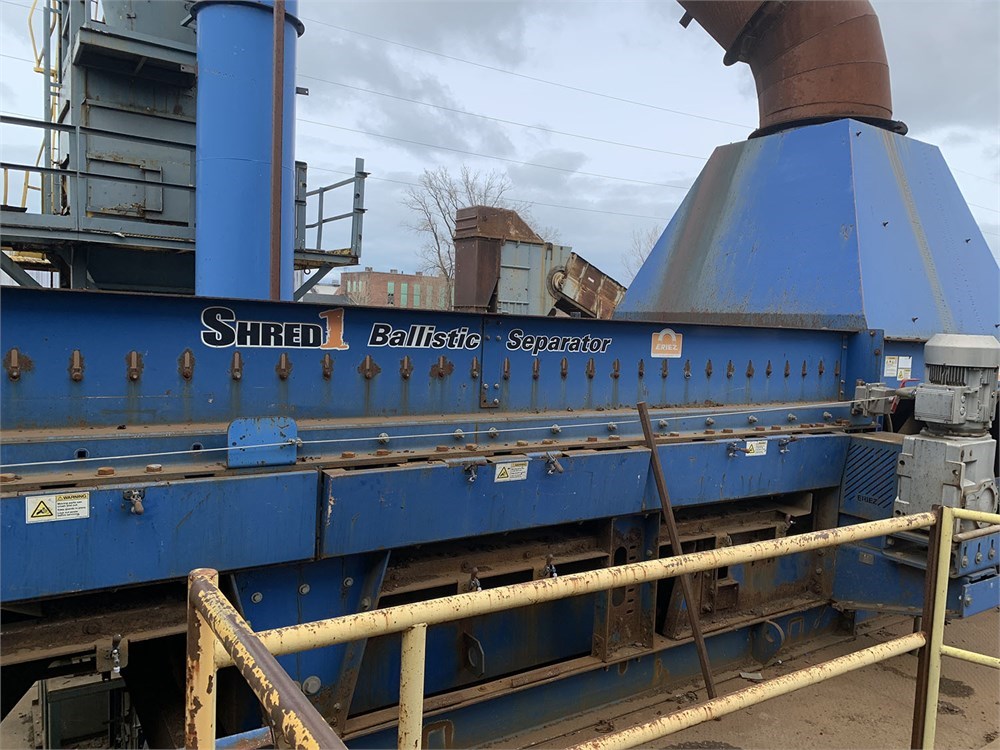

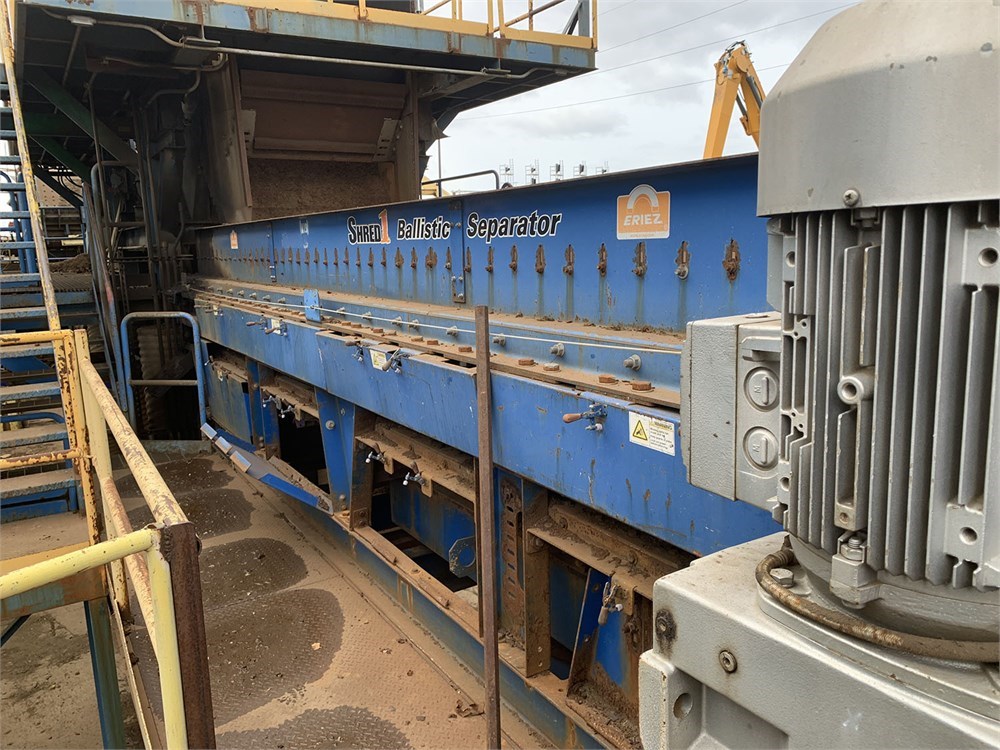

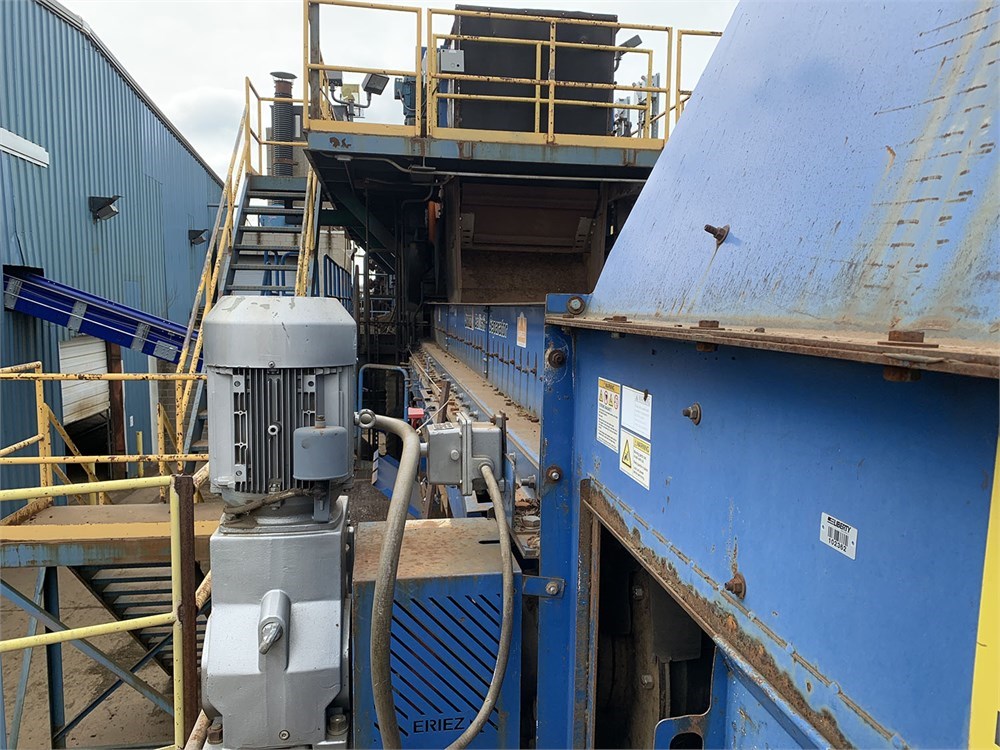

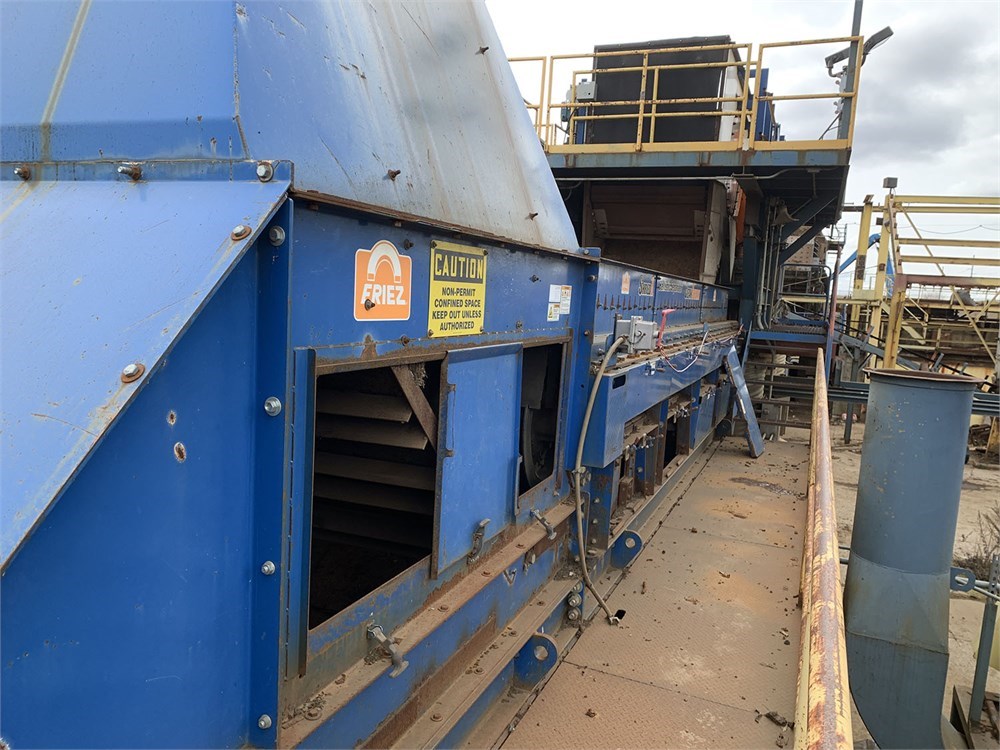

10. Eriez Shred 1 ballistic separator.
11. Picking station

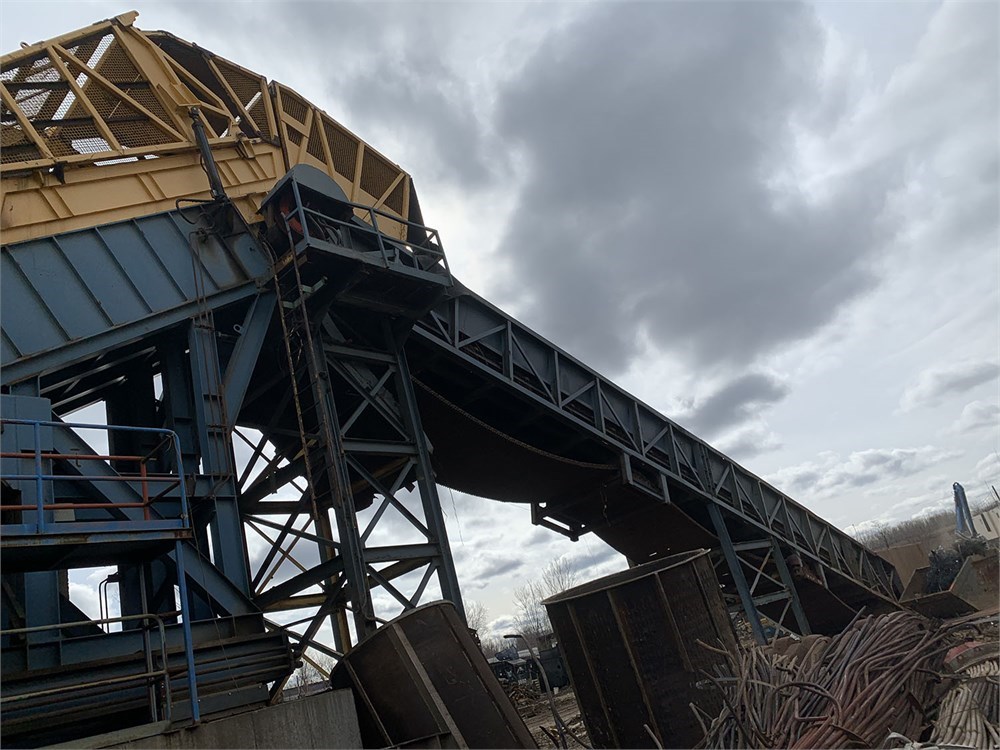

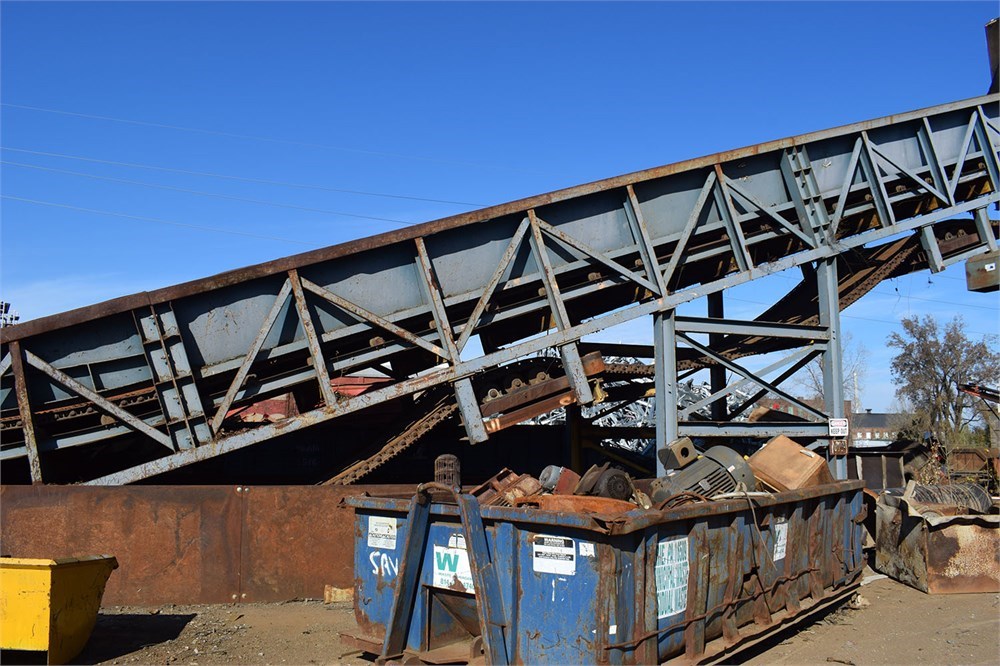

12. Ferrous take away conveyor.

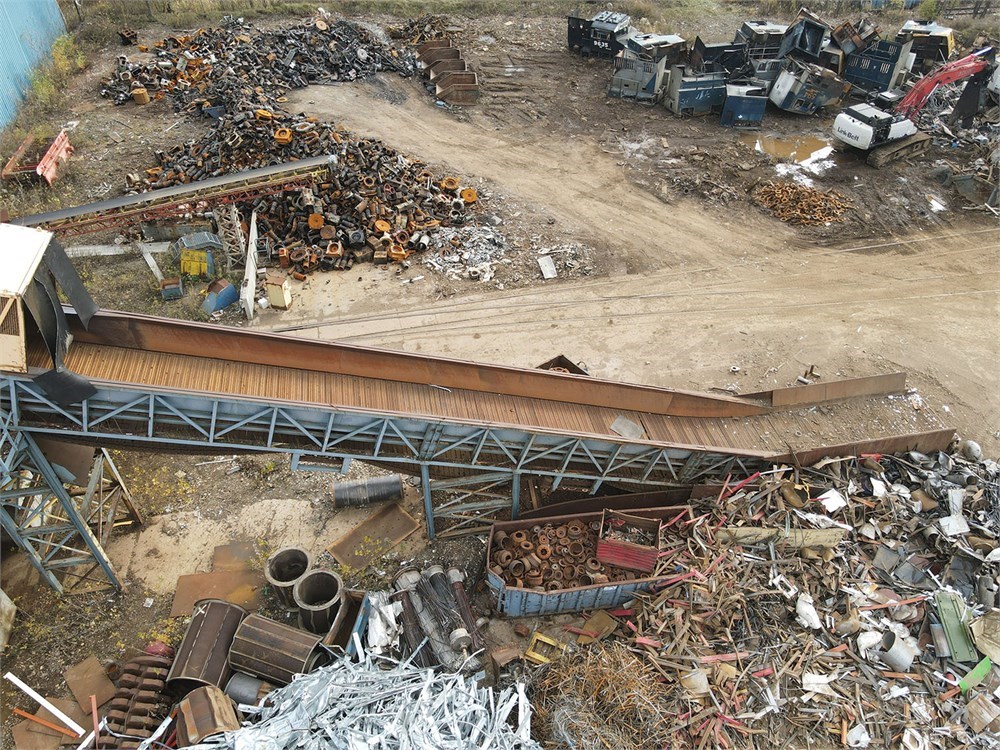

13. Many conveyors and other ferrous sorting processes.

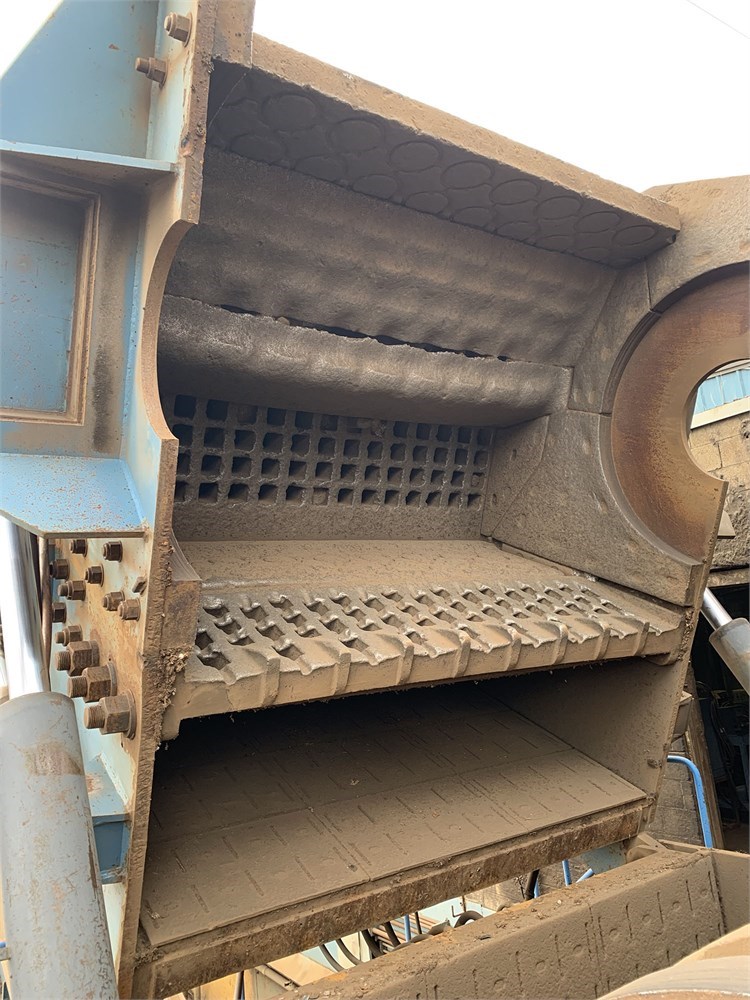

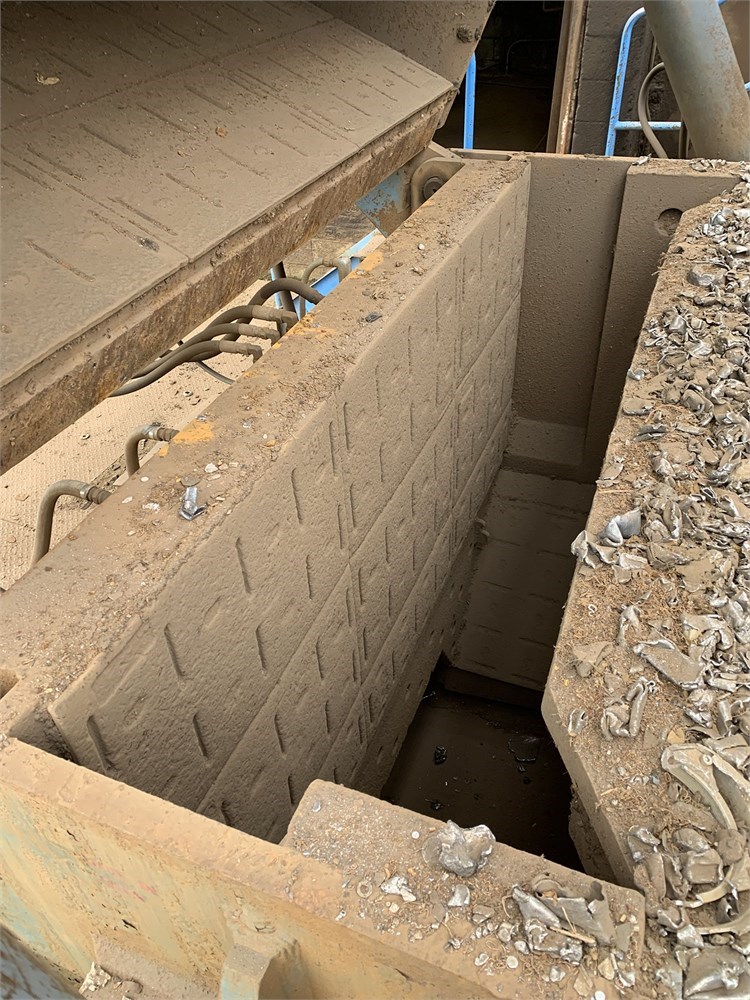

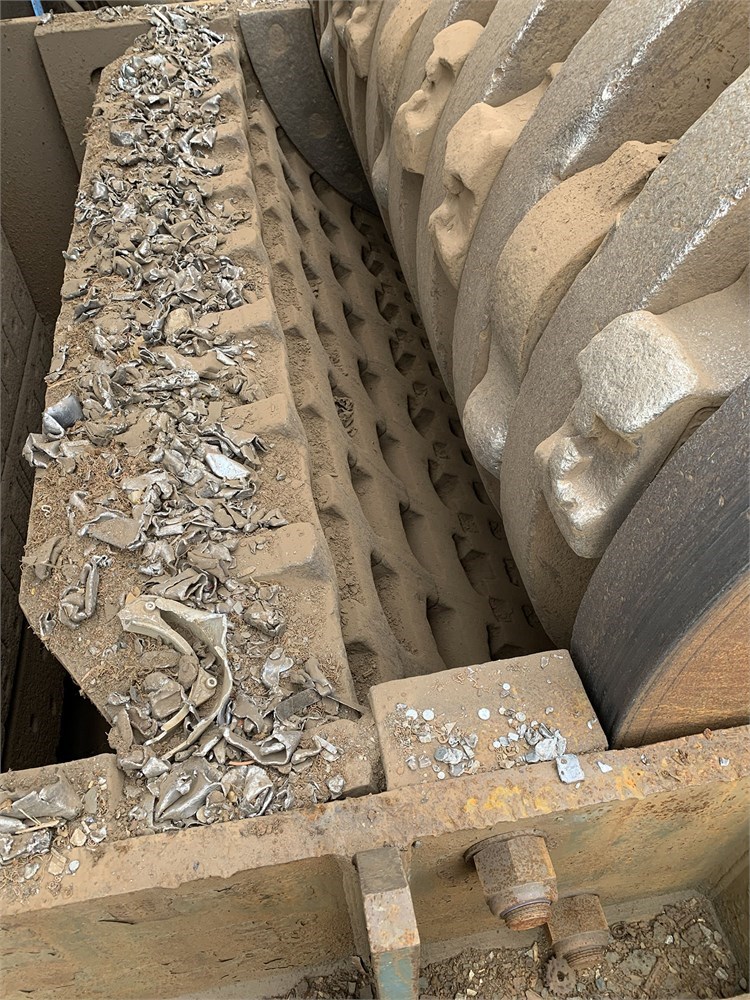

14. To include all spare parts, liners, hammers, grates, rotor hammer pins, rotor tie pins and other parts too numerous to itemize, and was taken out of production when the company was sold.

**A complete list of items and serial numbers to be determined at a later date between AIM Recycling and DADE Auctions Inc.
Sale does not include the building that houses the non-ferrous line.

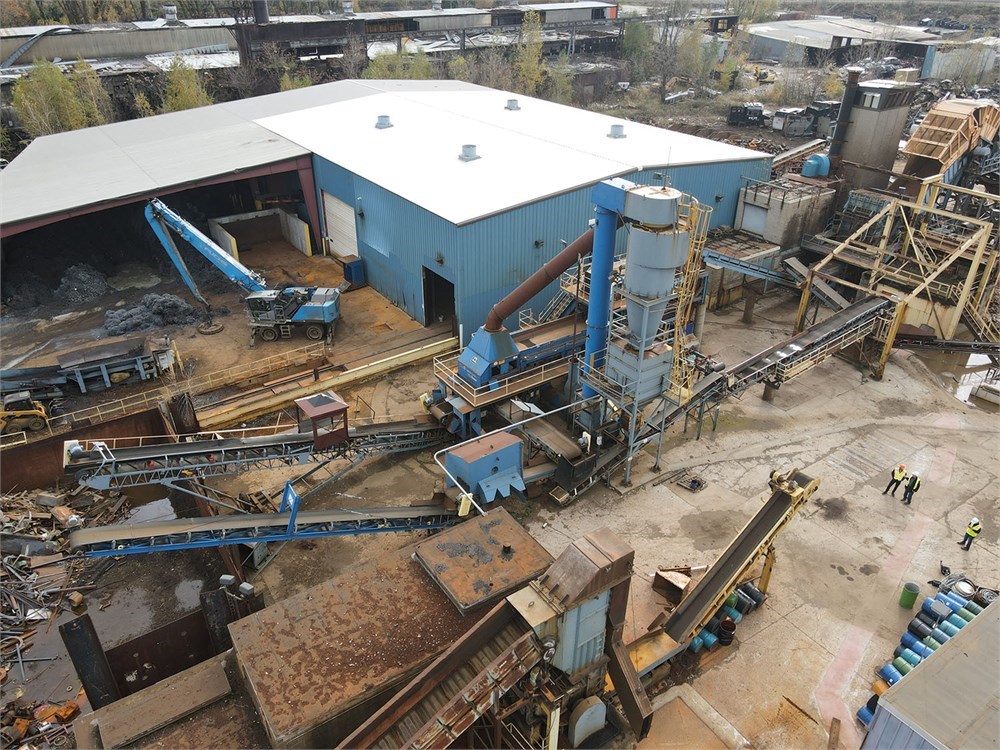

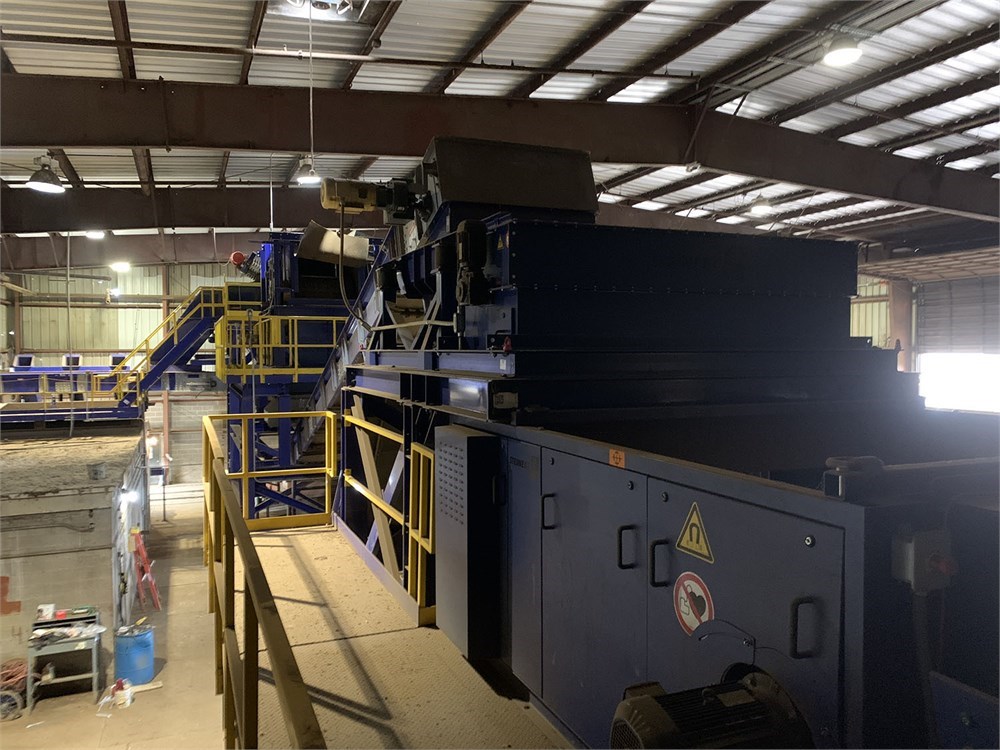

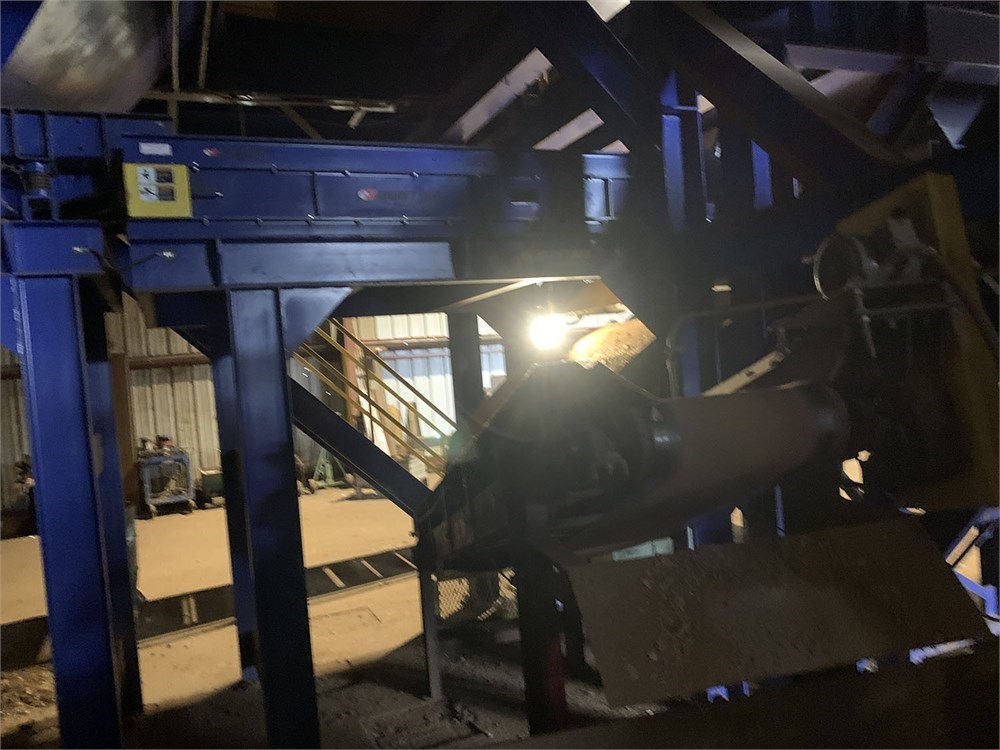

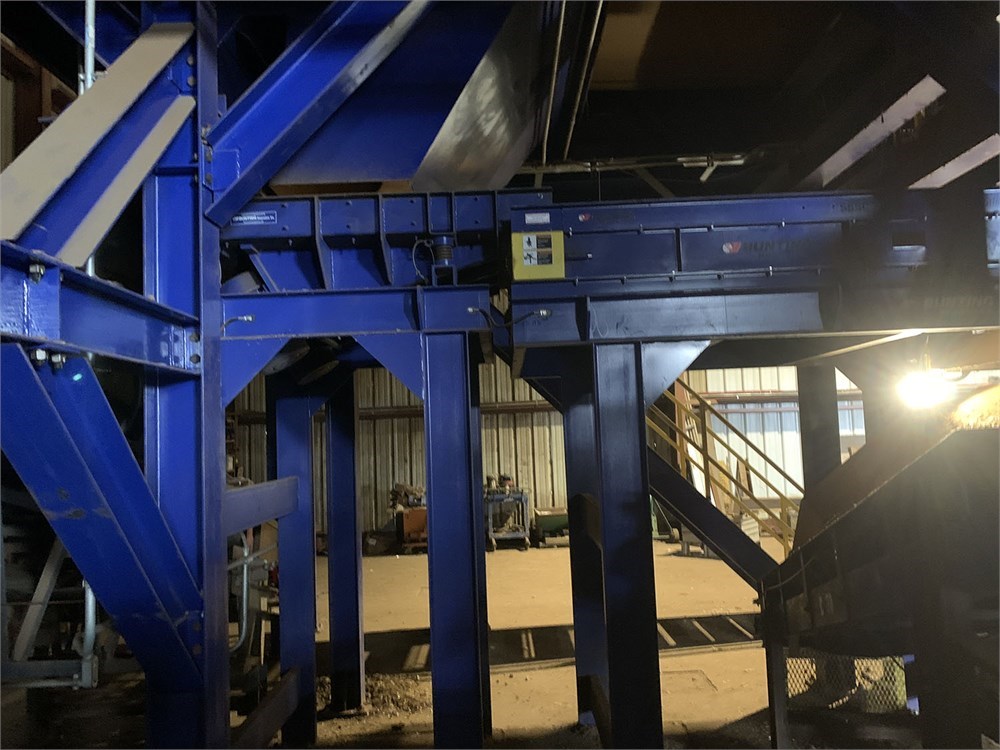

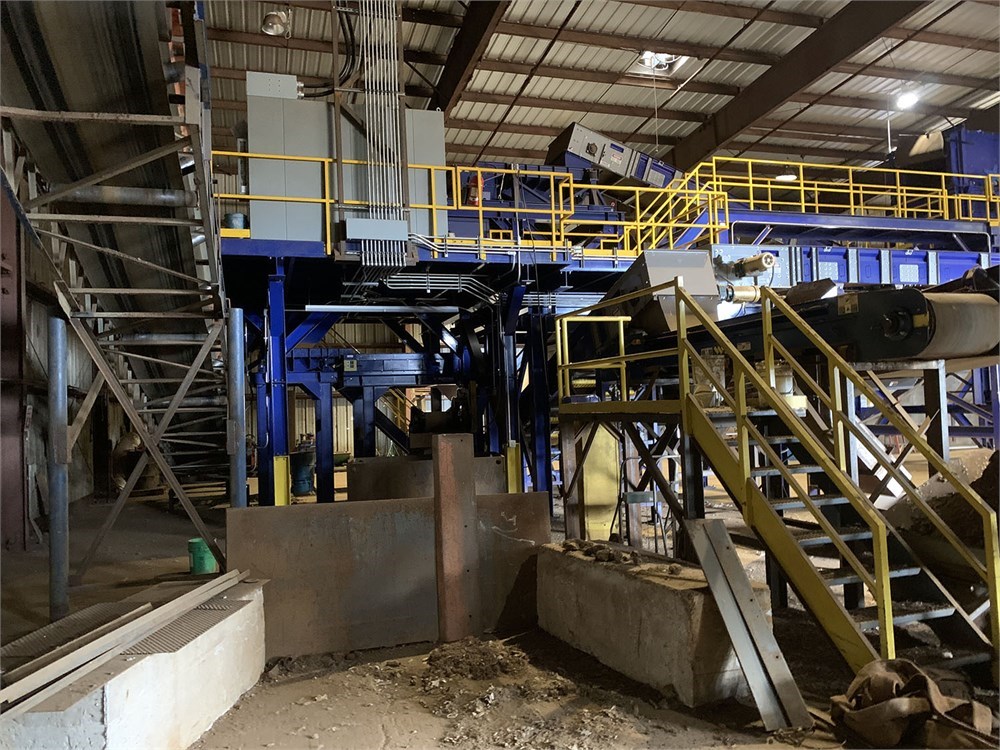

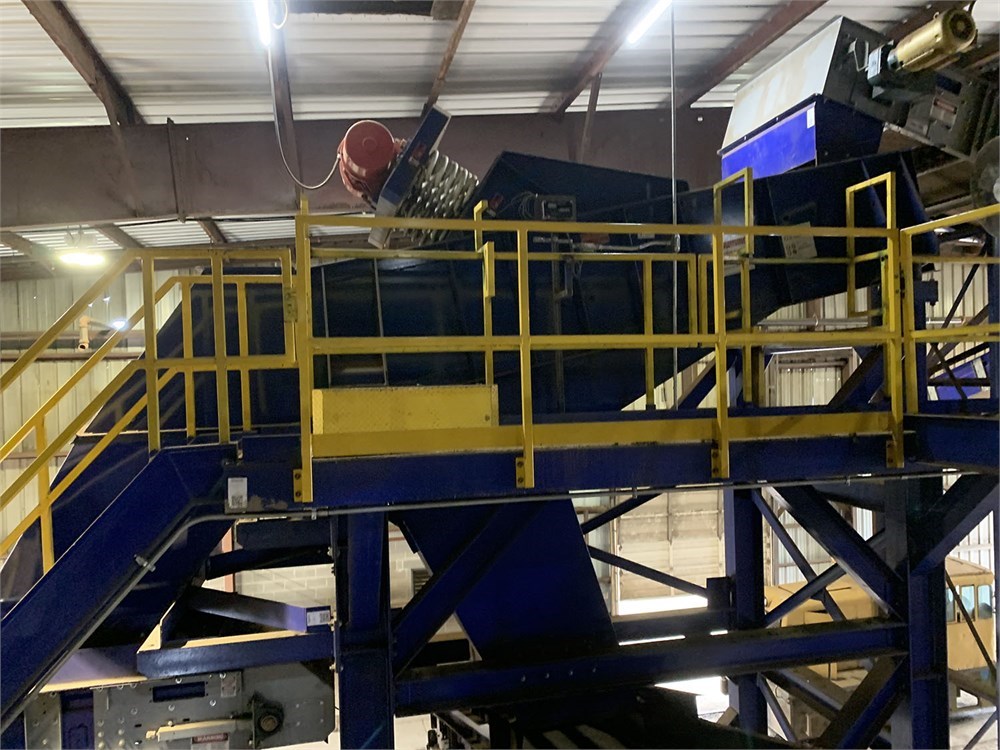

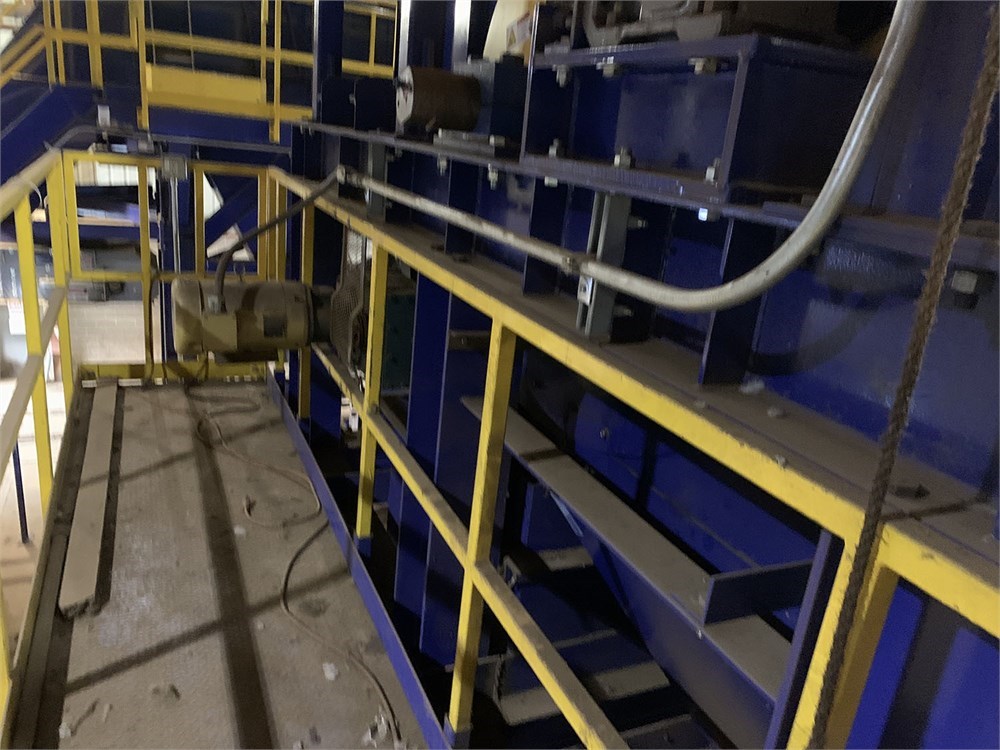

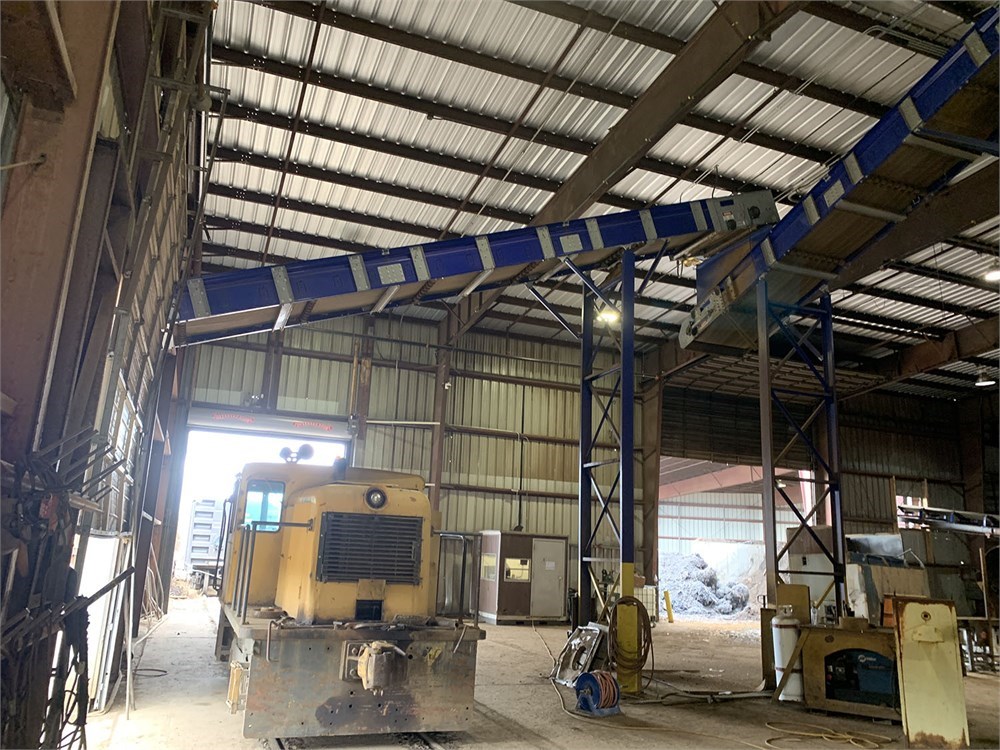

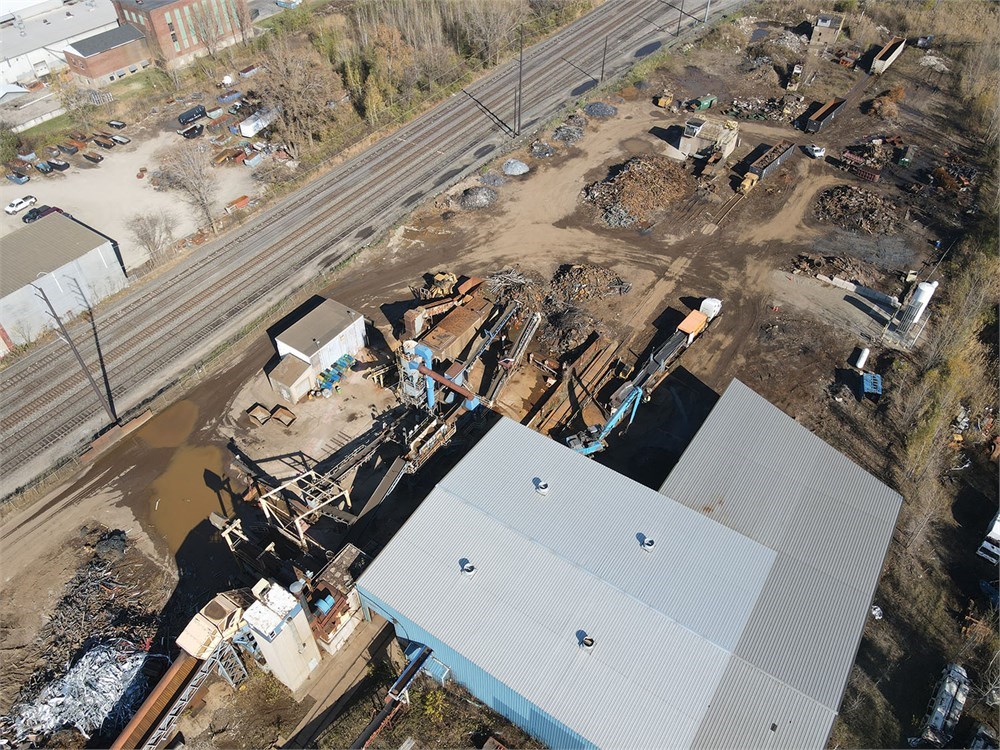

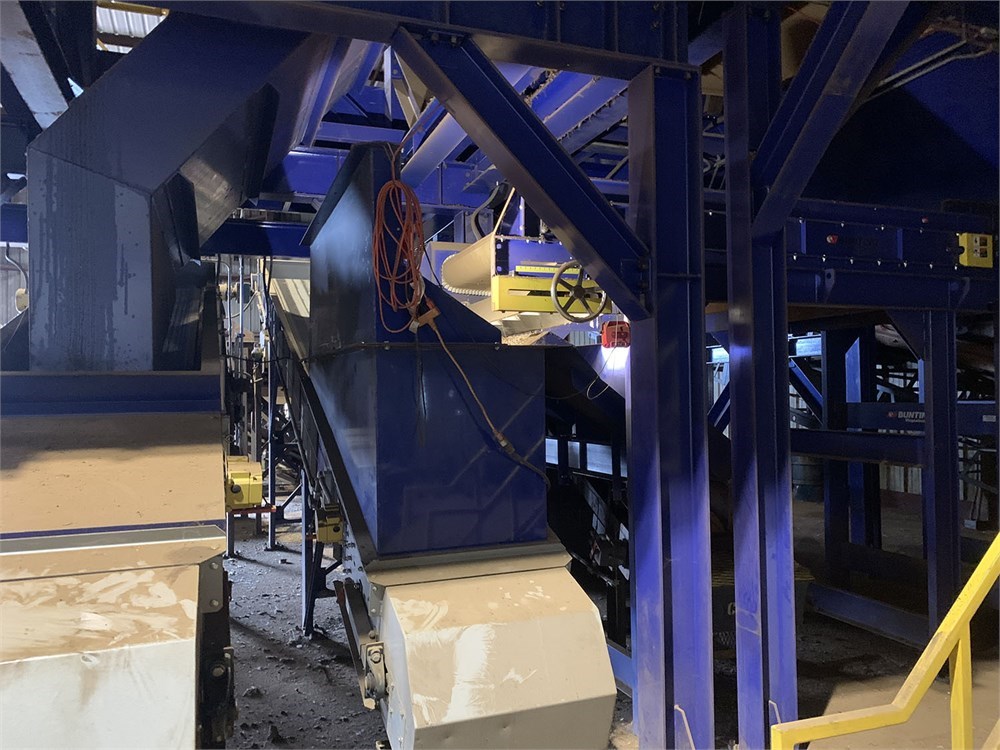

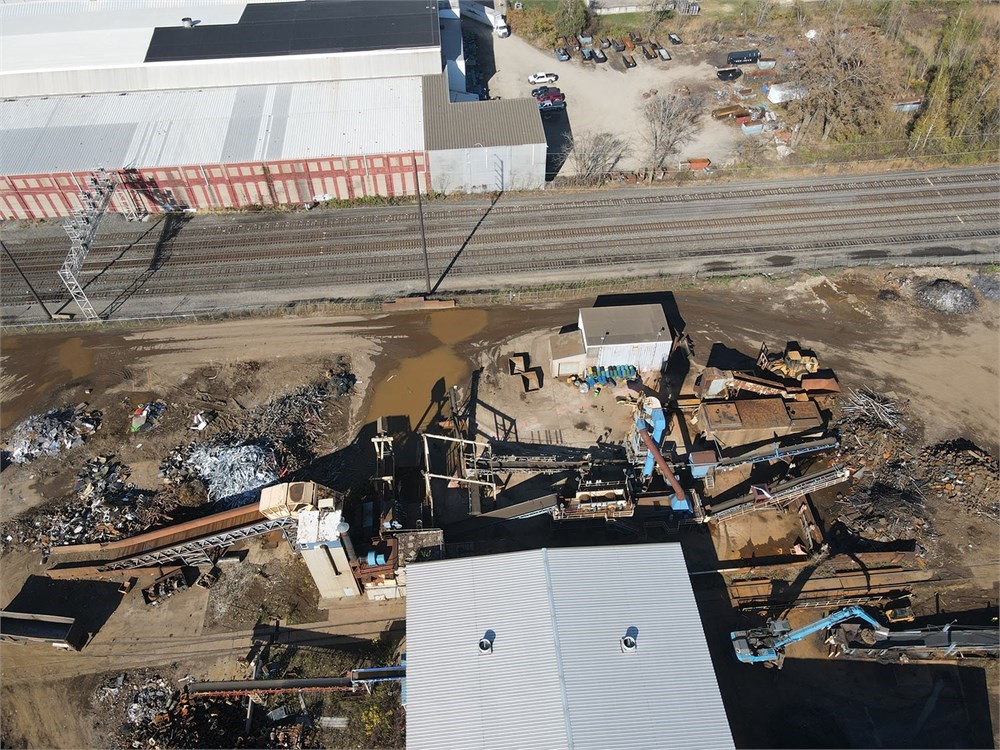

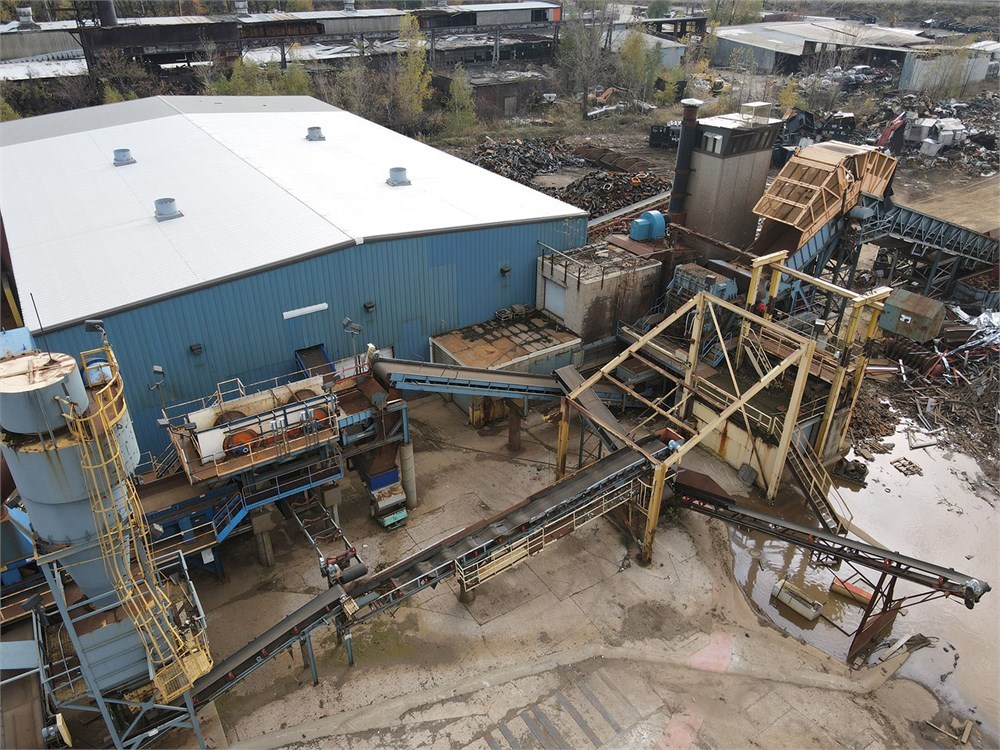

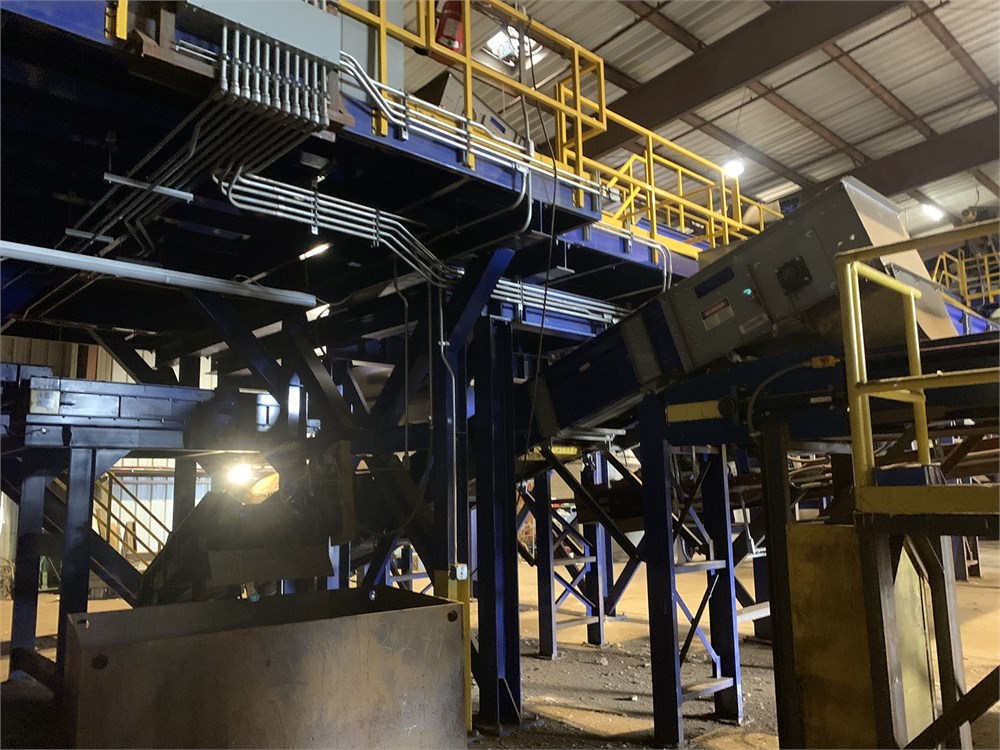

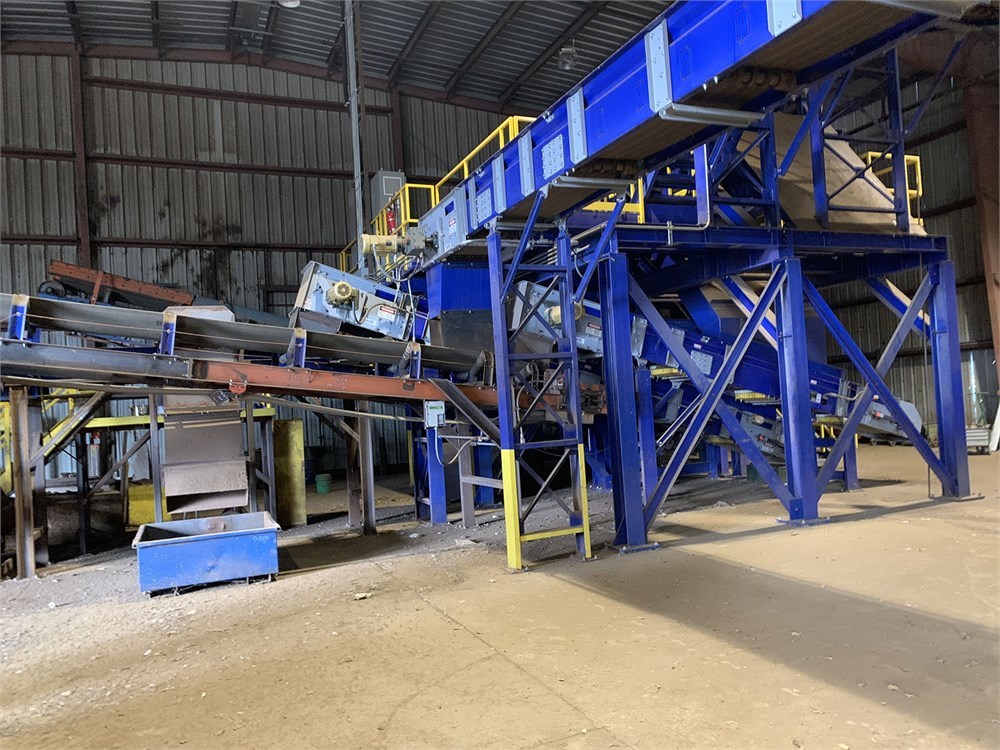

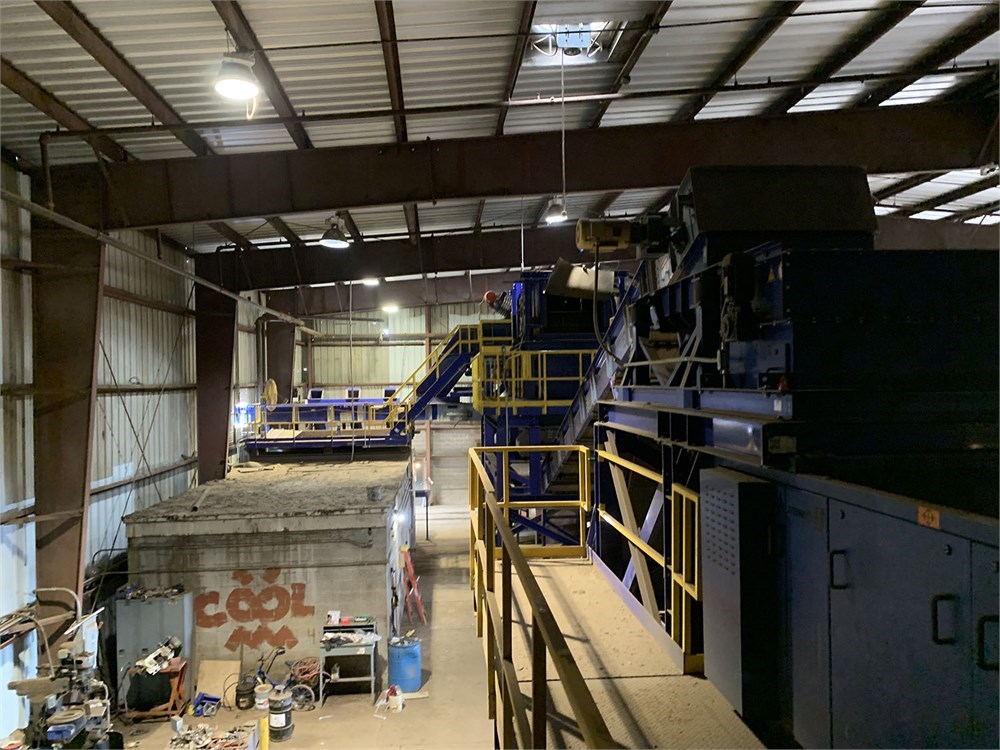

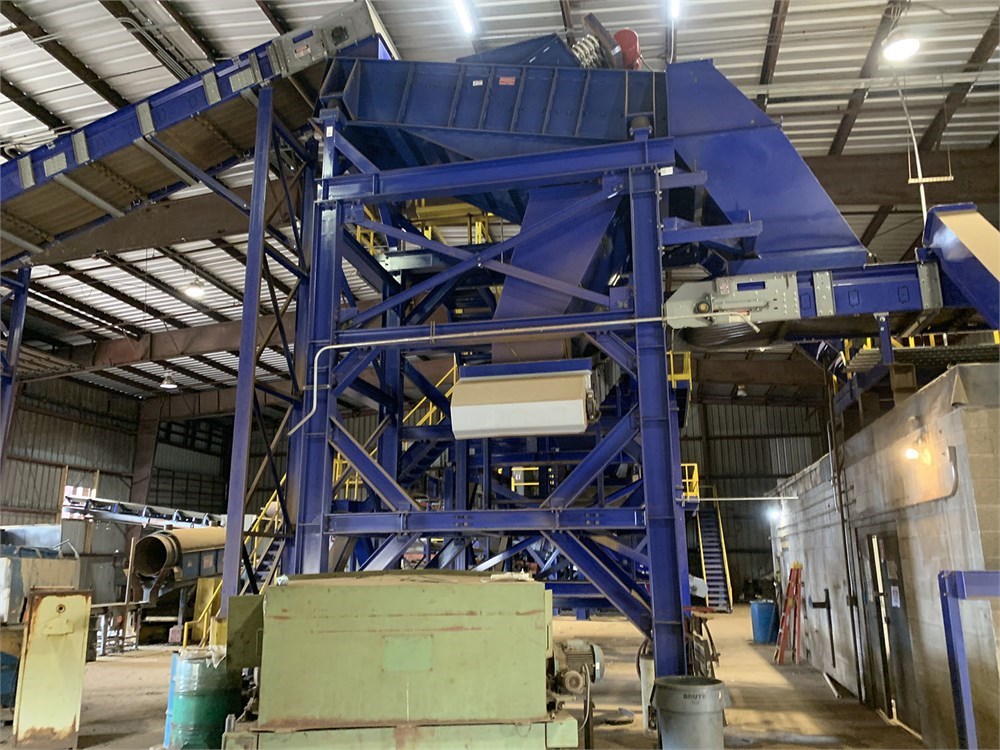

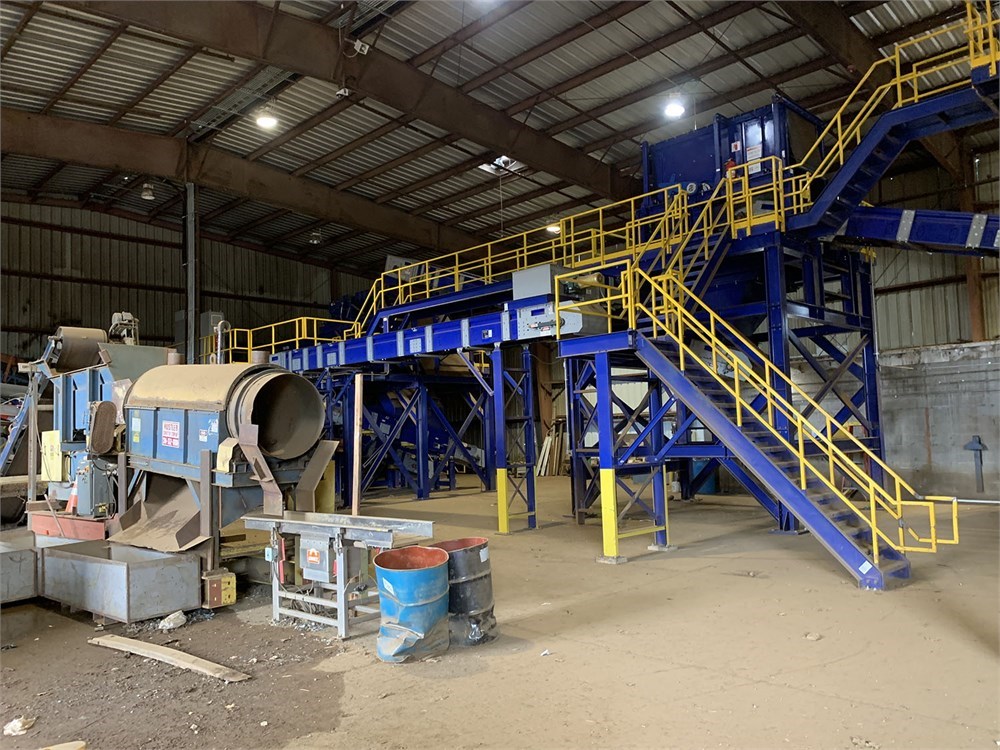

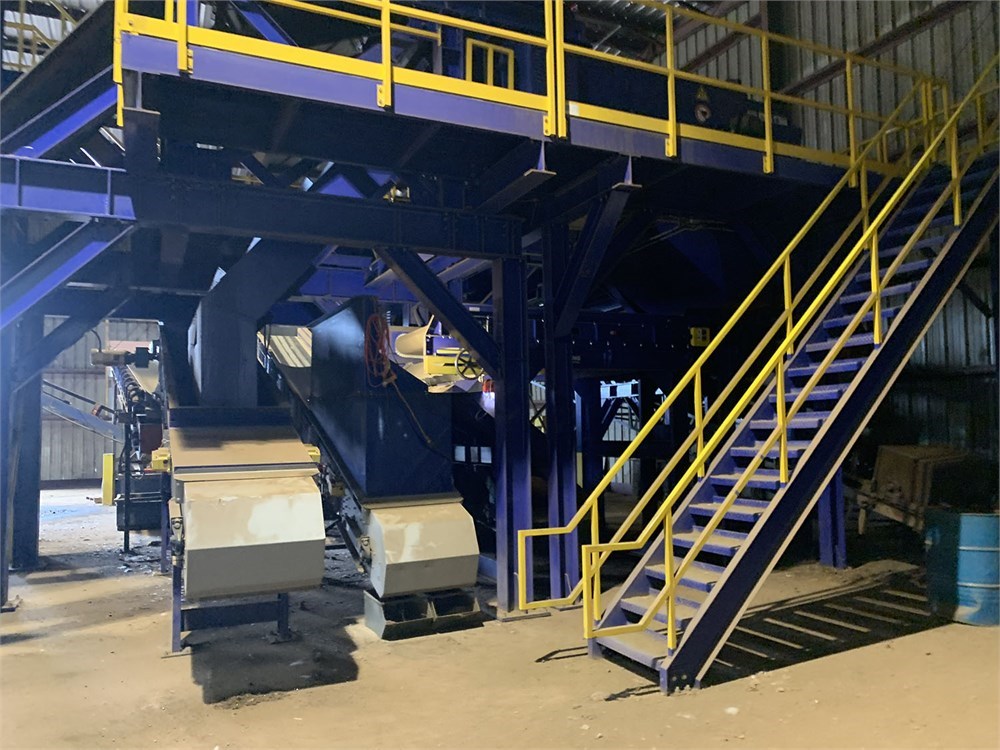

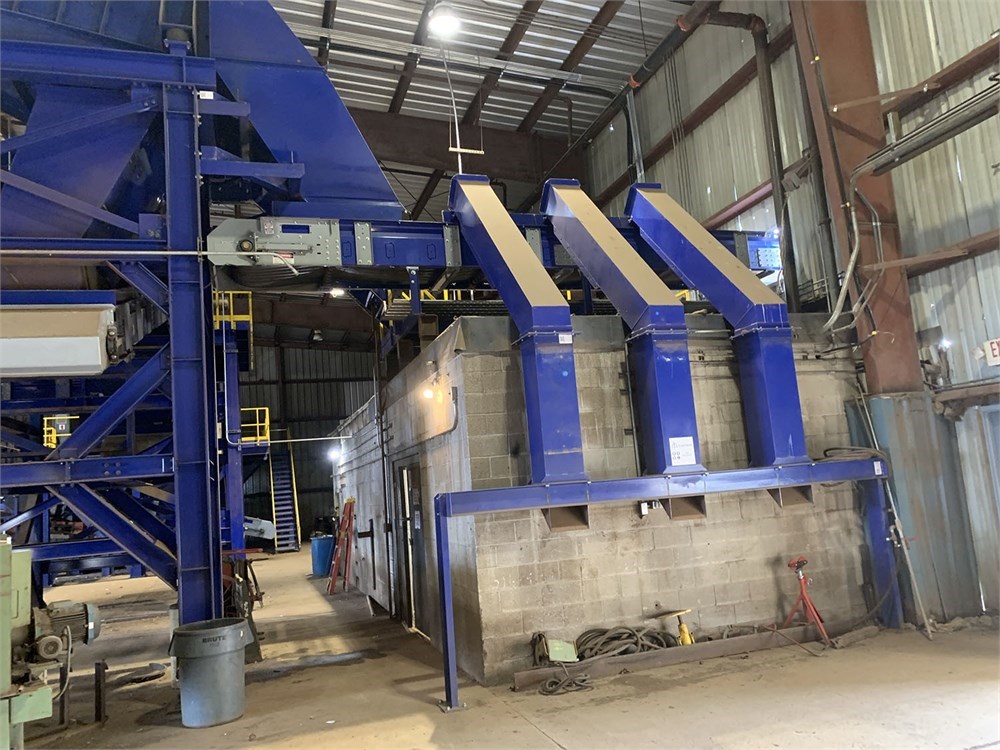

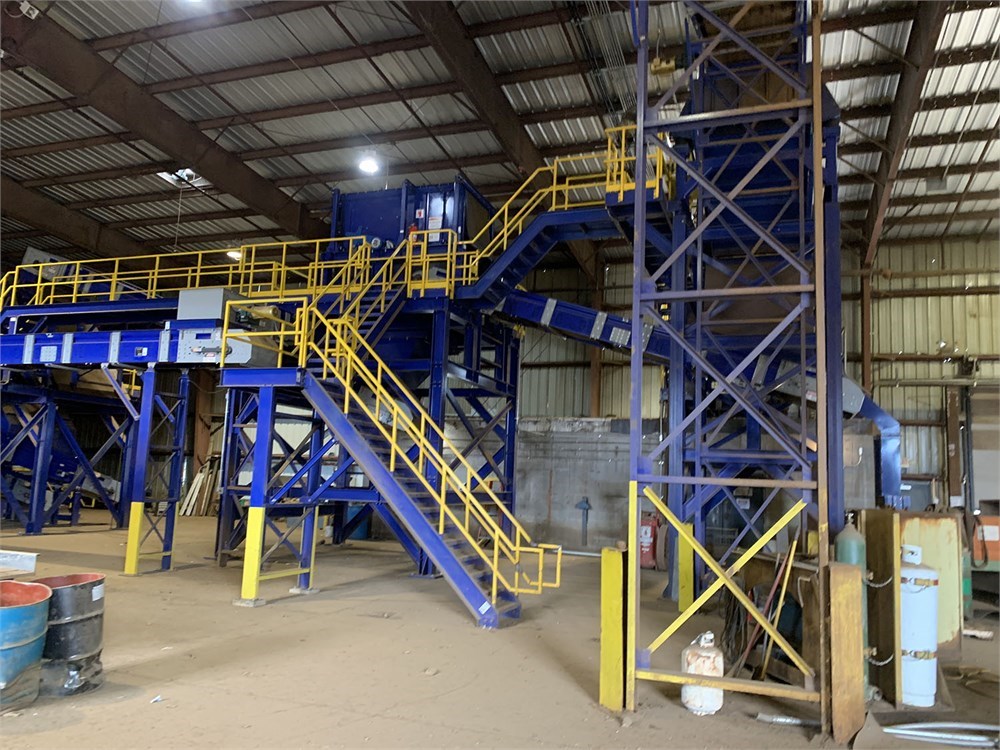

At the same time the shredder was modified, Wendt installed a NF processing line in the building seen in the pictures. That line was shut down at the same time for same reason. Both systems have been idle since 2019. Below is a list of the Wendt NF system.

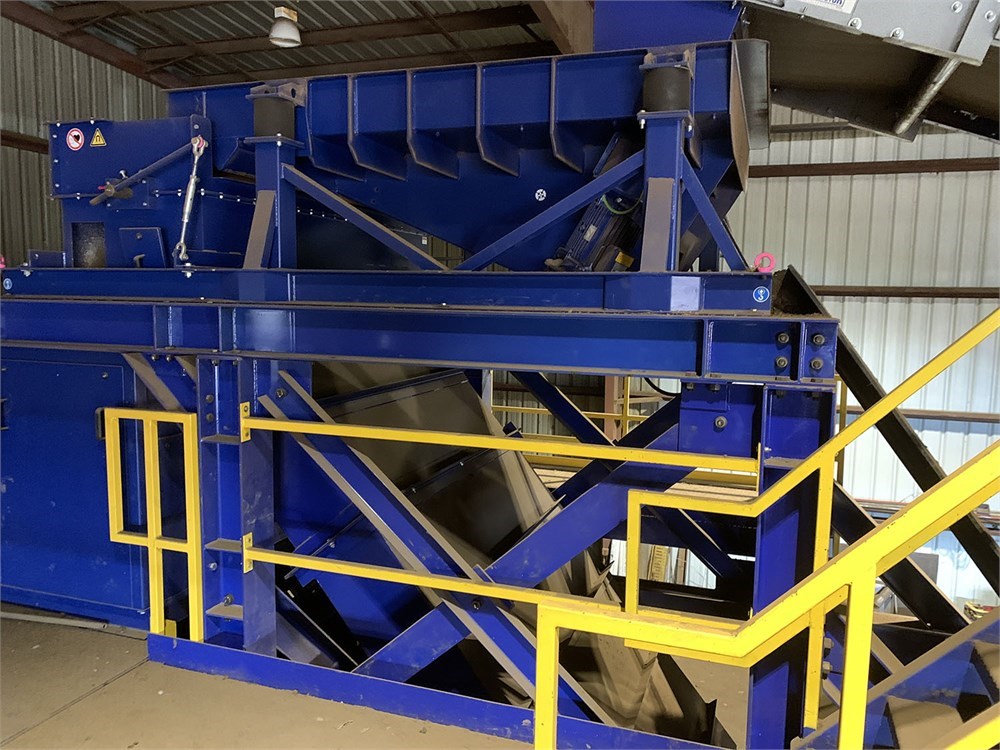

1. Finger screener & screener tower
2. 48” X 48” drum magnet
3. 80” overfed drum magnet

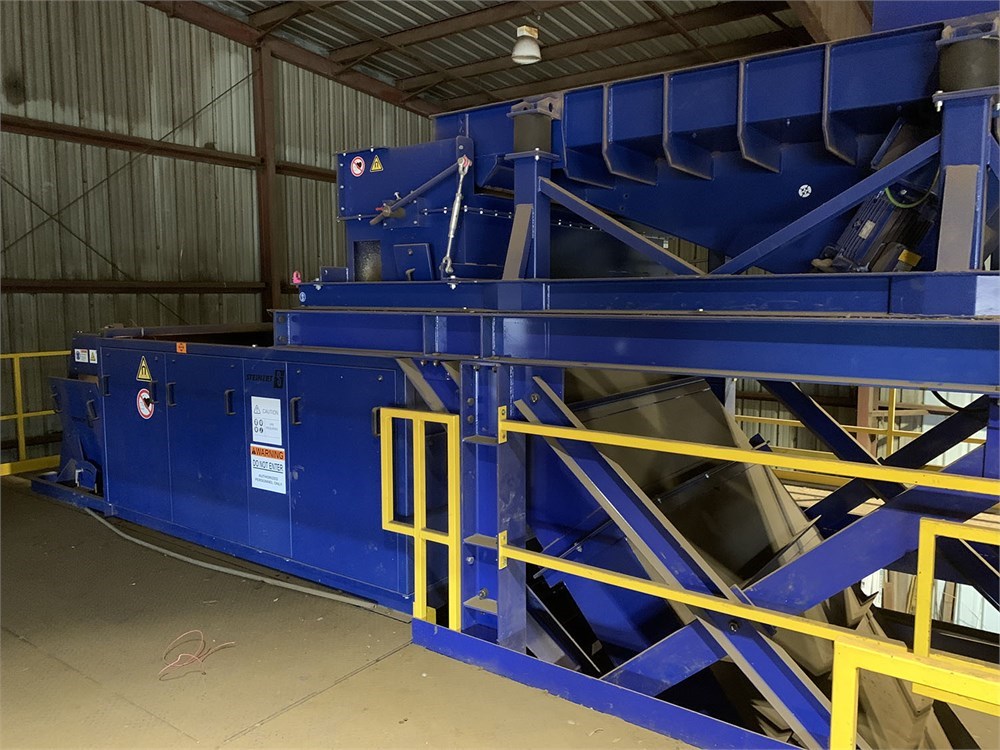

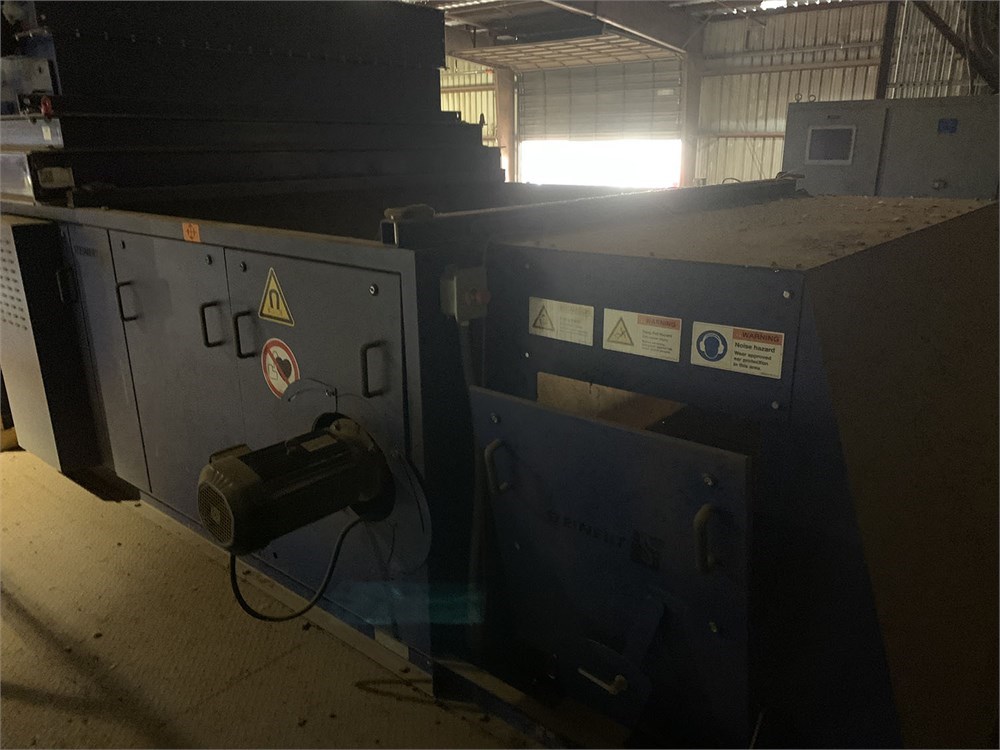

4. Steinert 80” standard ECS
5. Bunting magnet
6. Platform 1

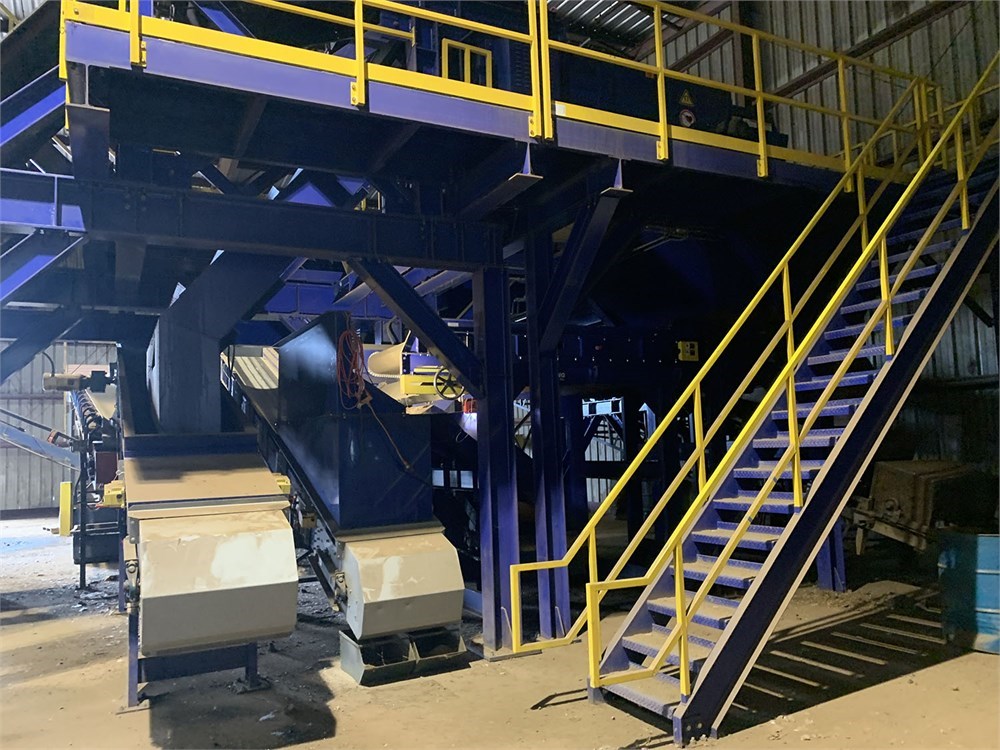

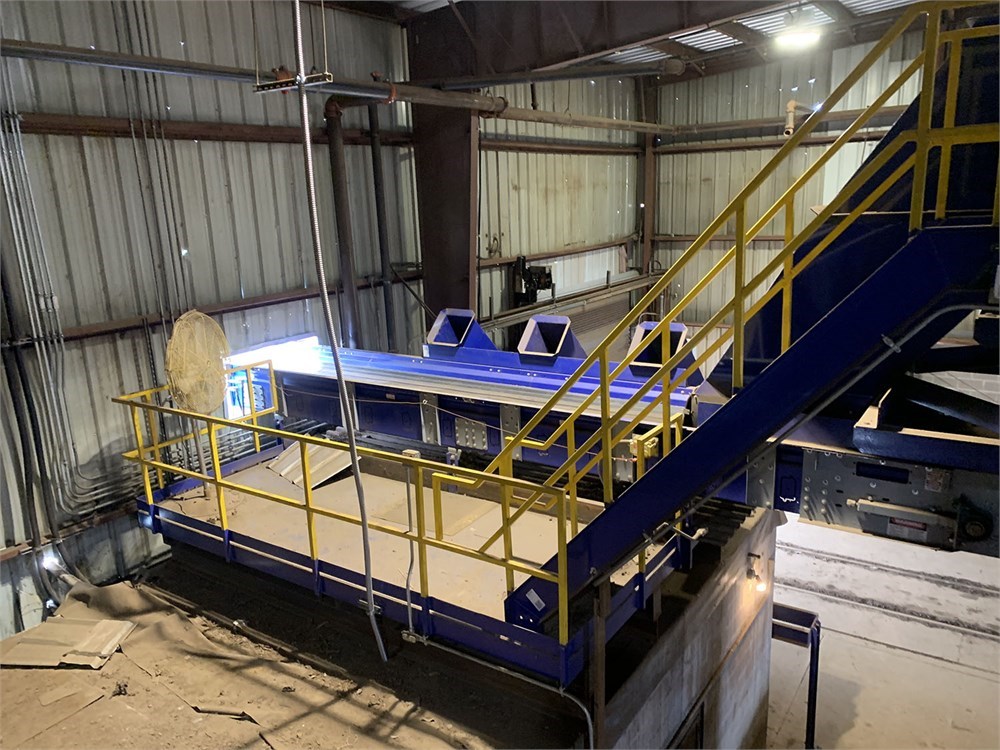

7. Picking platform

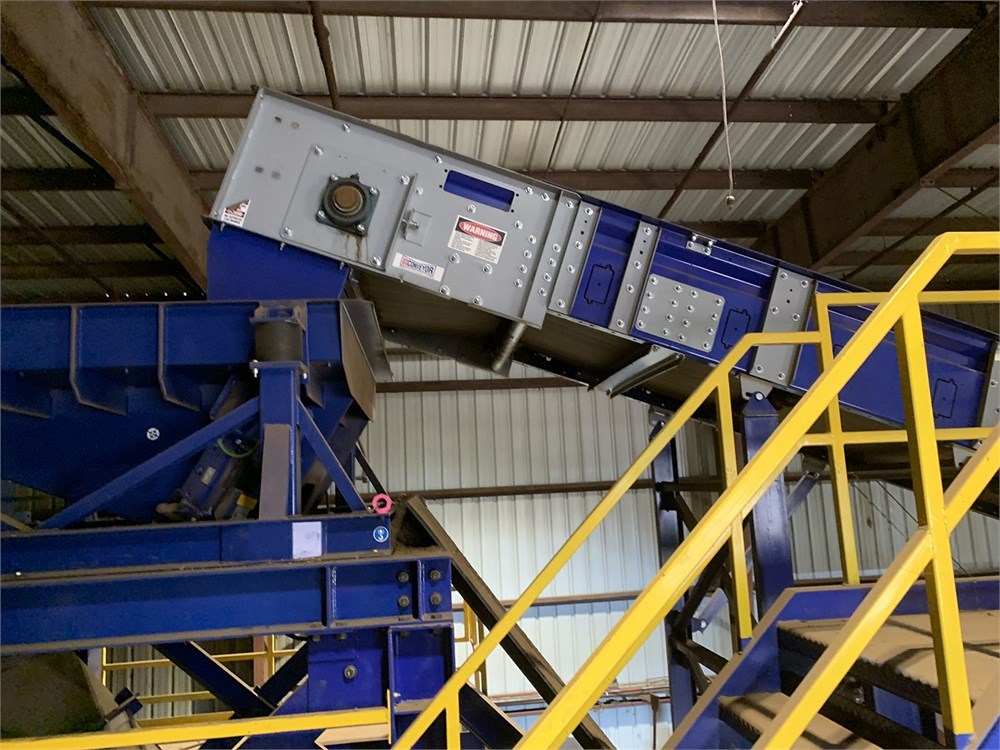

8. 11 conveyors
9. 3 stairs & railing

Drawings are provided in the documentation attached to this listing.

This shredder comes with a substantial amount of new spare parts, grates, hammers etc.

Buyer will be required to rig this equipment down and load it on their trucks. We have CSX rail availability for rail transportation which must be arranged by Buyer. Buyer is responsible for all costs associated with rigging, disassembly, and freight.

This equipment is being sold as is where is.

This shredder and included peripherals is NOT available to buyers in the Eastern provinces of Canada and any attempted purchases by a buyer or representative of a buyer deemed to be acting in bad faith will be null and void.
