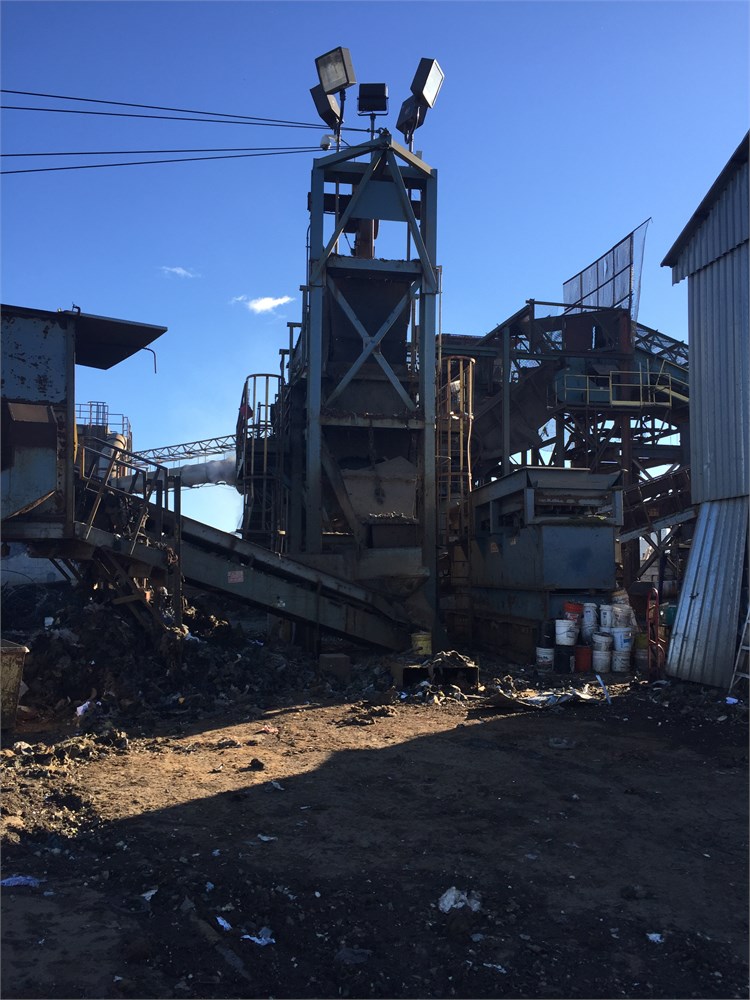

2004 American Pulverizer 60x85 Auto Shredding System

Year: 2004
Serial Number: 8518

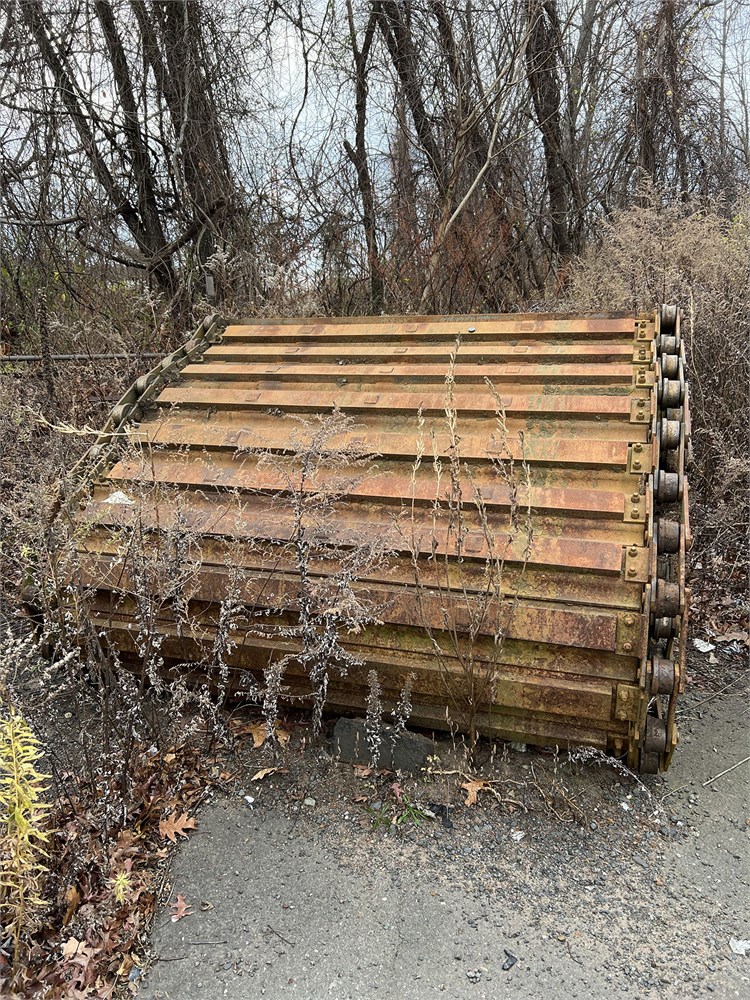

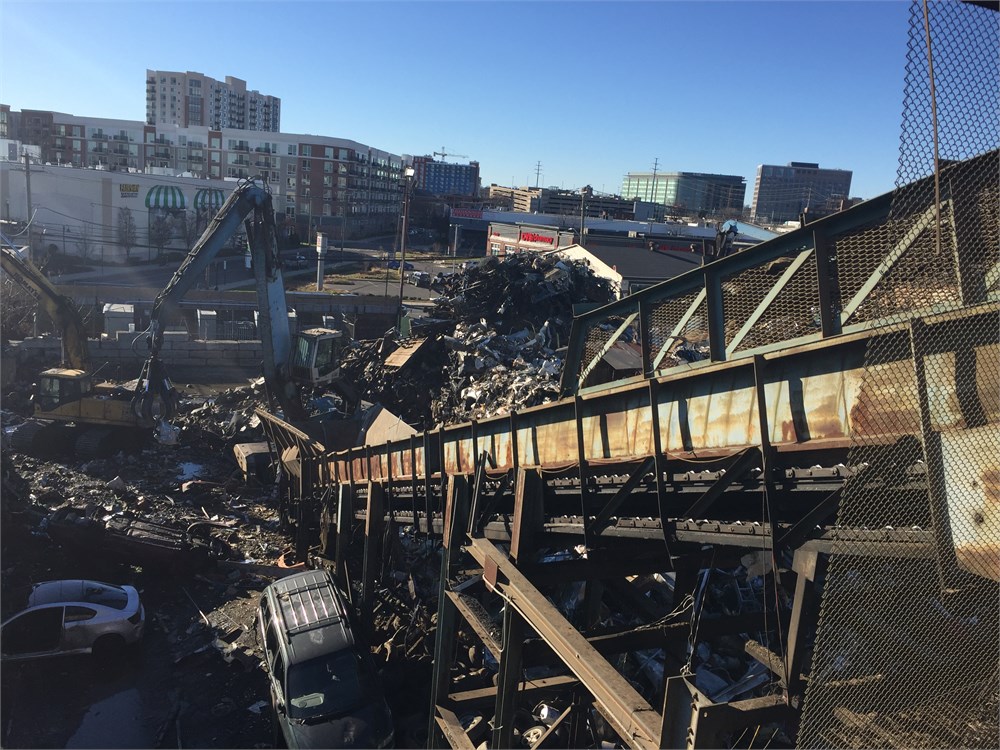

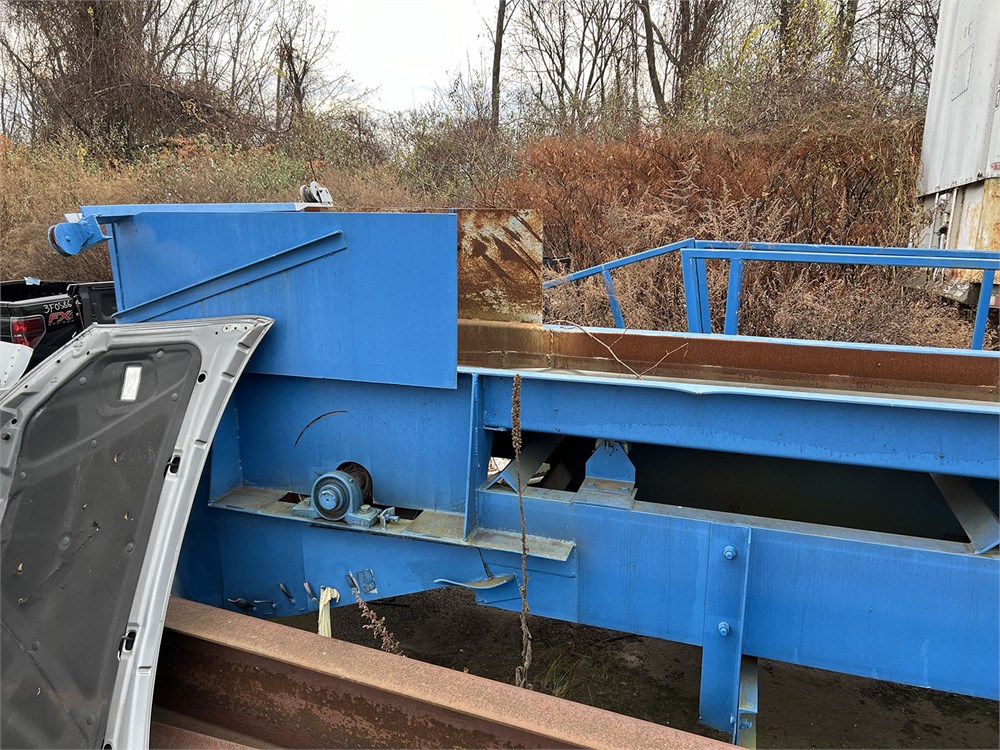

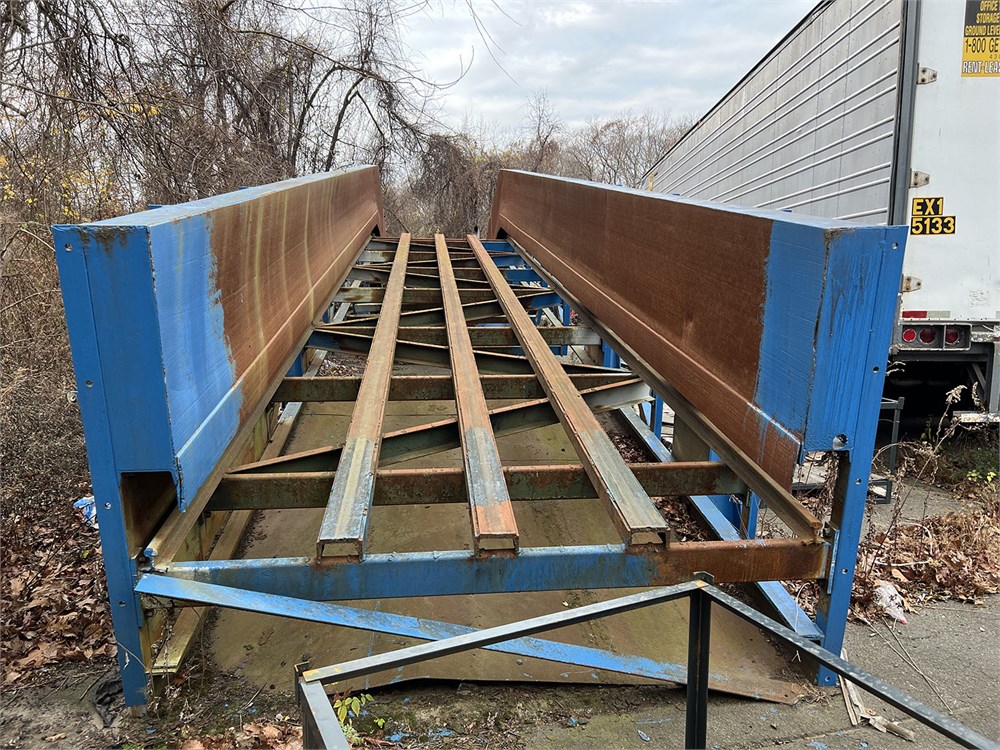

1) Hustler 84” wide beaded pan steel belt infeed conveyor. Belt replaced about 4 months before disassembly as well as rework on the lower feed area.
2) American Pulverizer 60x85 automobile and scrap shredder with the following:

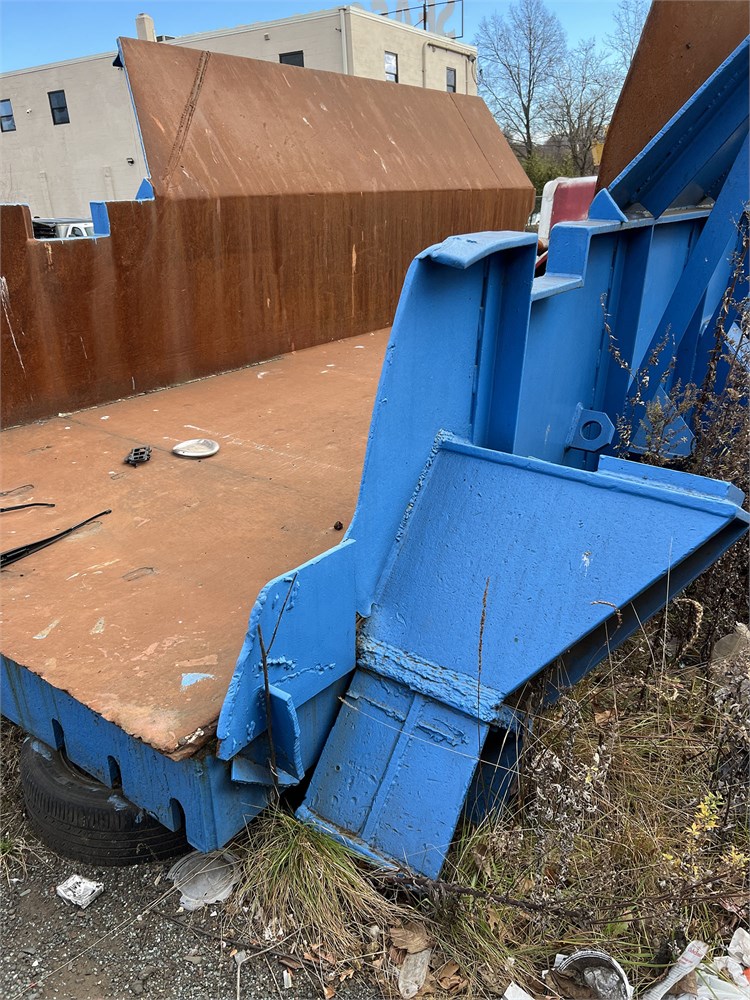

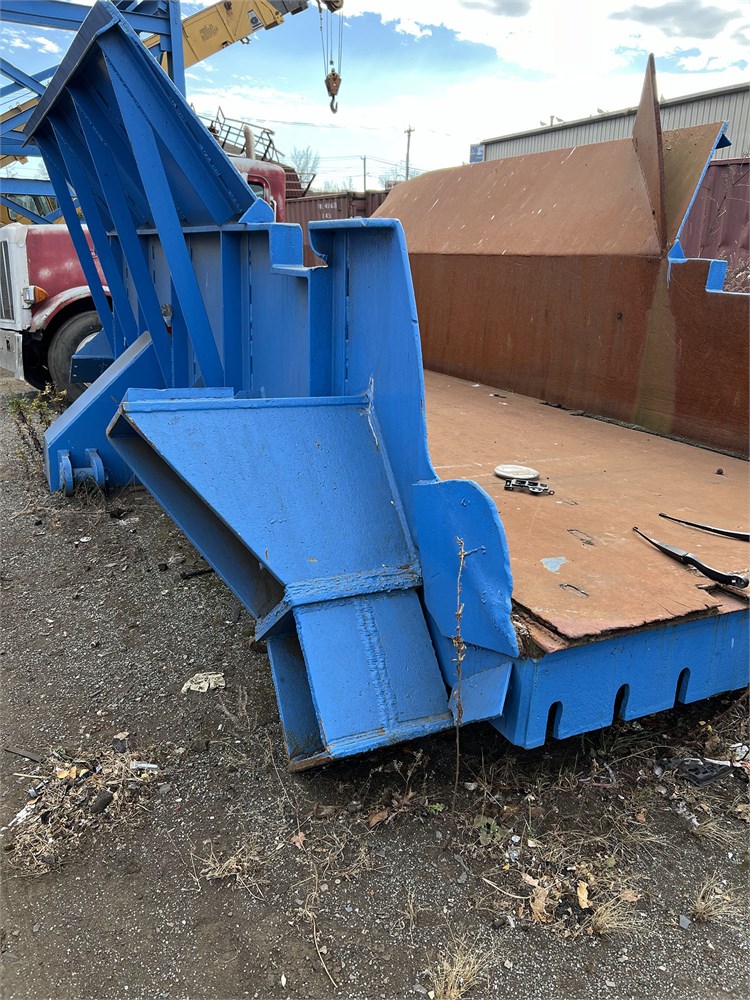

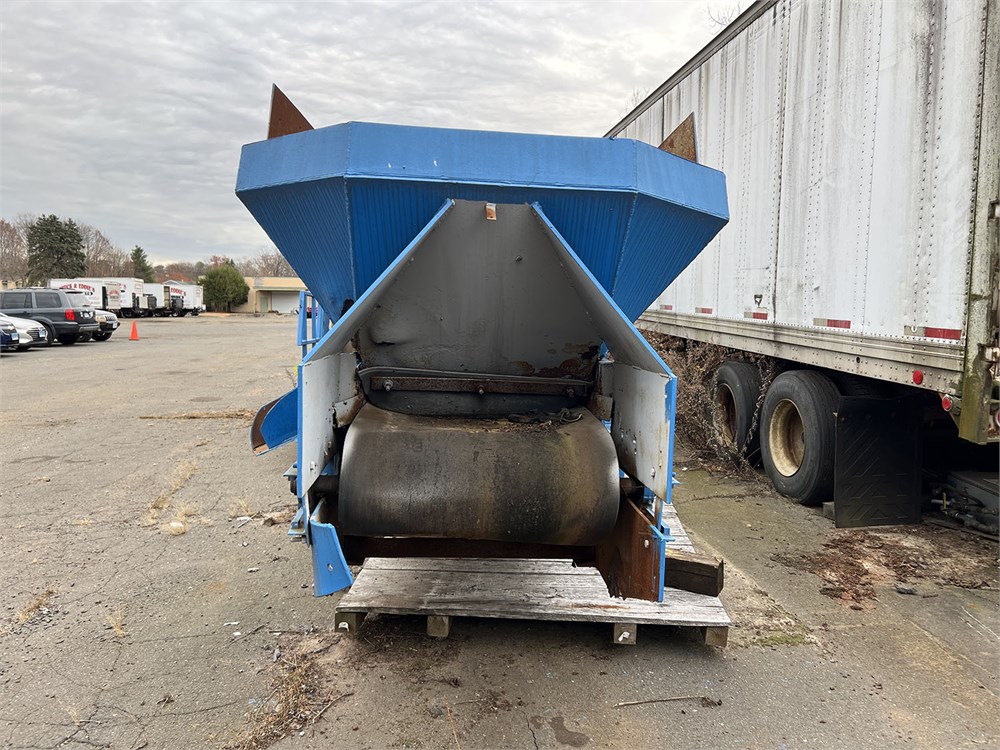

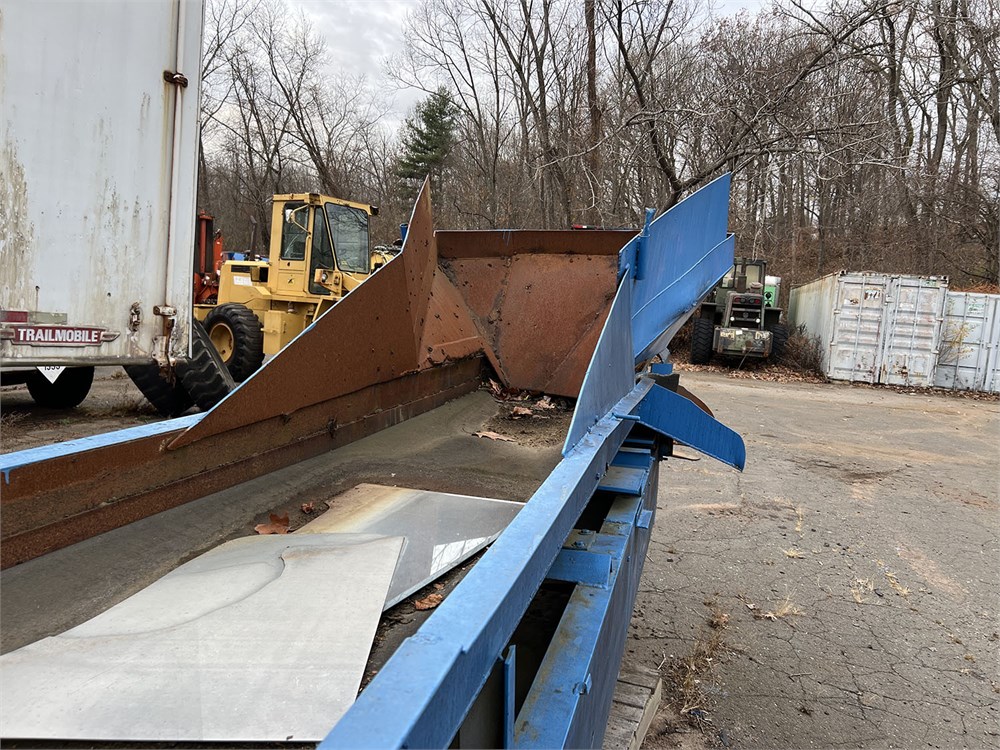

• Infeed chute and supports.

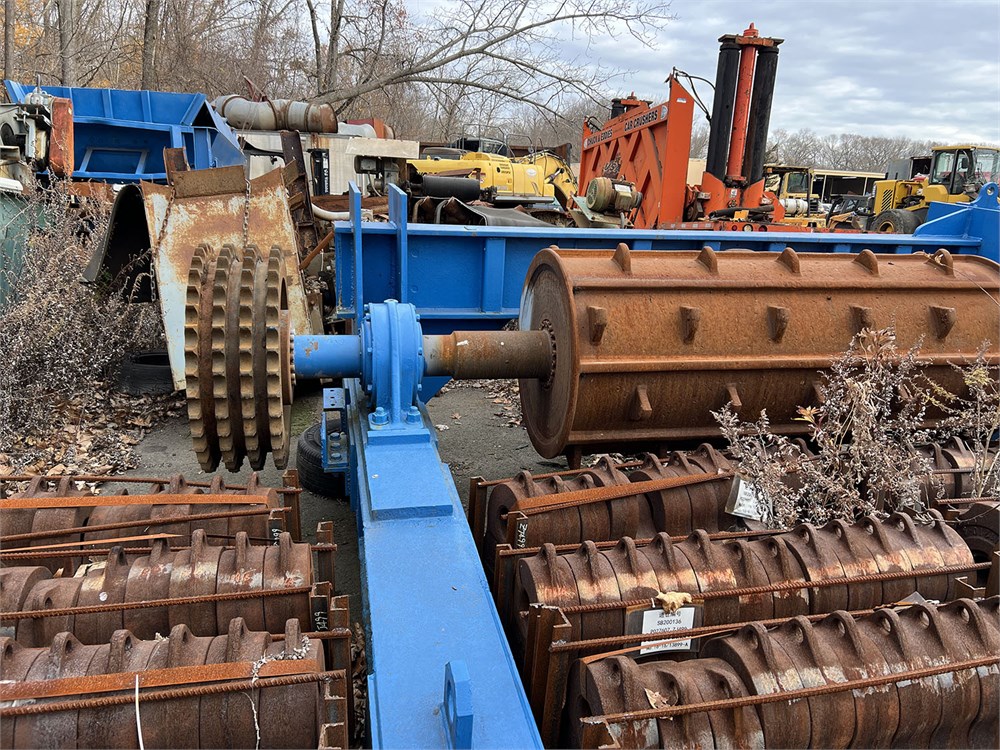

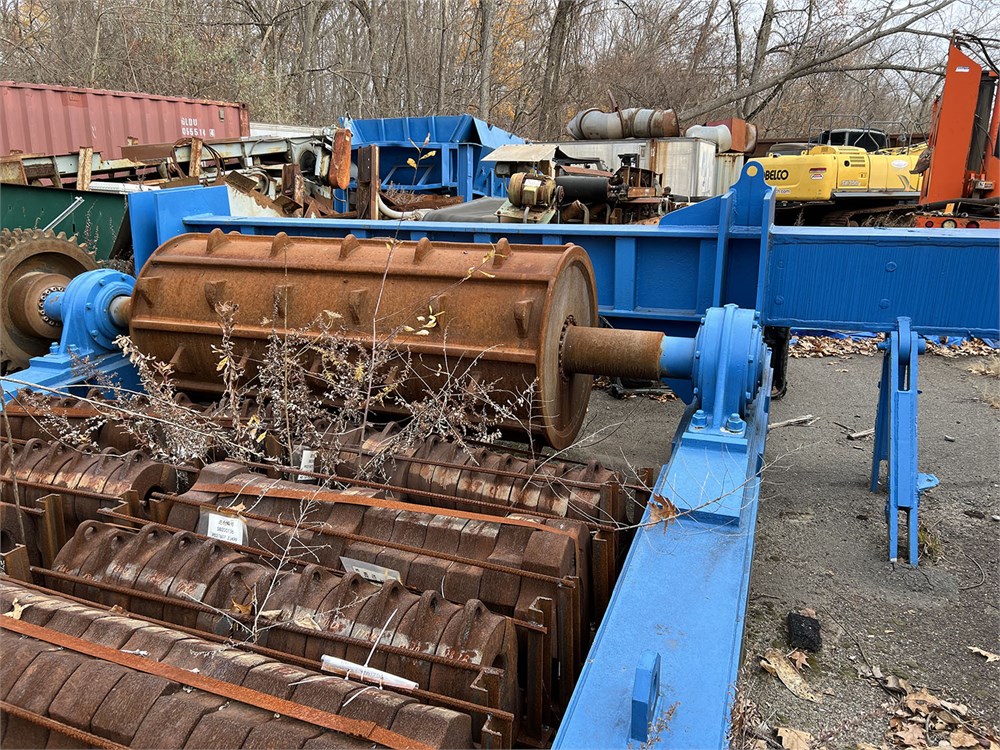

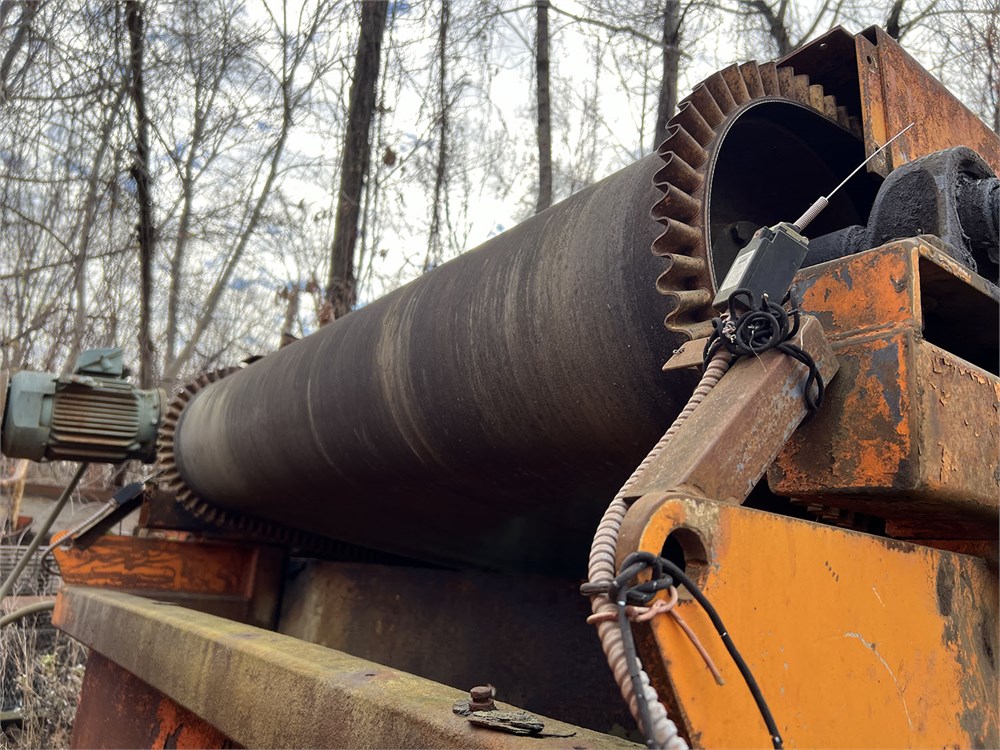

• Dual roll hydraulic feed roll system with hydraulic power unit. NEW feed rolls & bearings which are not installed.

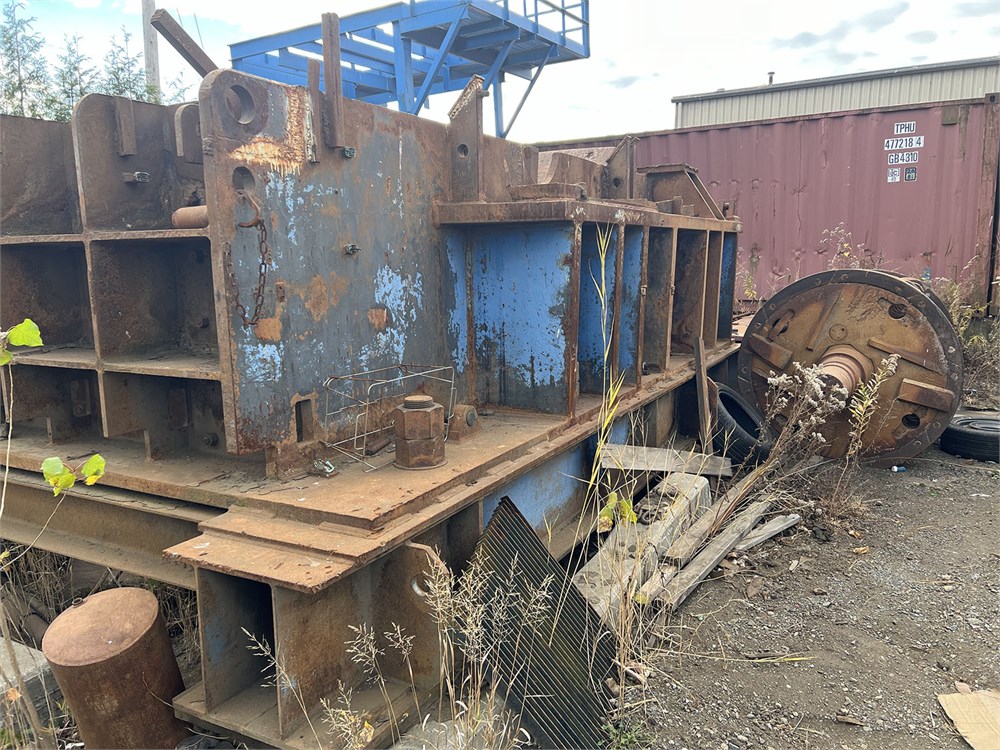

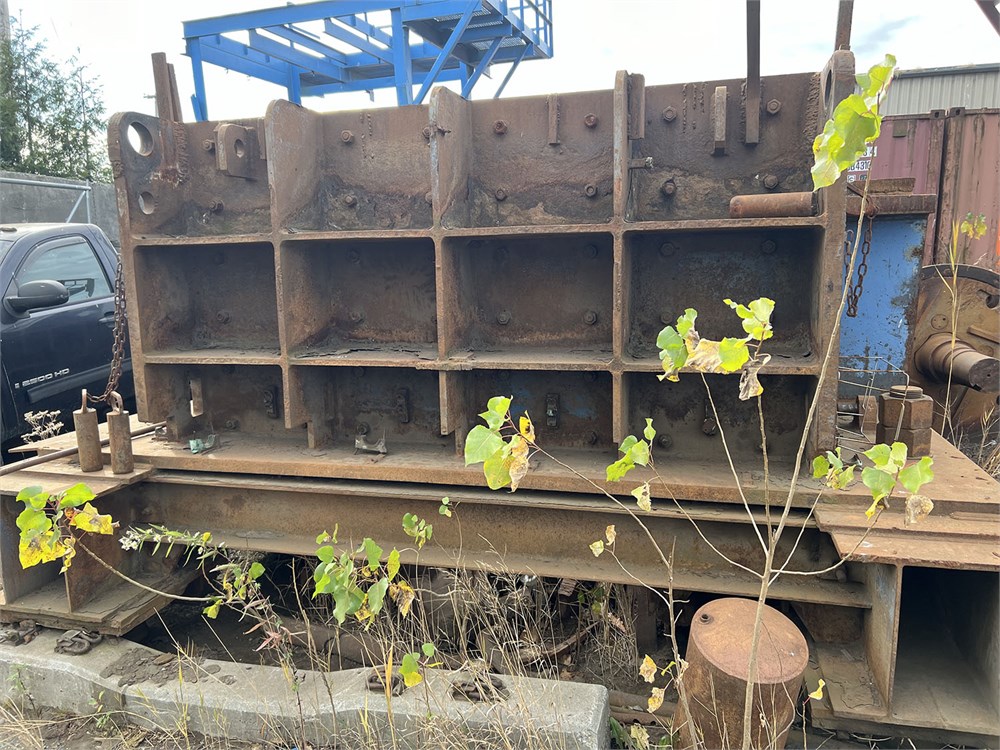

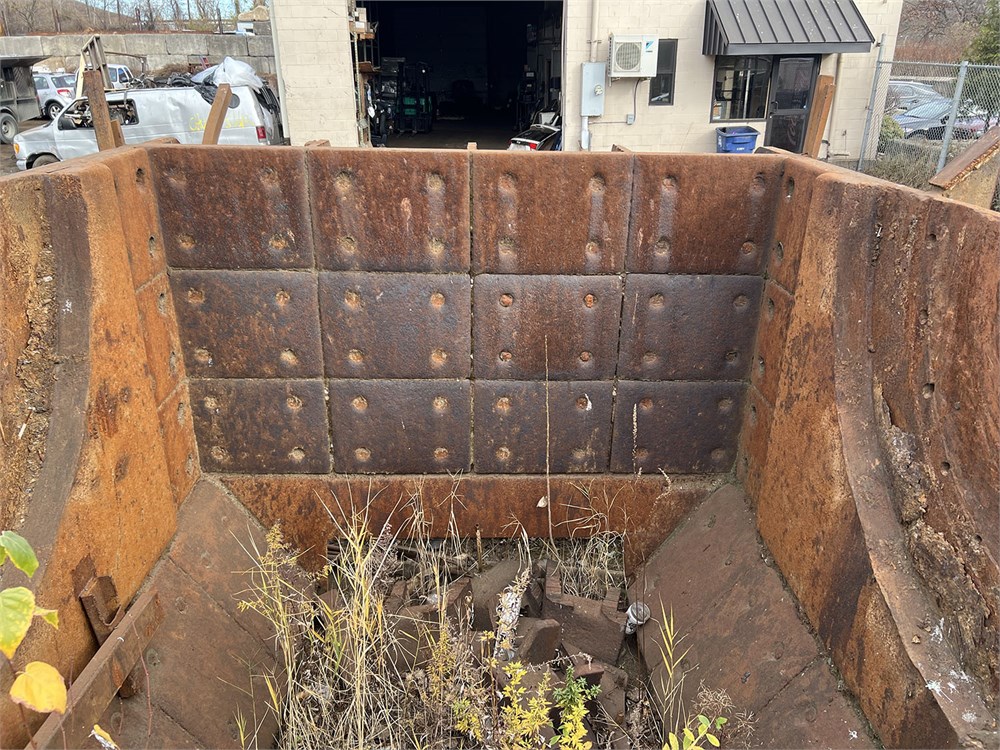

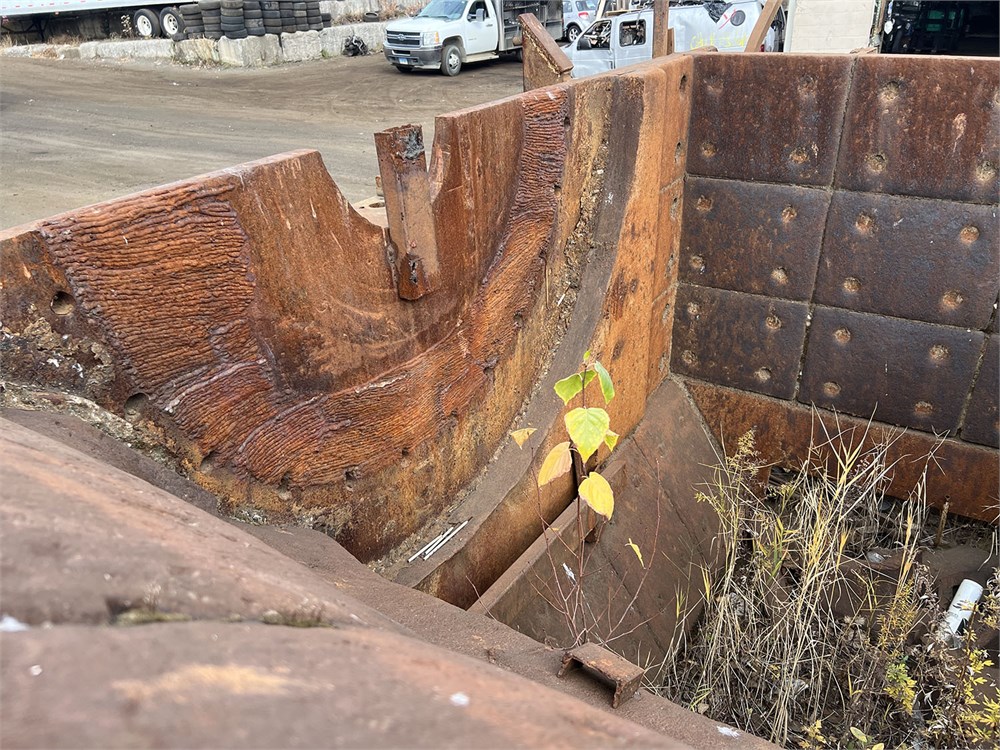

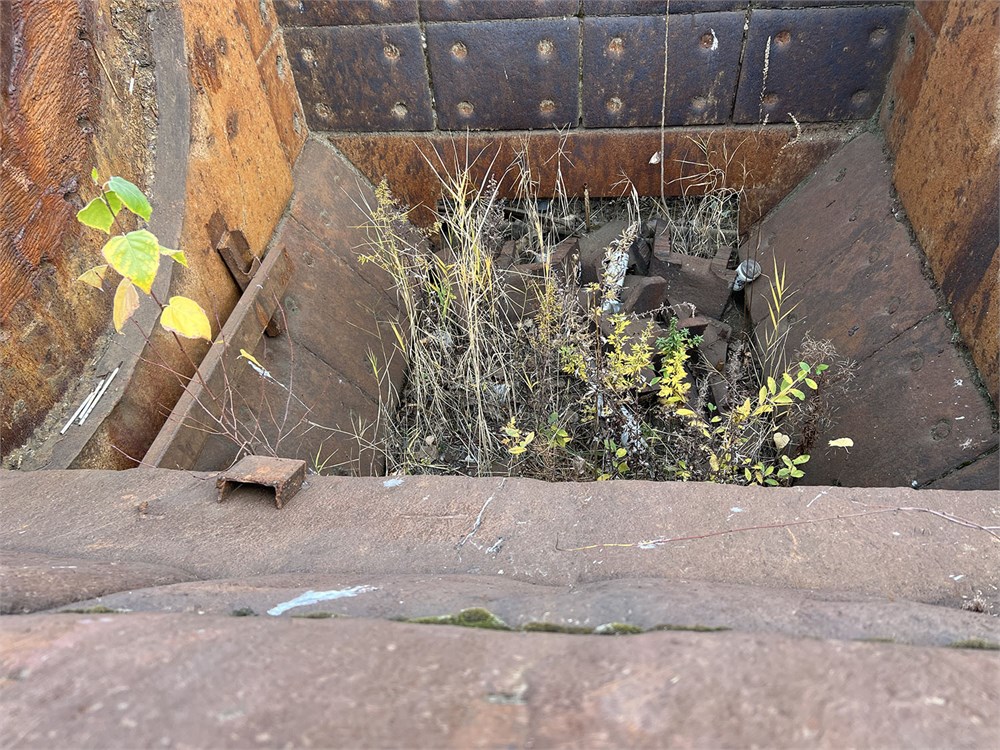

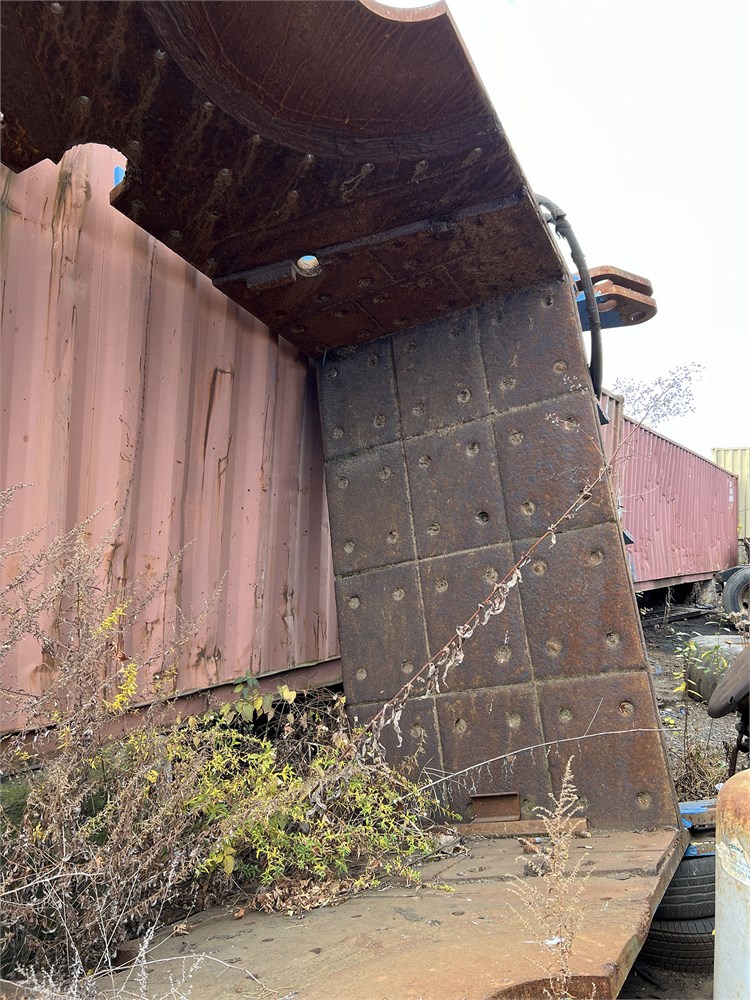

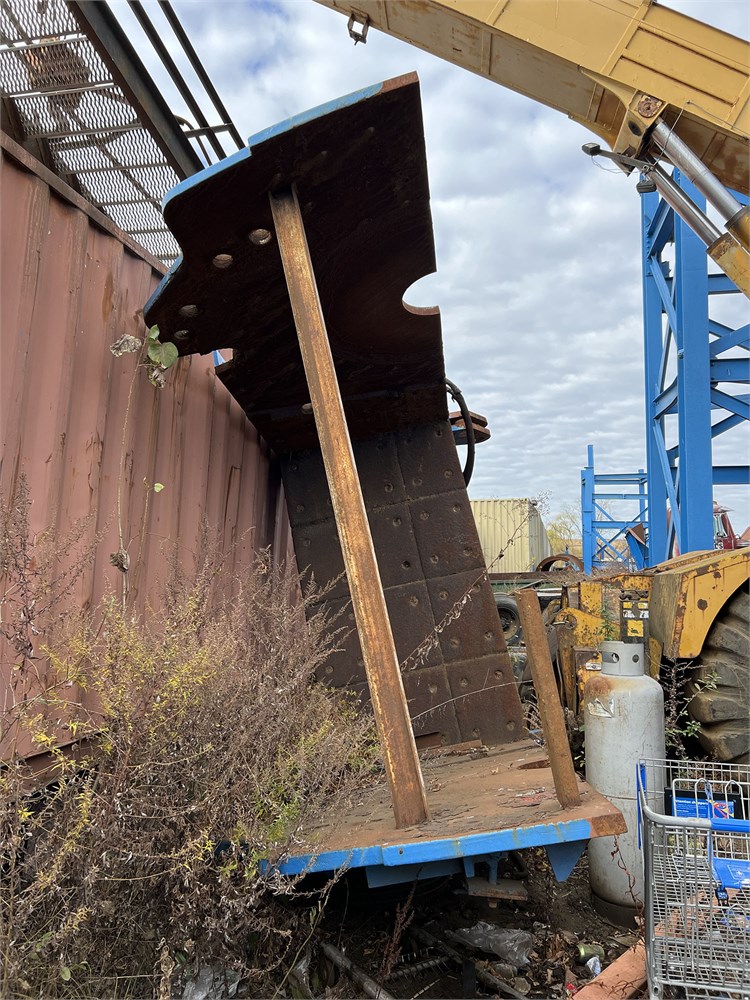

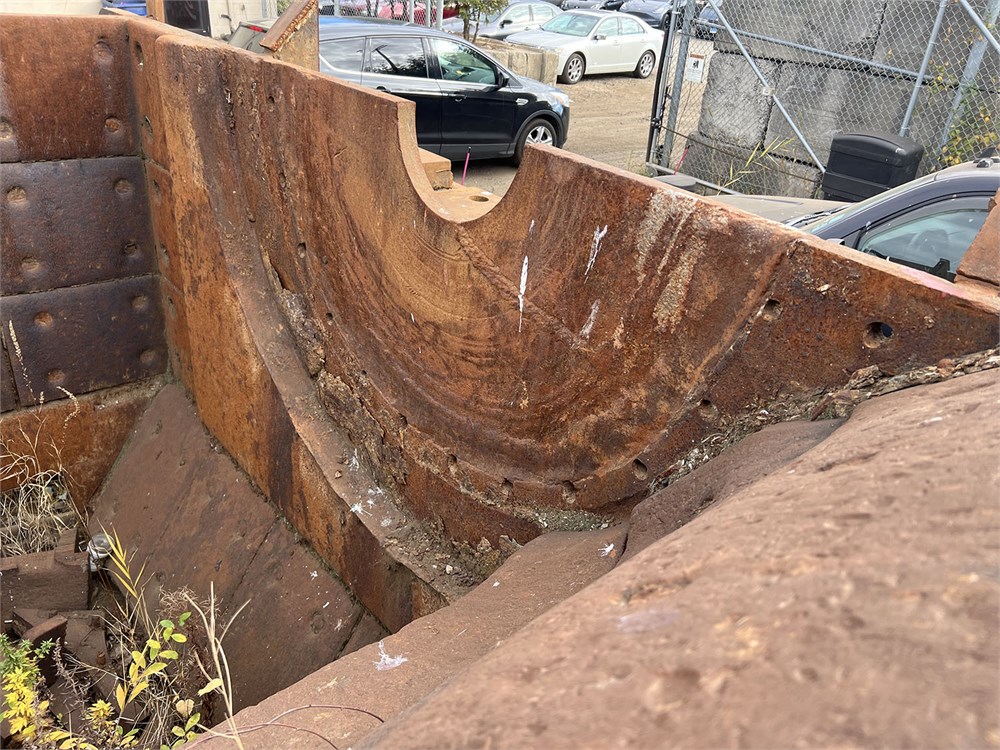

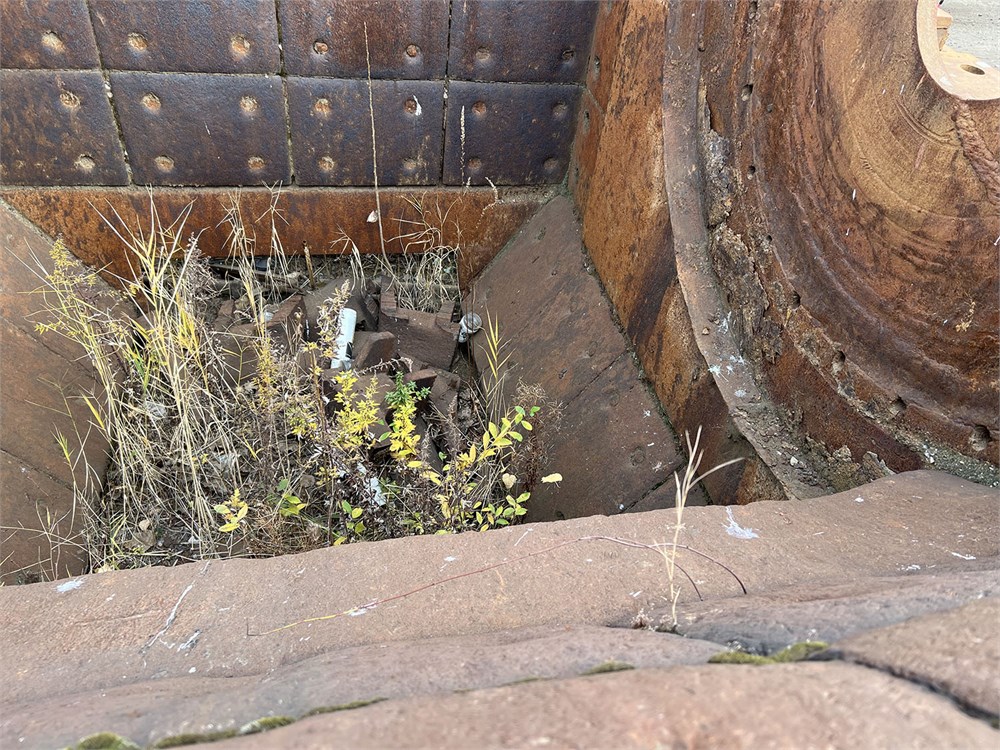

• Complete shredder mill with base, mid-section and top deflector housing. With a complete NEW set of AMSCO wear liners.

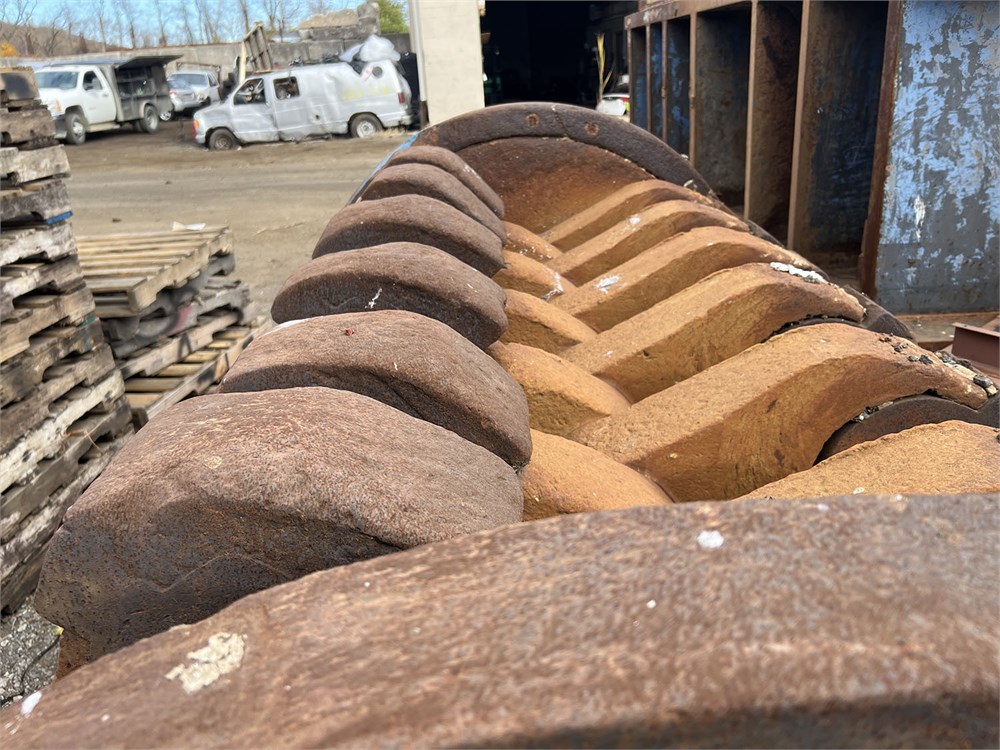

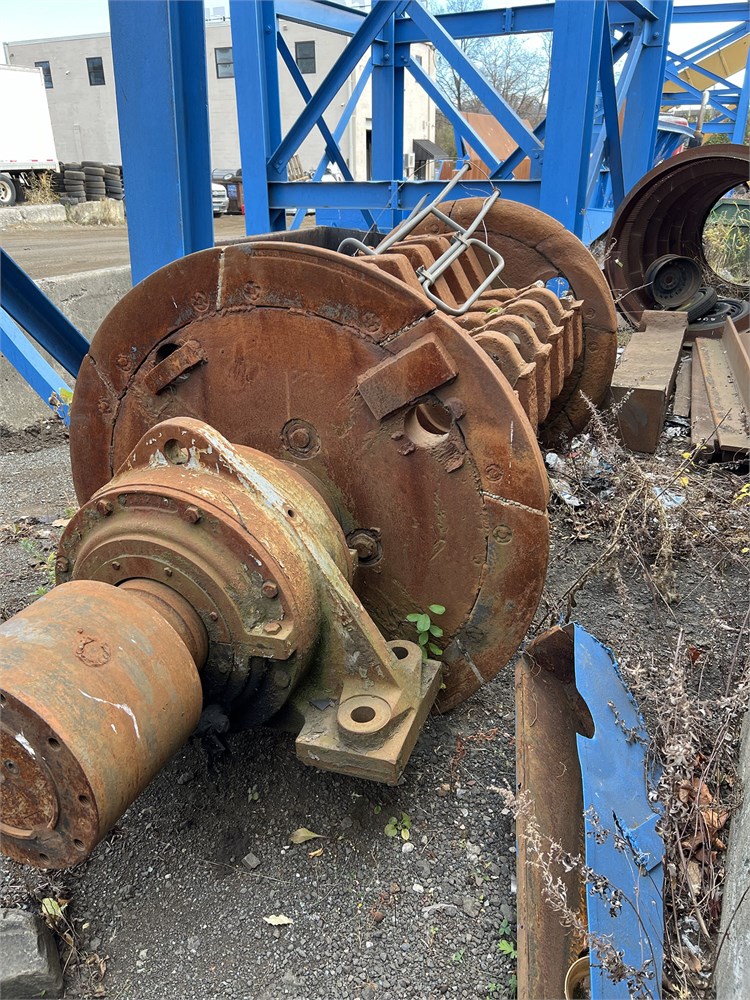

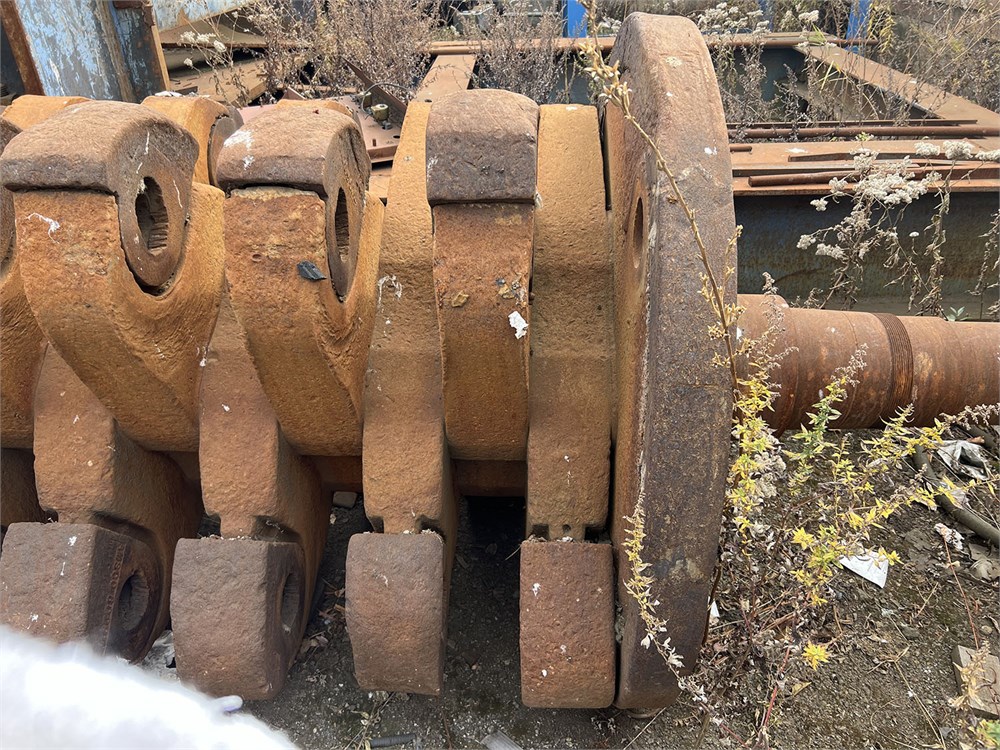

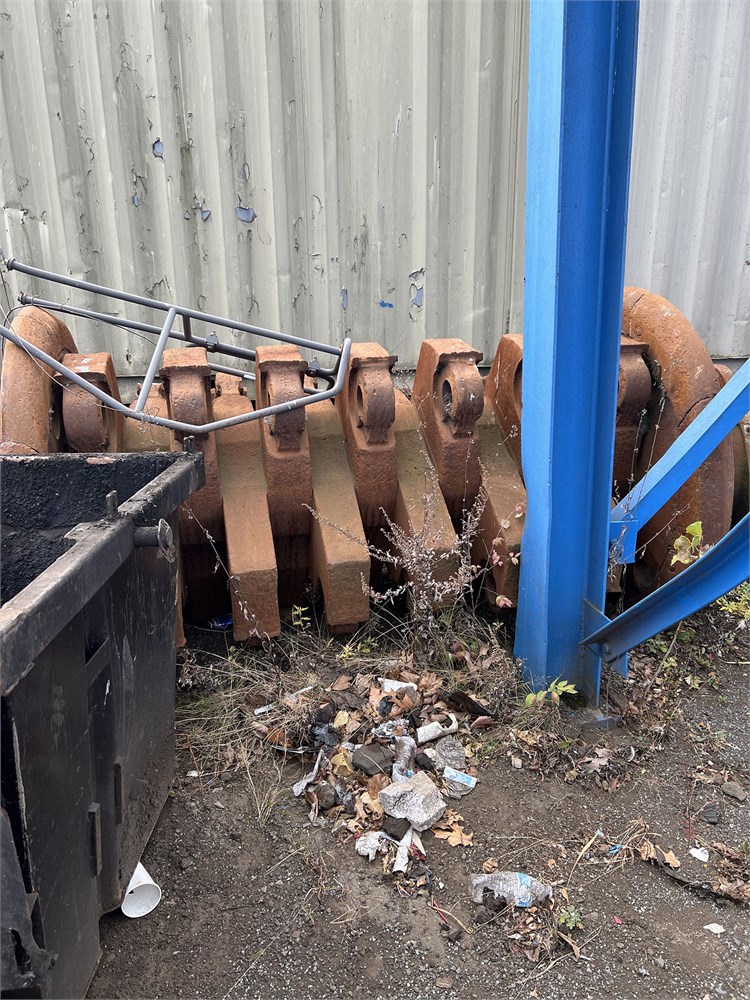

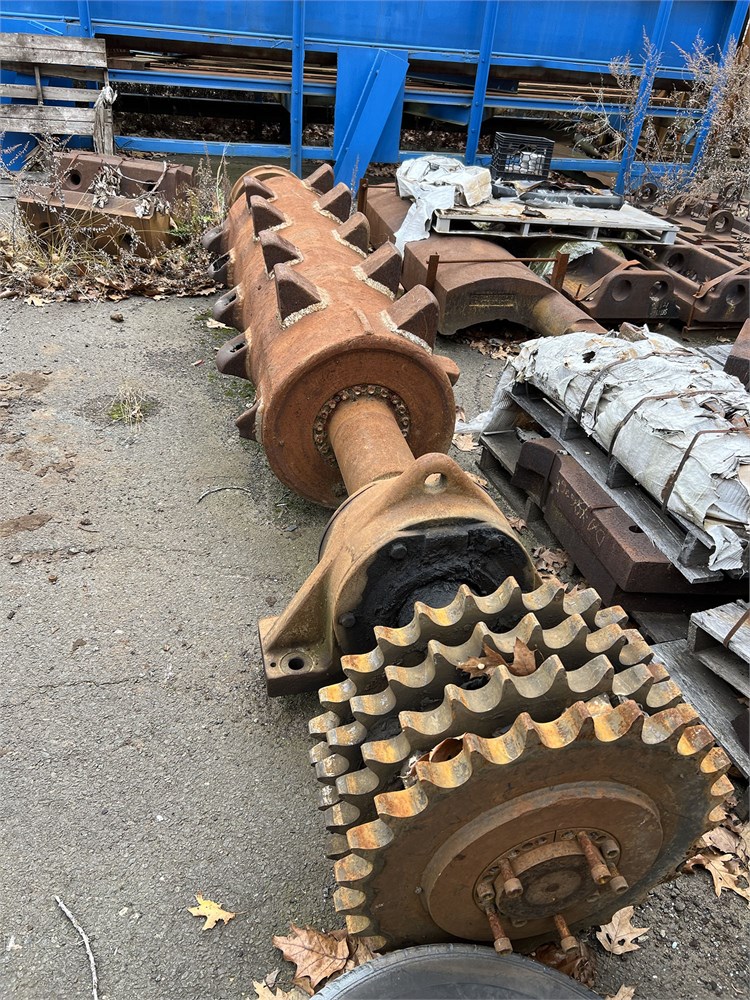

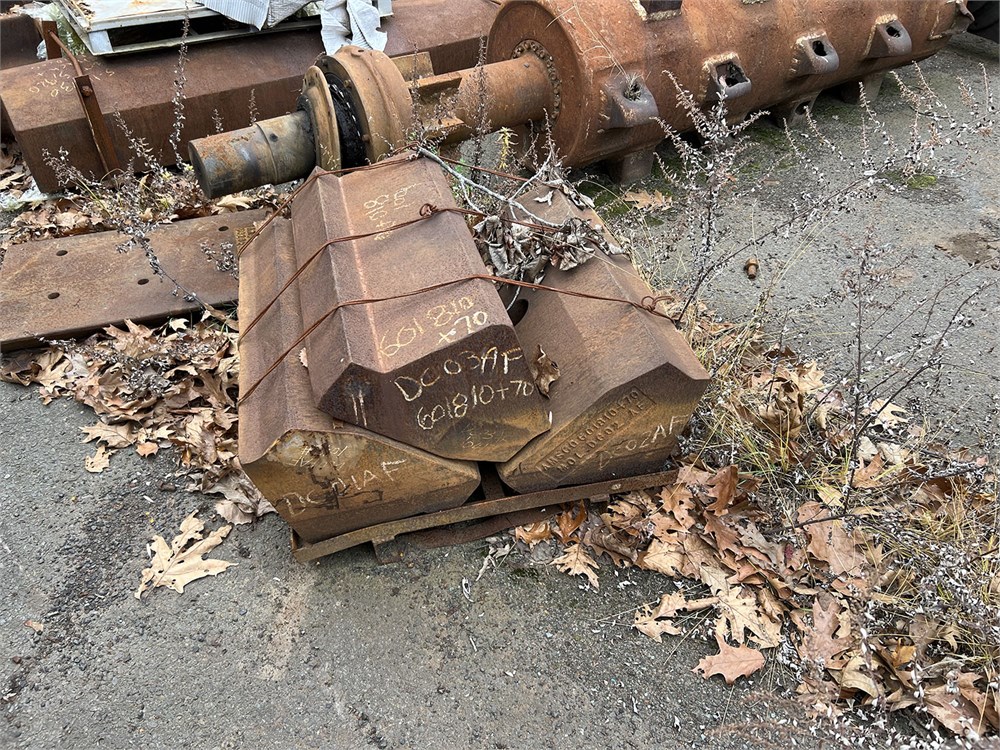

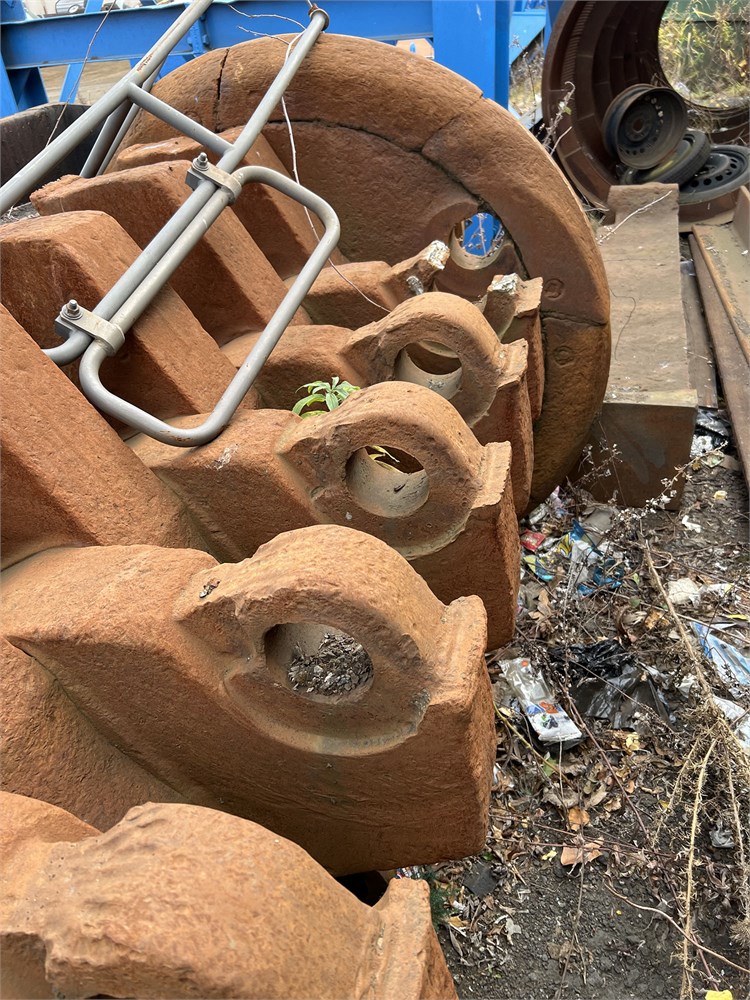

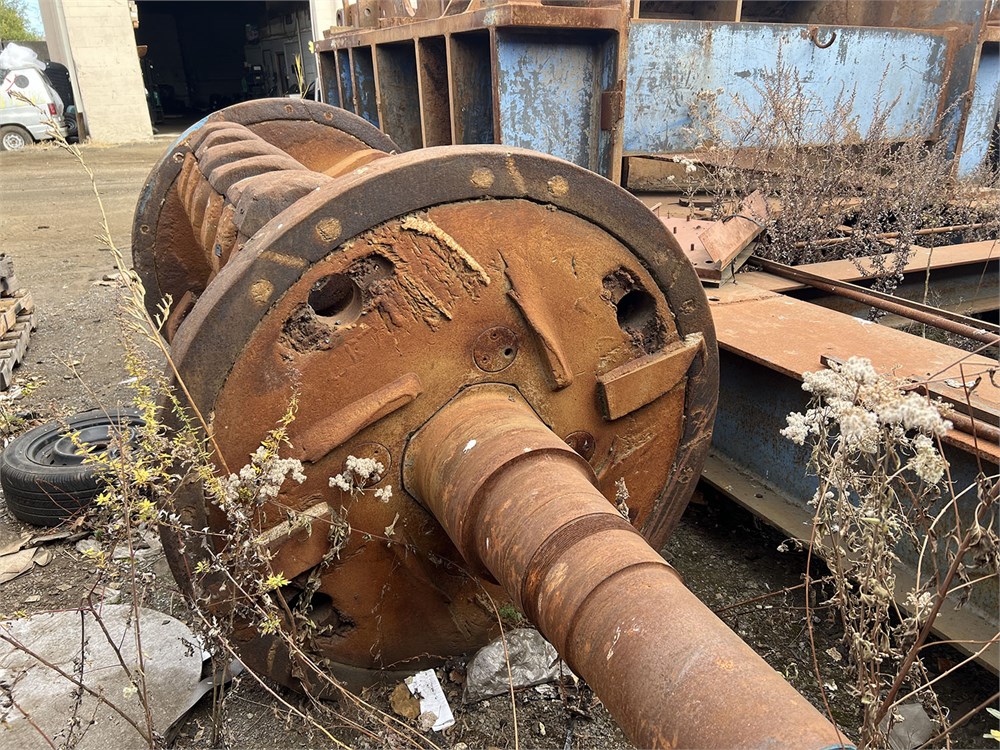

• American Pulverizer spider rotor, bearings and housings, hammers and caps. A used spare spider rotor and bearings and a NEW disc rotor.
• Skid support system with NEW vibration isolation springs.
• 2,000 HP universal u-joint drive shaft with couplings.

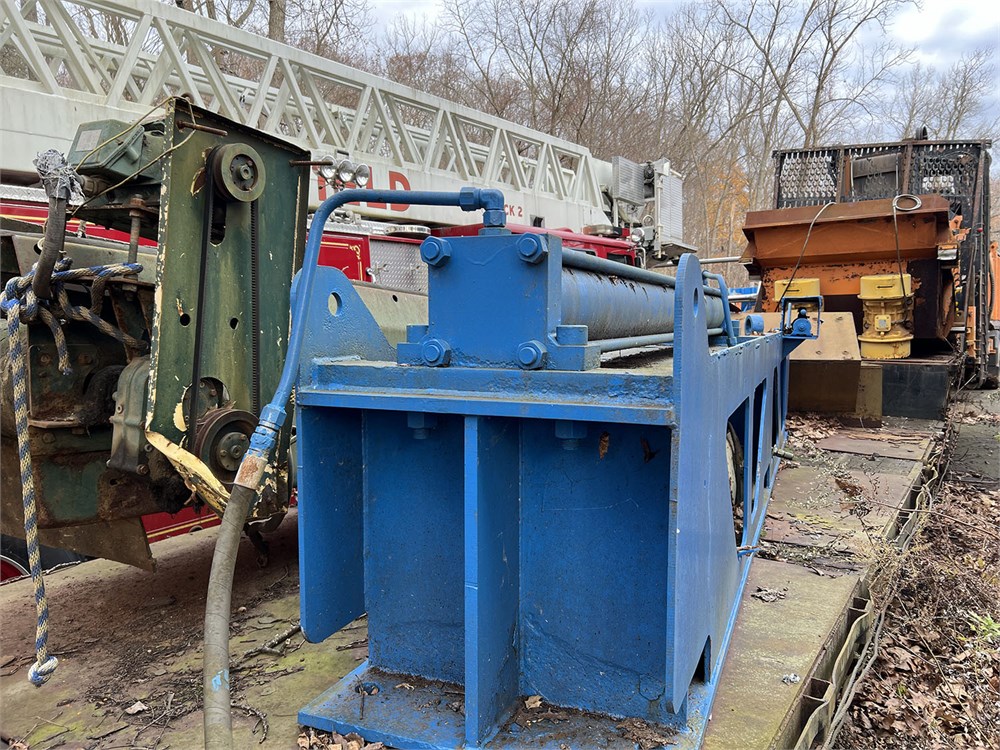

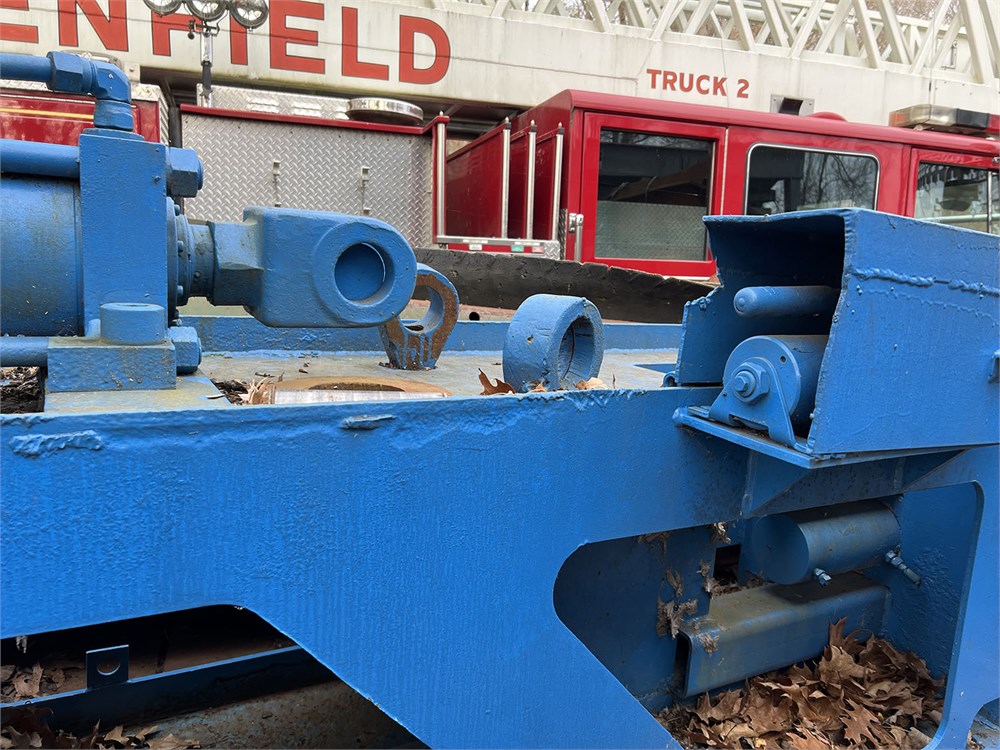

• Hydraulic pin puller with maintenance platform.

3) 2,000 HP WEG A/C drive motor with liquid rheostat, GE Multilin starter, and cooling tower. Motor was REBUILT by AIMS and is stored at their facility in Milwaukee, WI. 4160V 3Phz 60Hz 594 RPM.
4) All PLC electrical control panels for shredder motor, shredder controls, and system controls.
5) REBUILT motor transformer.

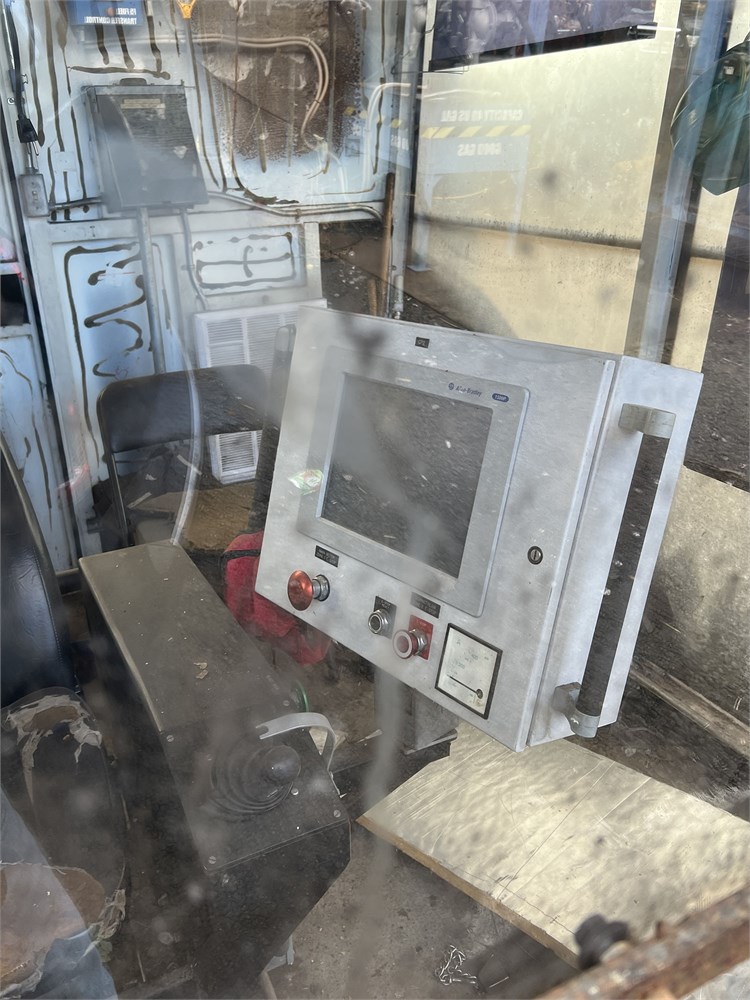

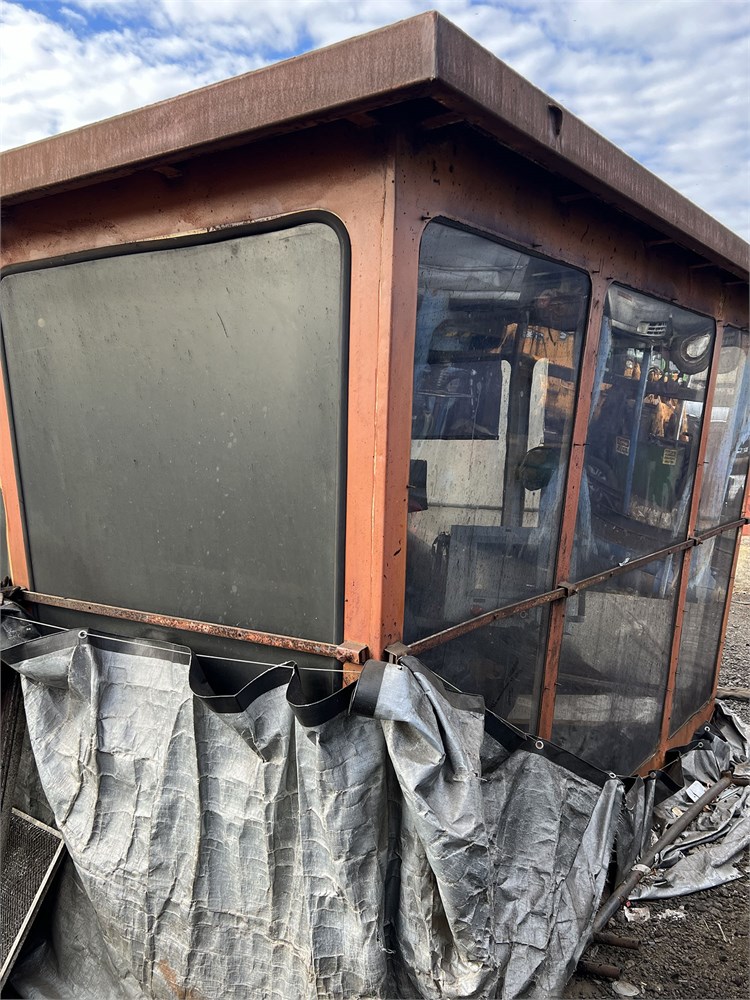

6) Pinnacle Engineering controls and operator control room.

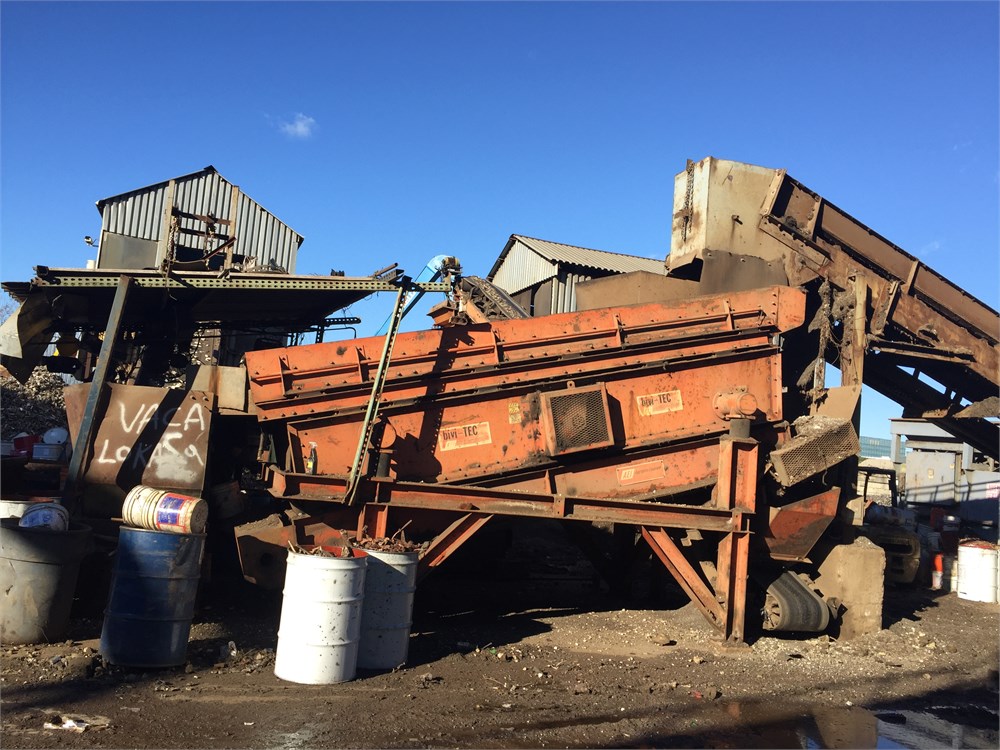

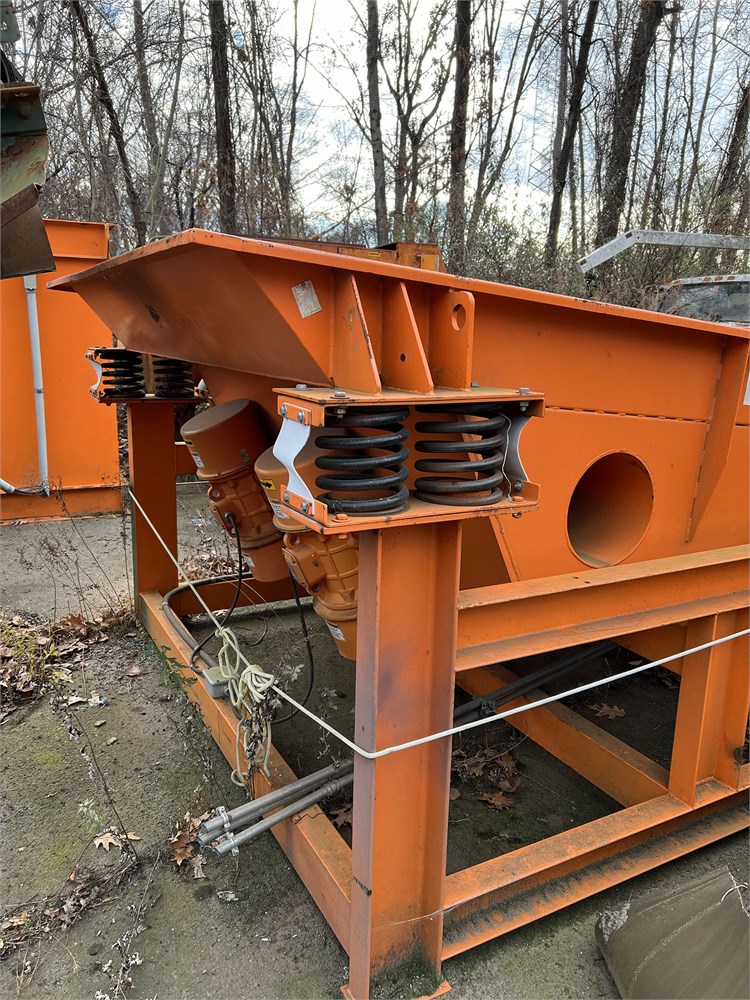

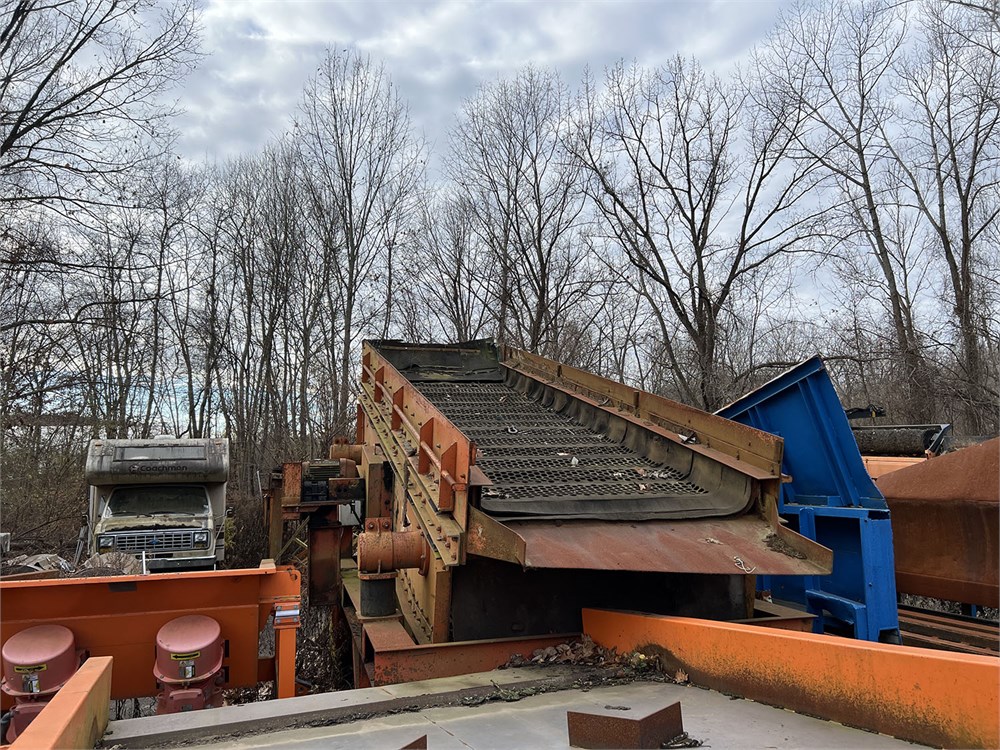

7) Bivitec screening system.

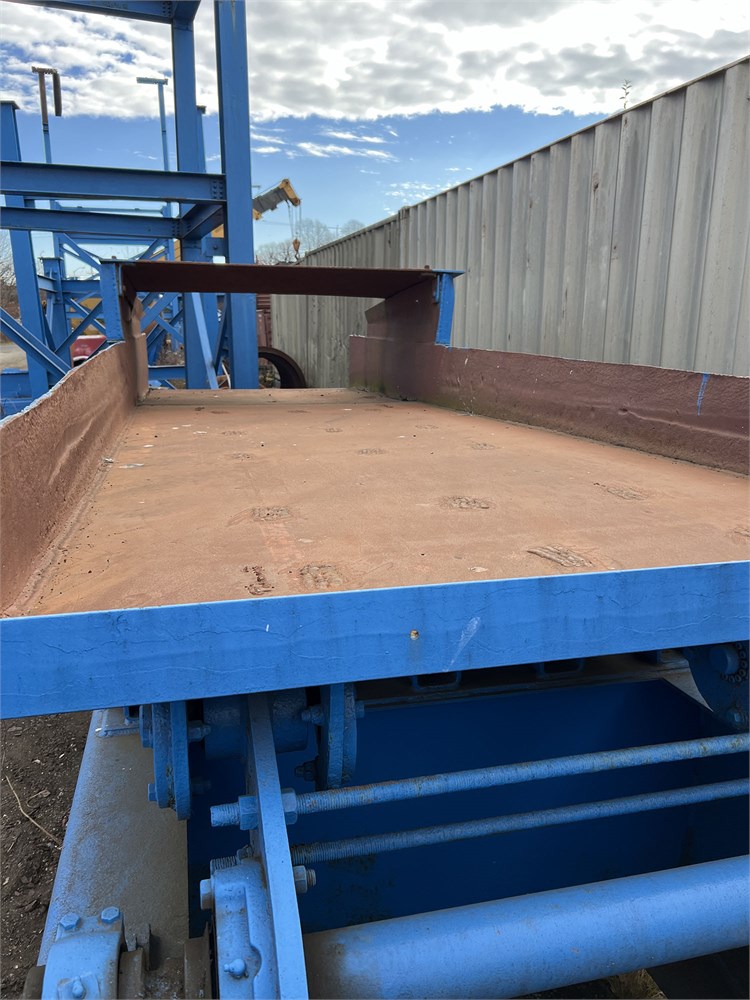

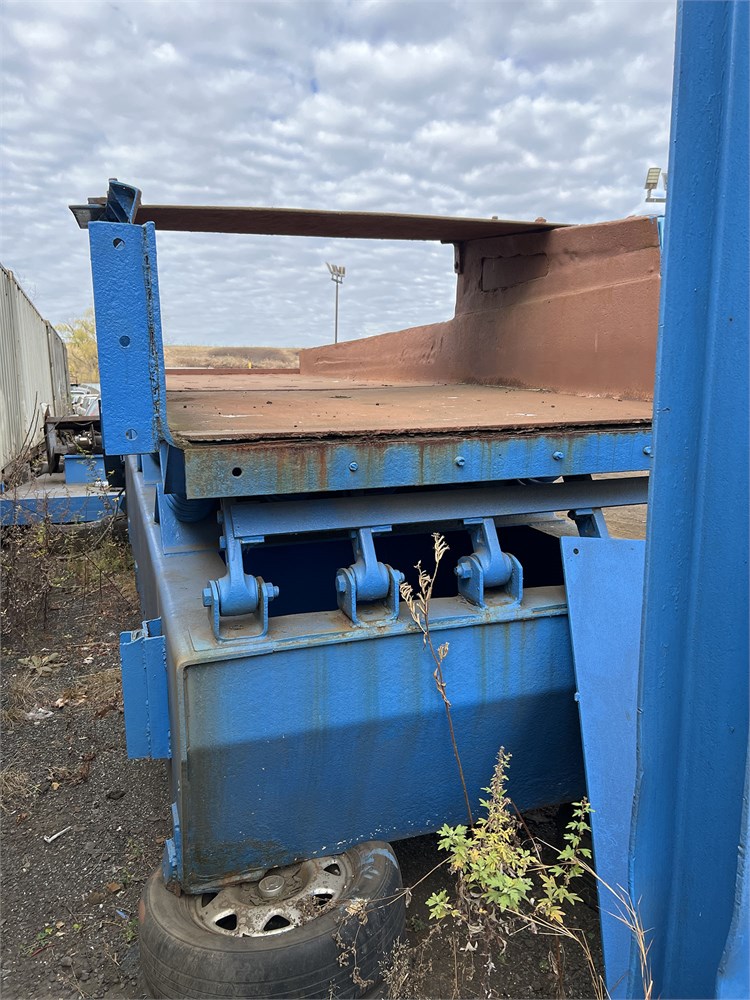

8) REBUILT Hustler under-mill oscillator.
9) REBUILT & tested Eriez dual drum mags with support stands and controls.

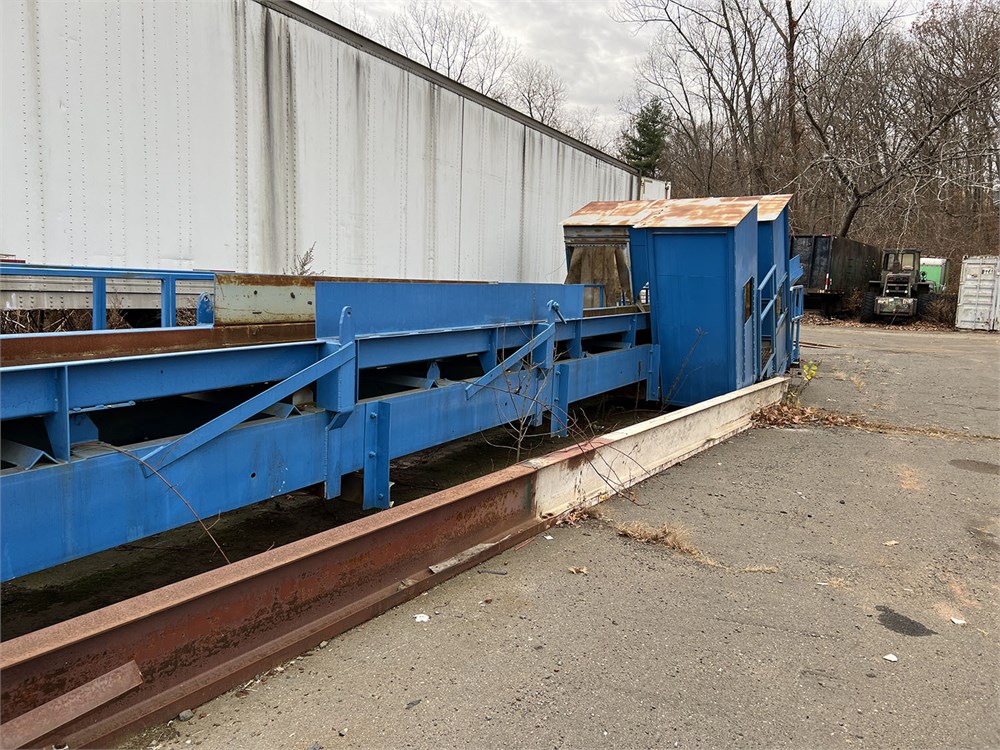

10) Hustler first take away conveyor with catwalks and hand railings.
11) Fluff chute for magnet stand.

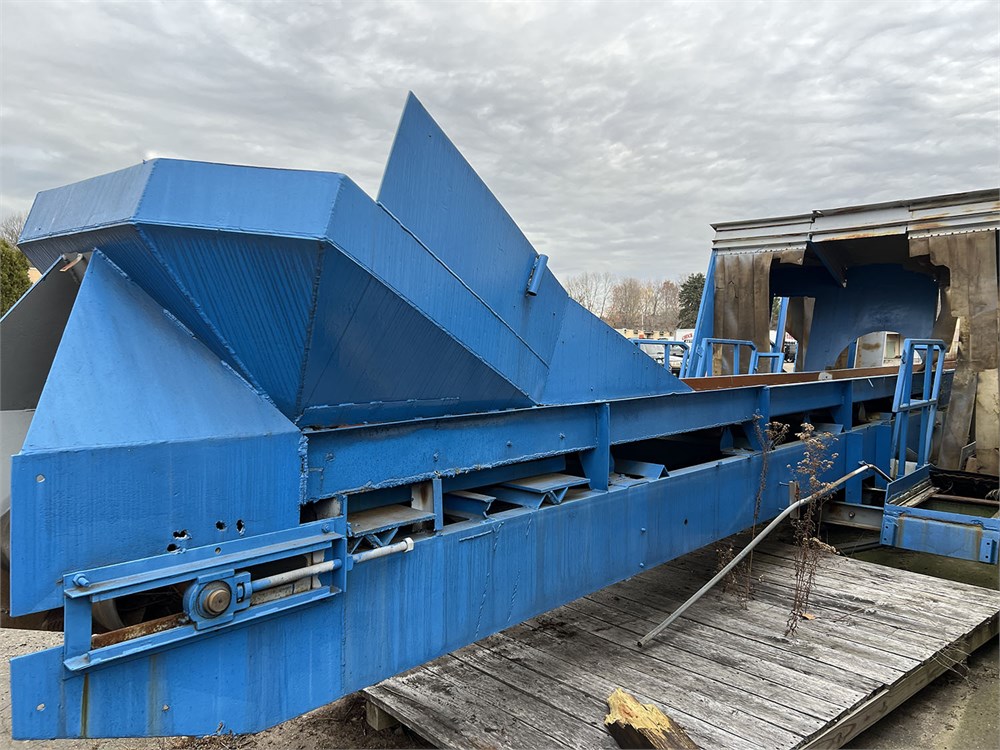

12) Hustler fluff belt with stands and catwalks.

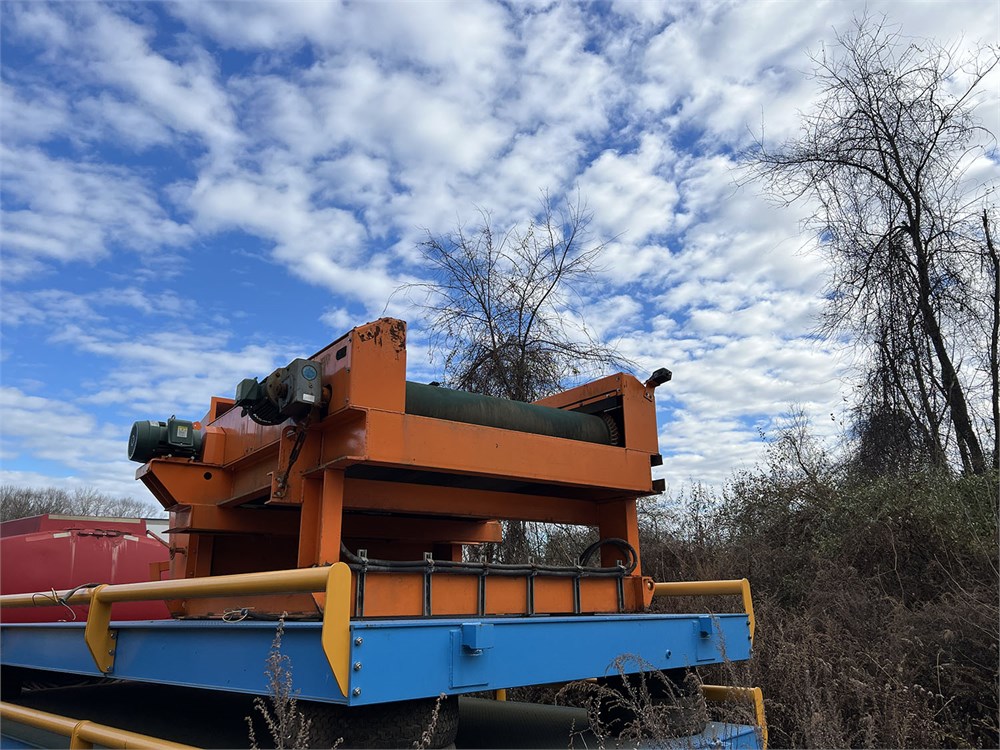

13) 48" X 96" Cross belt magnet for fluff line to picking station.
14) Hustler four-man picking station with stands and catwalks.
15) Hustler ferrous radial stacking conveyor with drive system, catwalks and railings.
16) Five-light night operation package.

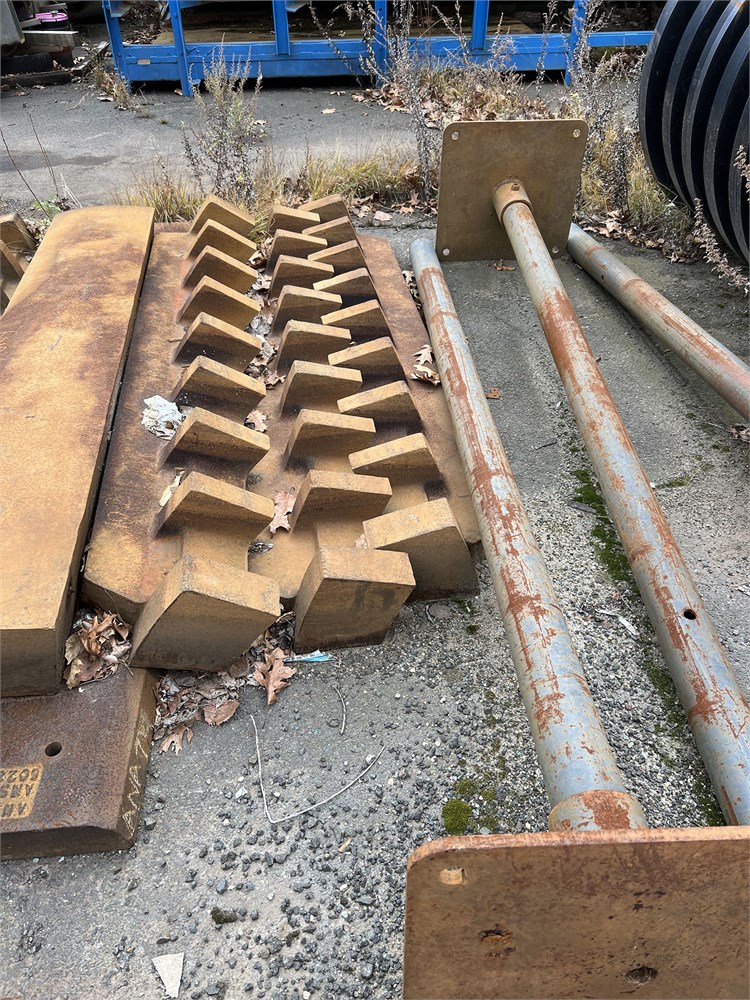

17) Spare parts including:

• Miscellaneous conveyors, platforms, and supports.

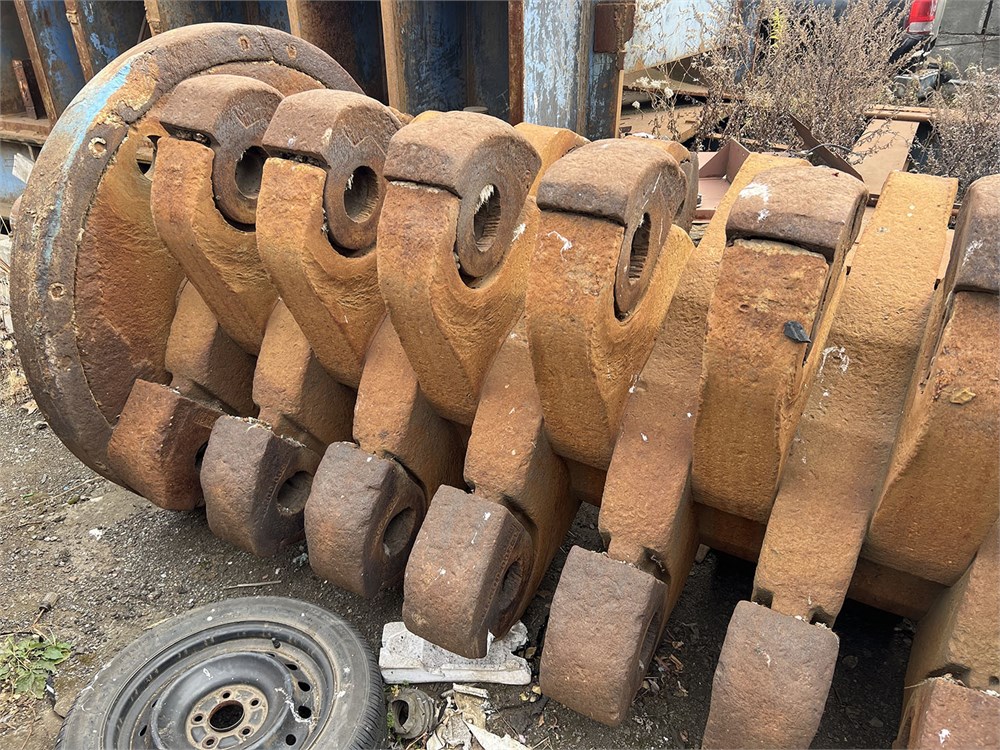

• One used spider rotor & bearings.
• One set of spider caps.
• Eight hammer pins.

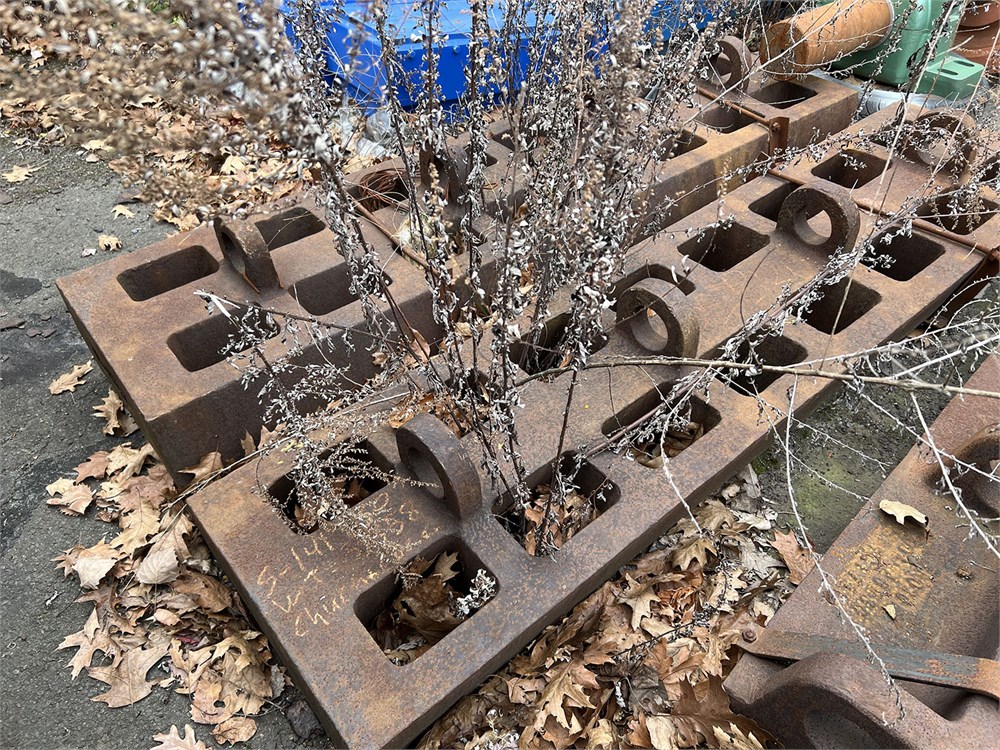

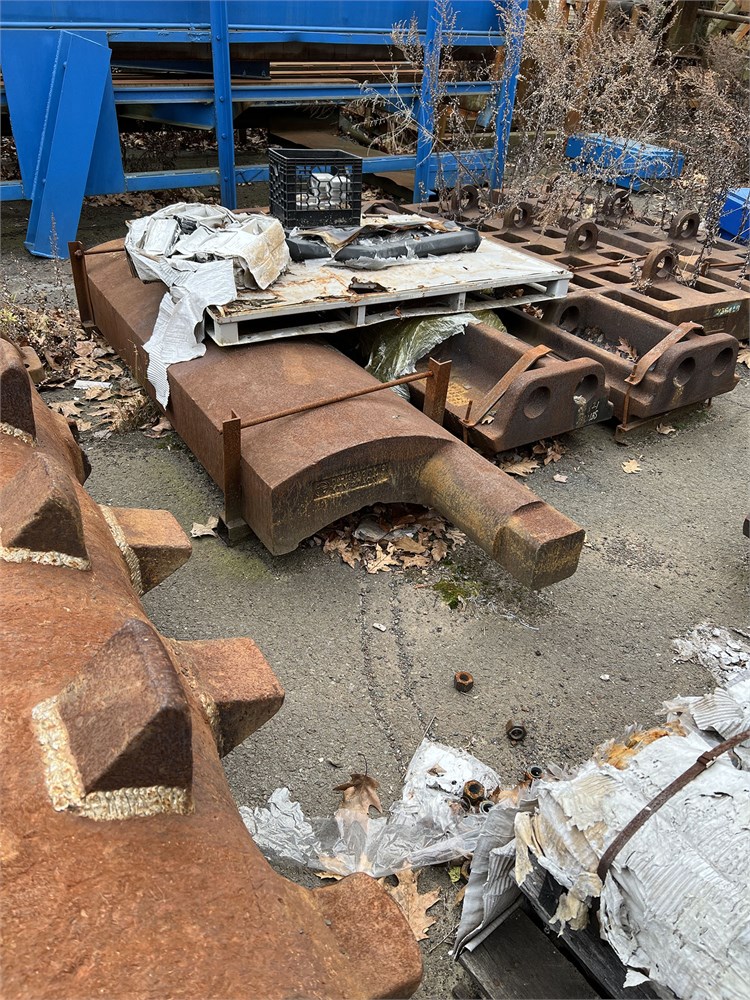

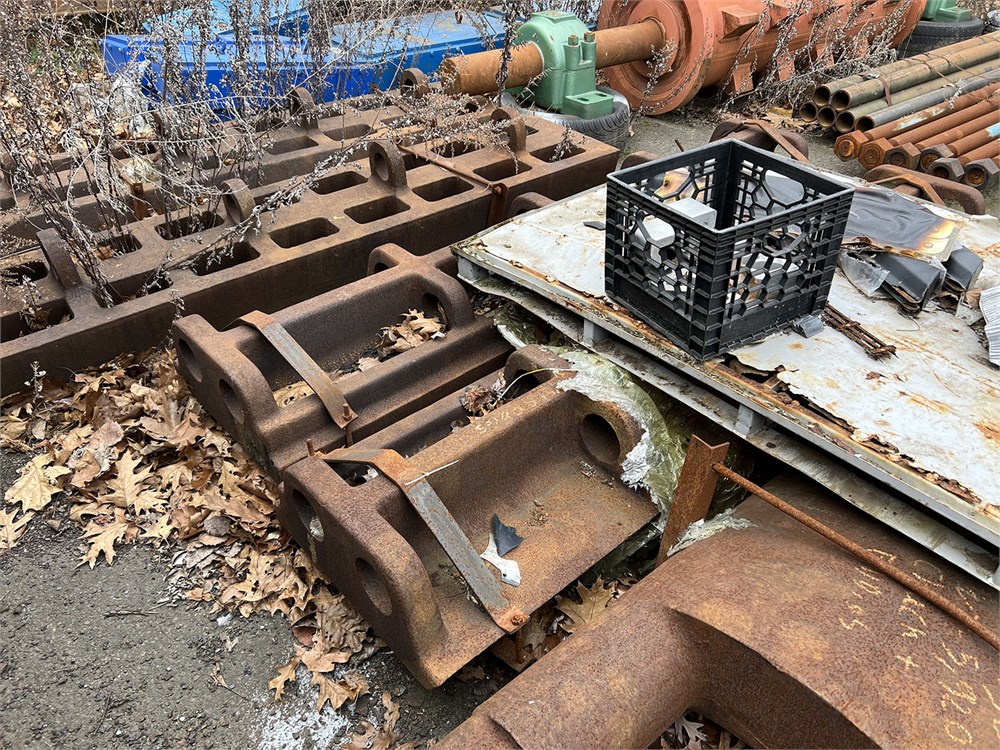

• Two used grate sets.

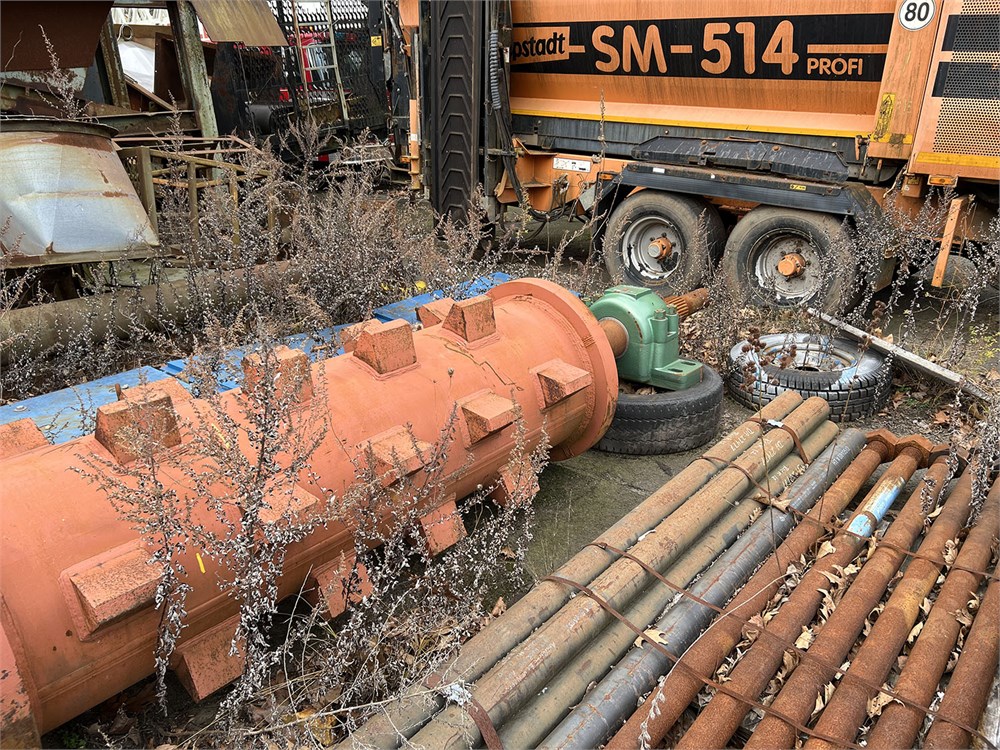

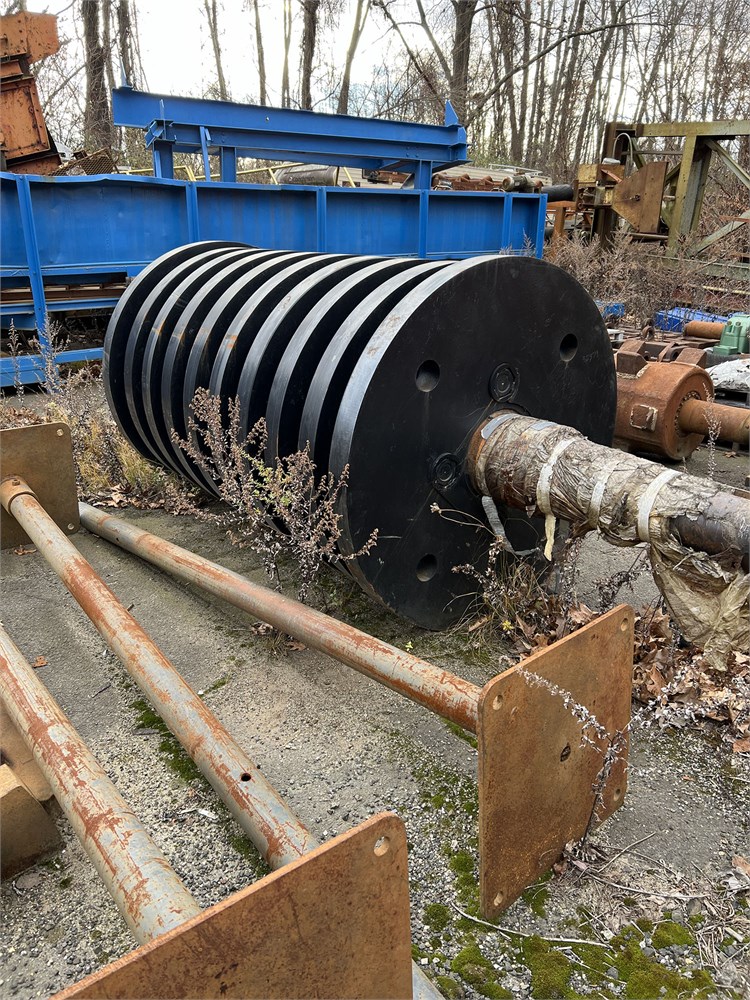

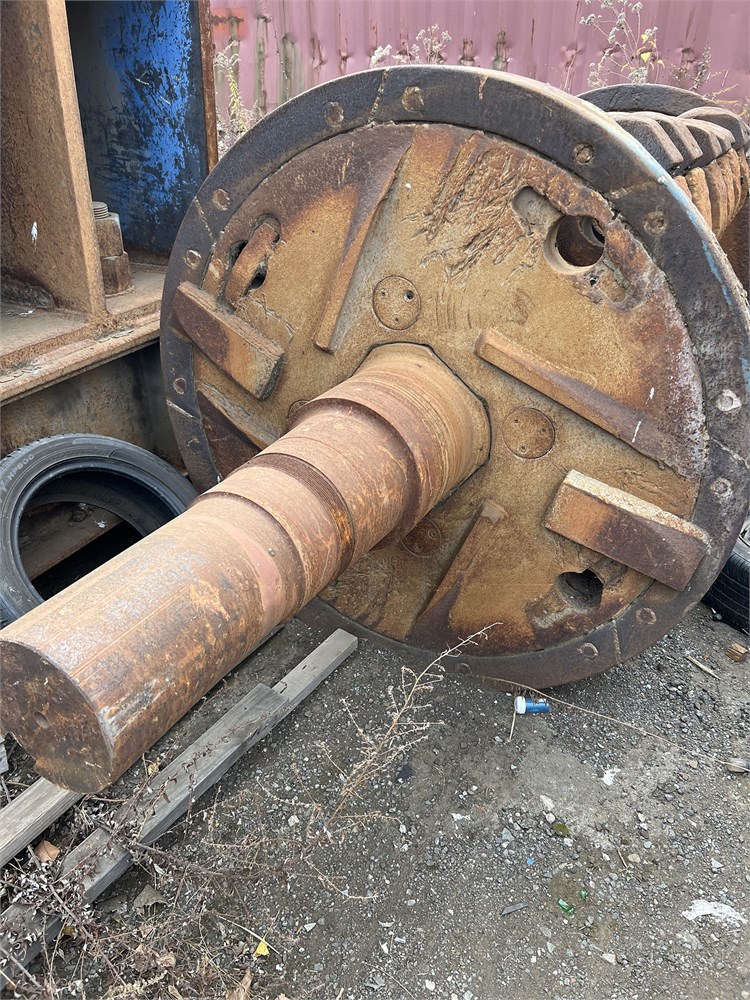

• One NEW DISC rotor.
• One new drive shaft.

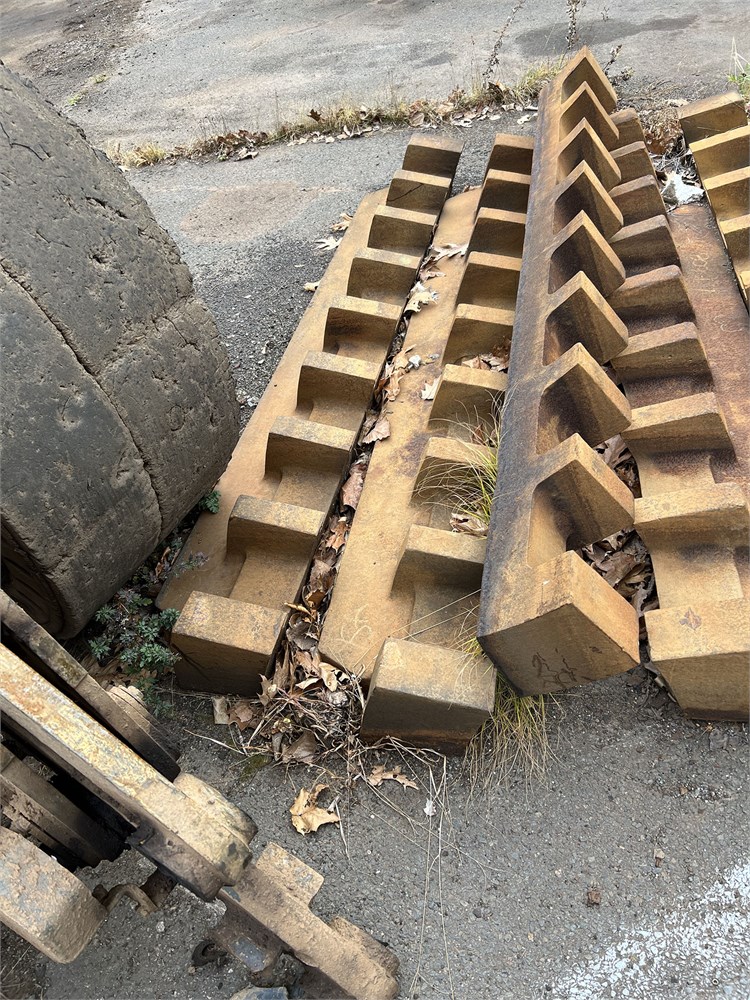

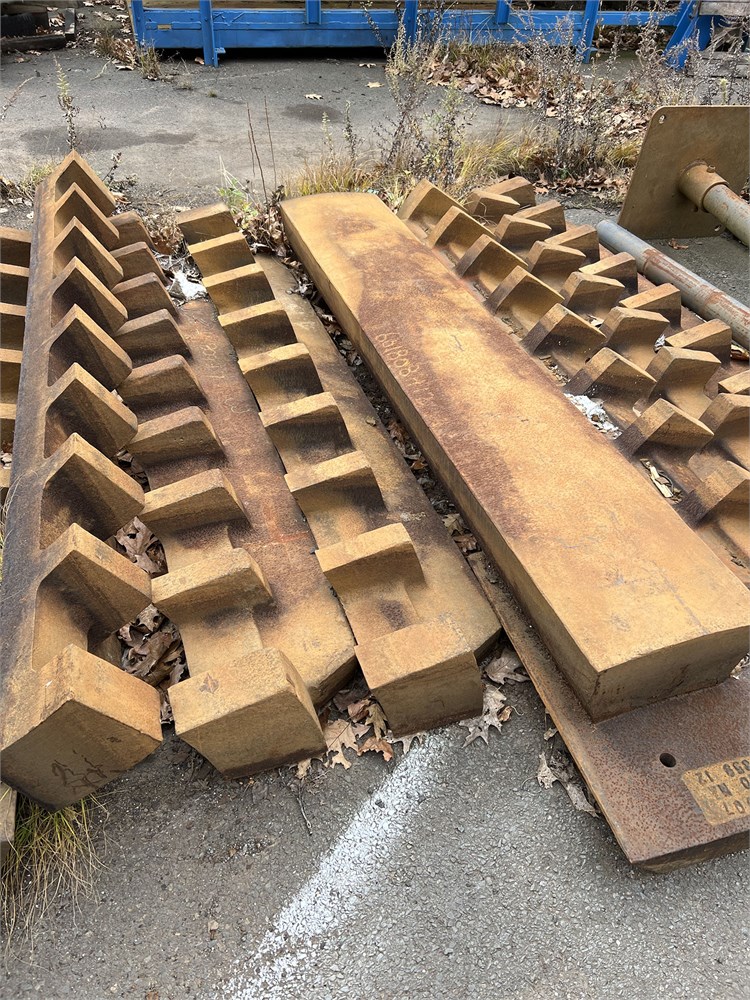

• One set NEW GRATES.

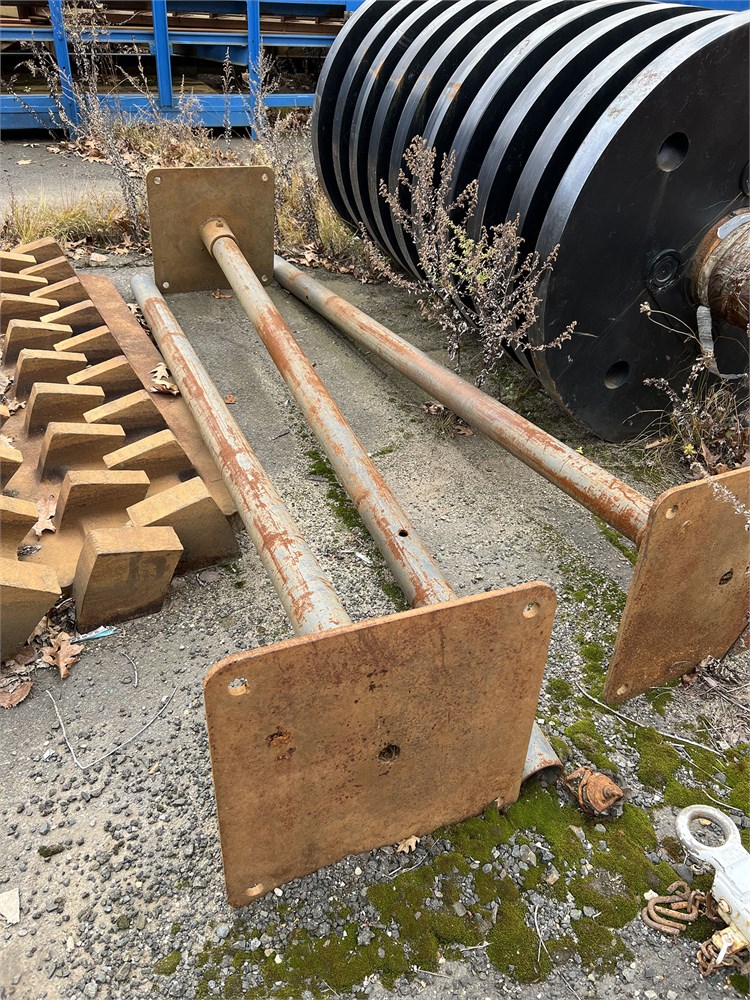

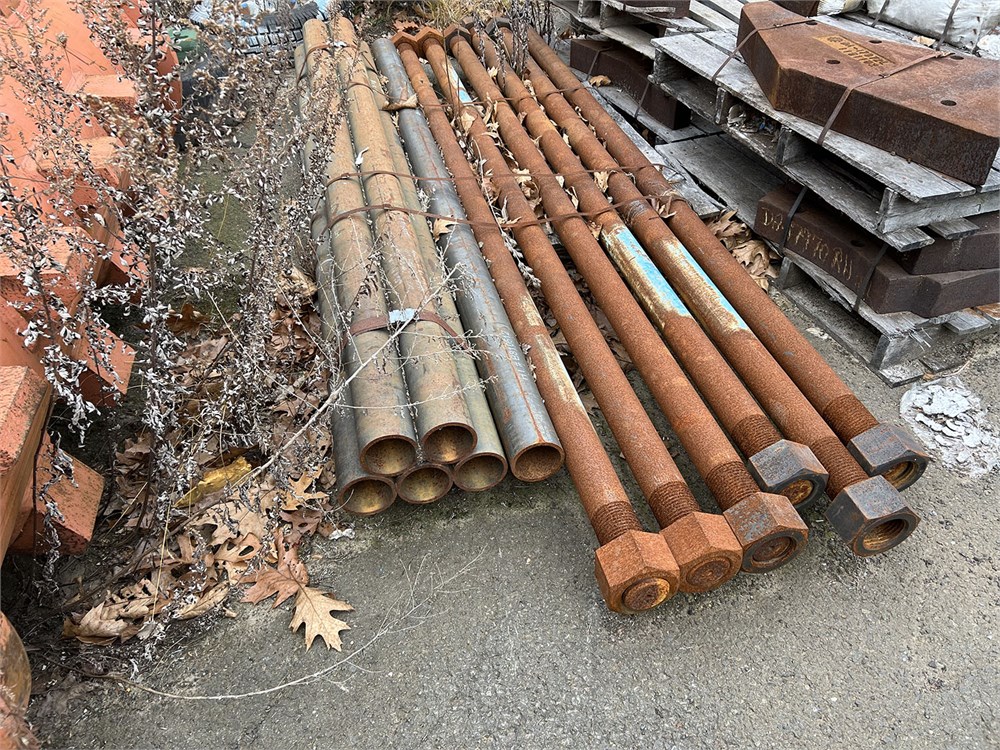

• Six NEW rotor tie bolts.

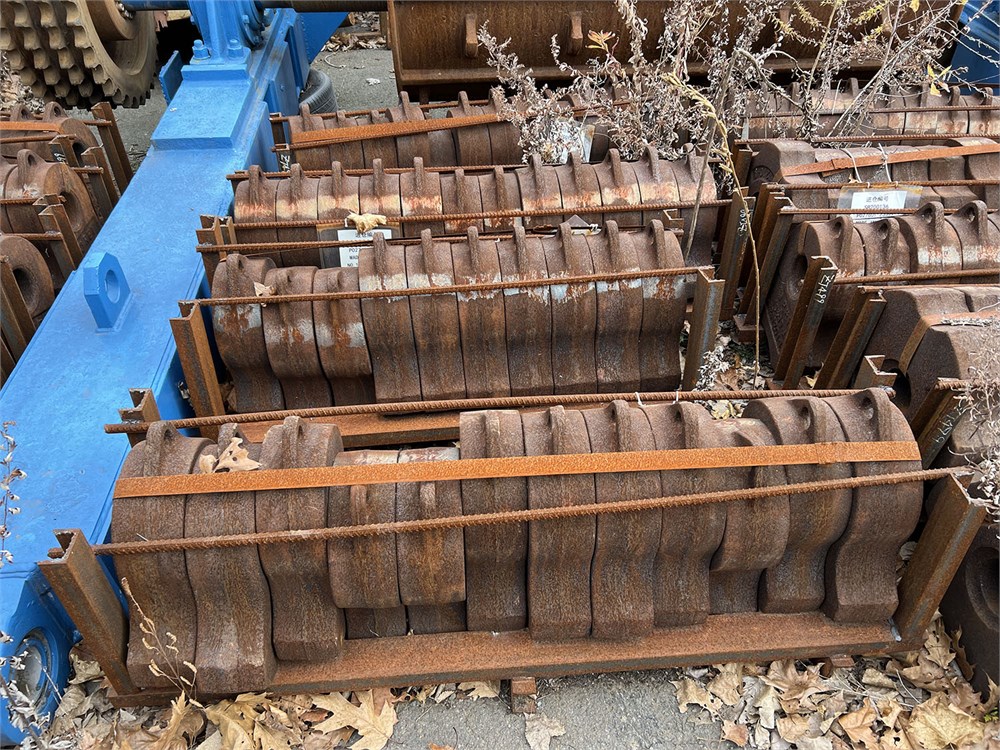

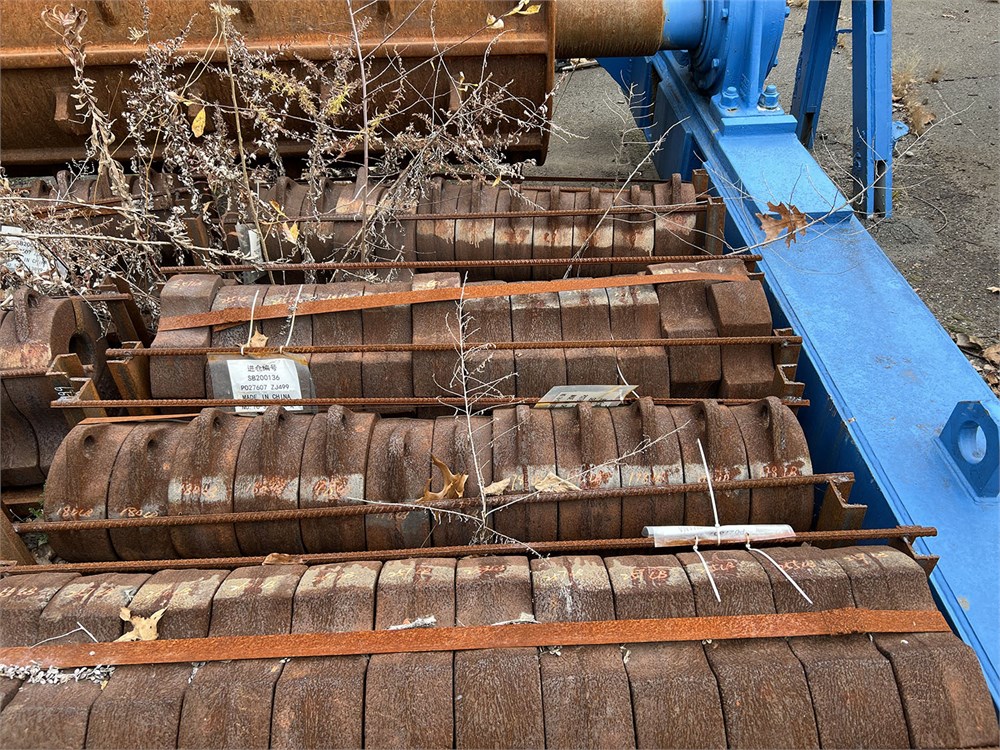

• Several NEW sets of hammers & pin protectors.
• Many additional spare parts too numerous to list.

NON-Ferrous Removal System:

• Eriez 60" eddy current new in 2017.
  • Model 1.5 Meter REVX-E ST-2.
  • Style: 201301785.
  • Serial: 327044.
  • Stands and electrical panel and controllers.
• Eriez 60” fines sort rebuilt in 2017.
  • Model: Fines Sort.
  • Style: 200708895.
  • Serial: 194762.
  • Stands and electrical panel and controller.
• Miscellaneous conveyors.

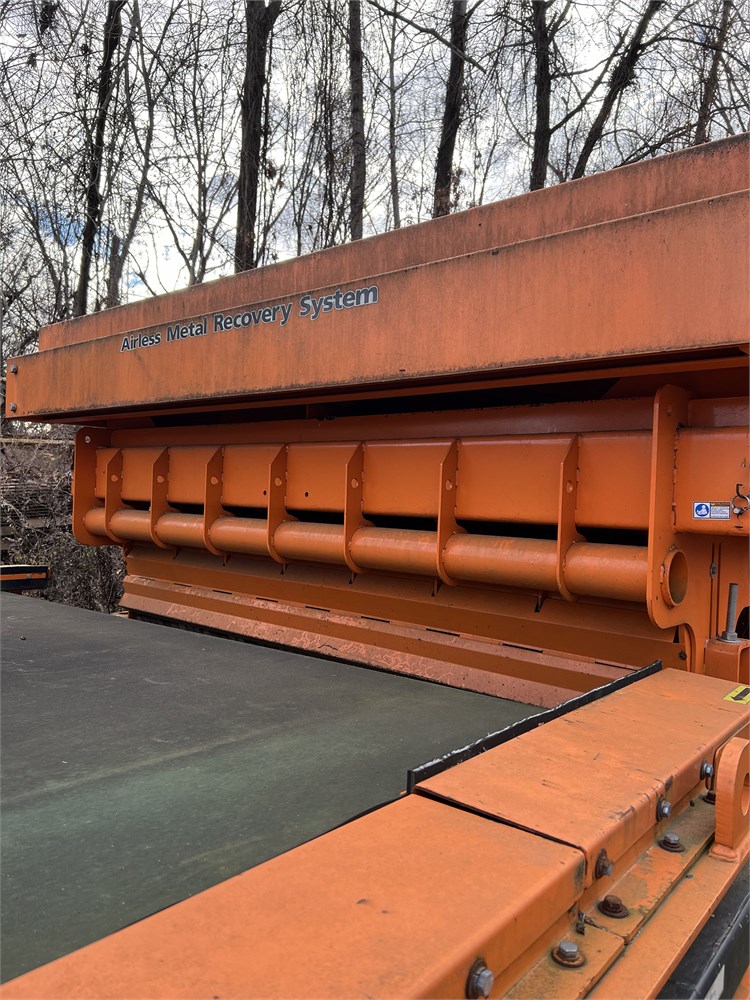

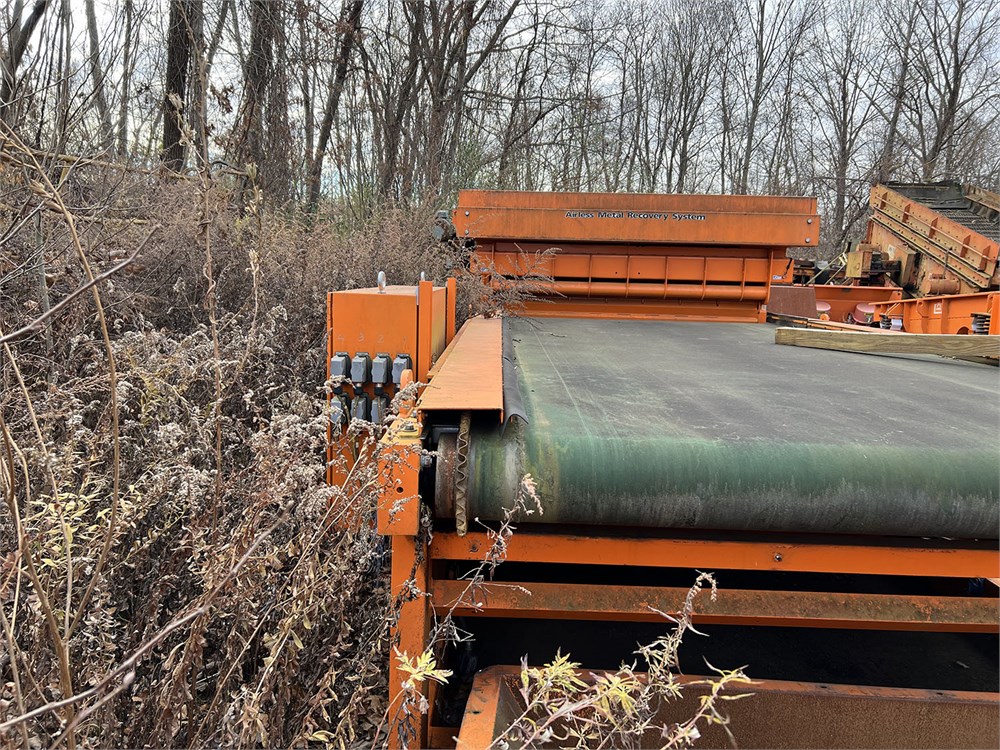

• 2018 Eriez 90” ProSort II Airless sort system.
  • SN: 326710.
  • All stands, control panels, cat walks.

This machine was purchased with the intention of installing it to replace a smaller shredder we are currently running.

Besides the original purchase price, we have invested over $1,000,000 in repairs and new parts, in preparation to install this shredding system.

The sale of this equipment will be restricted to any companies operating in the state of Connecticut.

Selling as-is where-is.
